◆ CHARACTERISTIC
> 100A switching capability.
> Low coil consumption, ultra-low temperature rise.
> Low contact resistance.
> Strong anti-shock and anti-vibration capability.
> Outline size:98 ×41.5 ×37.8mm.
> IEC62052-31 UC3 Compliant.
◆ ORDERING INFORMATION
 | ① Latching Relay |
| ② Part Number | |
| ③ Coil Voltage | |
| ④ D= Double Coil; S= Single Coil | |
| ⑤ 100=100A |
Characteristics
Insulation resistance | 1000MΩ (500VDC) | |
Dielectric Strength | Between Coil & Contacts | 4000VAC 1min |
Between Open Contacts | 2000VAC 1 min | |
Pole & Pole | 4000VAC 1min | |
Operate Time | 30msec. Max. | |
| Release Time | 30msec. Max. | |
Shock resistance | Functional | 98m/S² |
| Destructive | 980m/S² | |
Vibration resistance | 10~55Hz 1.5mm | |
Humidity | 5%~85%RH | |
Ambient temperature | -40~+85℃ | |
Temination | Fast connection | |
Unit weight | 200g | |
Constrution | Dust protected | |

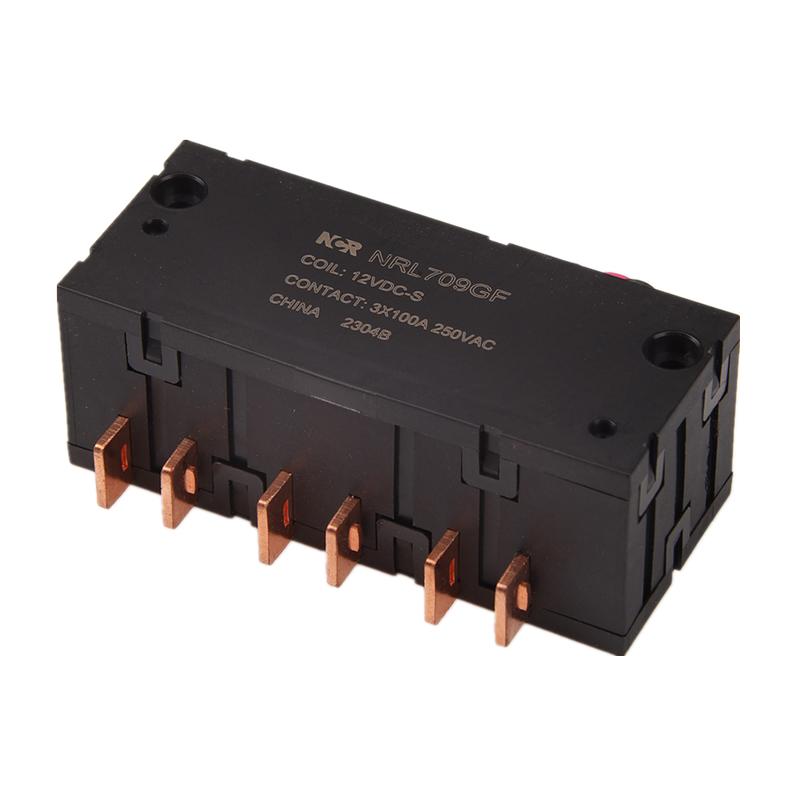

Magnetic Latching Relay
Contact Data
Contact form | 3A/3B |
Contact material | AgSnO2 |
Contact resistance (1A 6VDC) （Test point within 5mm distance from the casing ) | Max: 1.0 mΩ |
Contact Rating | 100A 250VAC |
Max. Switching Current | 100A |
Max. Switching Voltage | 277VAC |
Max. Switching Power | 27700VA |
Mechanical life | 1×105 |
Electrical life ( Resistive) | 1×10⁴ |
Electrical Endurance (@ rated coil voltage)
UC Class | Voltage (Uc) | Current (lc) | ON/OFF time (second) | Power Factor | Electrical Endurance (ops) |
UC3 | 230VAC | 100A | 10s on /20s off | COS ∅ =1 COS∅ =0.5 | 5000 (Total:10000) 5000 |
Coil
Coil power | Single coil:5.0W Double coil: 10.0W |
Coil Data
Rated Voltage | Pick-up voltage | Pulse Duration | Coil Resistance |
Single coil | |||
6 | ≤ 4.5 | ≥ 100 | 7.2±10% |
9 | ≤ 6.8 | ≥ 100 | 16.2±10% |
12 | ≤ 9 | ≥ 100 | 28.8±10% |
24 | ≤ 18 | ≥ 100 | 115.2±10% |
Double coil | |||
6 | ≤ 4.5 | ≥ 100 | 2×3.6±10% |
9 | ≤ 6.8 | ≥ 100 | 2×8.1±10% |
12 | ≤ 9 | ≥ 100 | 2×14.4±10% |
24 | ≤ 18 | ≥ 100 | 2×57.6±10% |
Note: Special ordering for other coil voltage.
Dimensions(mm)/ Circuit Diagram
