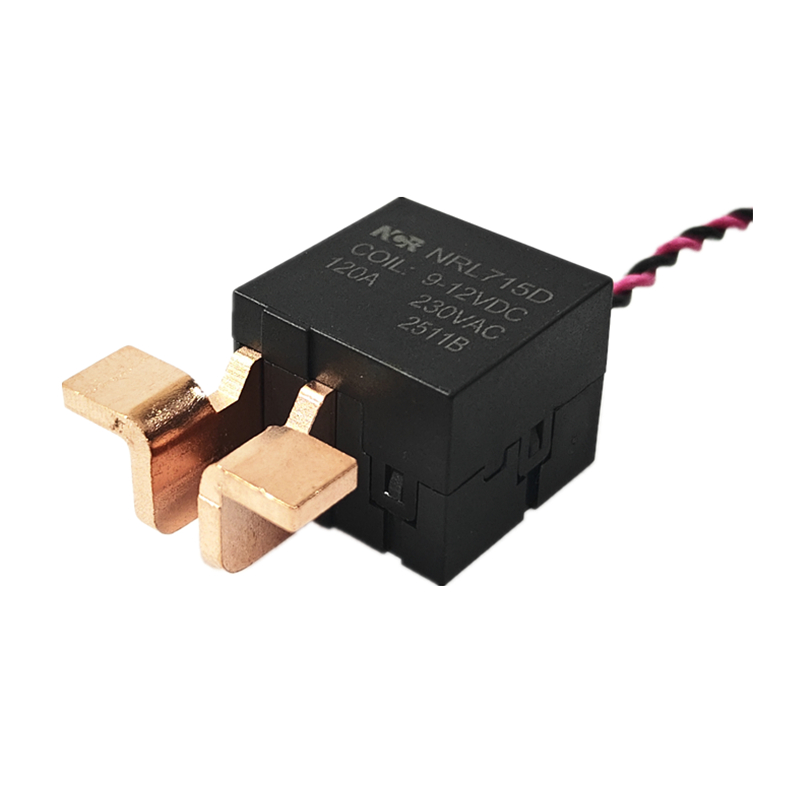

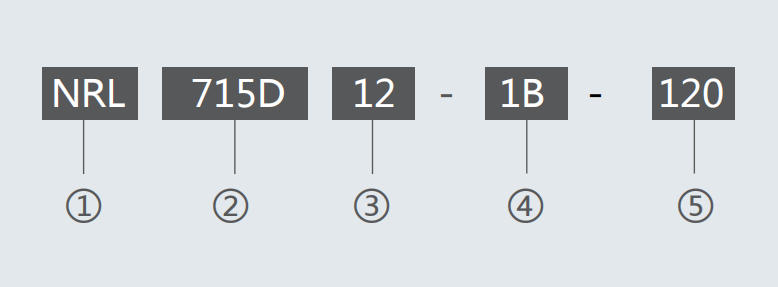

◆ Ordering Information
| ① | Latching Relay |
② | Part Number | |
③ | Motor Voltage | |
④ | 1A= 1Form A; 1B: 1 Form B | |
⑤ | 90=90A;100=100A;120=120A |
◆ Characteristics
Insulation resistance | 1000MΩ (500VDC) | |
Dielectric Strength | Between Motor &Contacts | 4000VAC 1min |
Between Open Contacts | 2000VAC 1min | |
Pole&Pole | ||
Operate Time | 100msec. Max. | |
Release Time | 100msec. Max. | |
Shock resistance | Functional | 98m/S2 |
Destructive | 980m/S2 | |
Vibration resistance | 10~55Hz 1.5mm | |
Humidity | 5~85%RH | |
Ambient temperature | -40~+85℃ | |
Temination | Fast connection | |
Unit weight | 30g | |
Constrution | Dust protected | |
◆ Contact Data
Contact form | 1A /1B |
Contact material | AgSnO2 |
Contact resistance (1A 6VDC) (Test point with 5mm distance from the casing) | Max:0.6mΩ |
Contact Rating | 90A 250VAC;100A 250VAC;120A 250VAC; |
Max. Switching Current | 90A;100A;120A |
Max. Switching Voltage | 250VAC |
Max. Switching Power | 90A ：22500VA100A ：25000VA120A ：30000VA |
Mechanical life | 1×105 |
Electrical life(Resistive) | 1×104 |
◆Motor
Motor power | 9VDC:1.8W; 12VDC:2.5W; |
◆Motor Data
Rated Voltage (VDC) | Pick-up voltage (VDC) | Pulse Duration (ms) | Motor Resistance (Ω) |
9 | ≤ 6.8 | 100-200 | 13±15% |
12 | ≤ 9.0 | 100-200 | 13±15% |
◆Typical Application
1) Prepayment Energy Meter; AMR System;
2) Compound Switch; Automatic Control System.

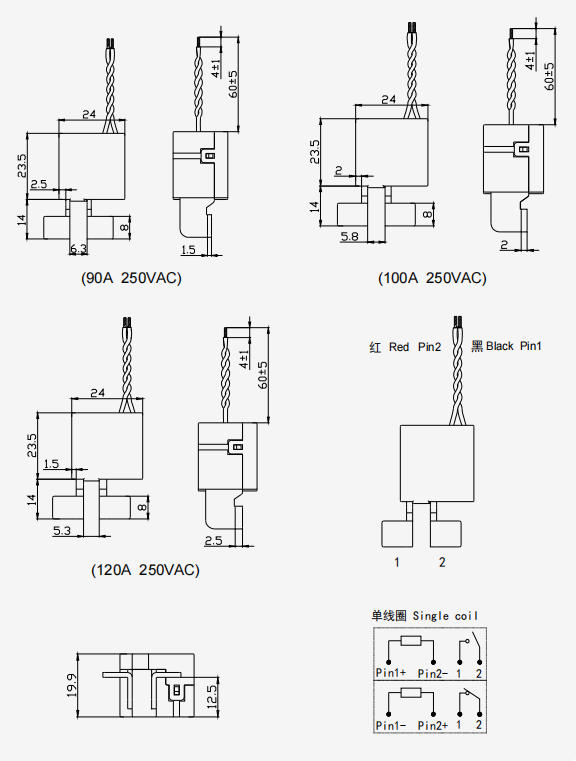

◆Dimensions(mm)/ Circuit Diagram
