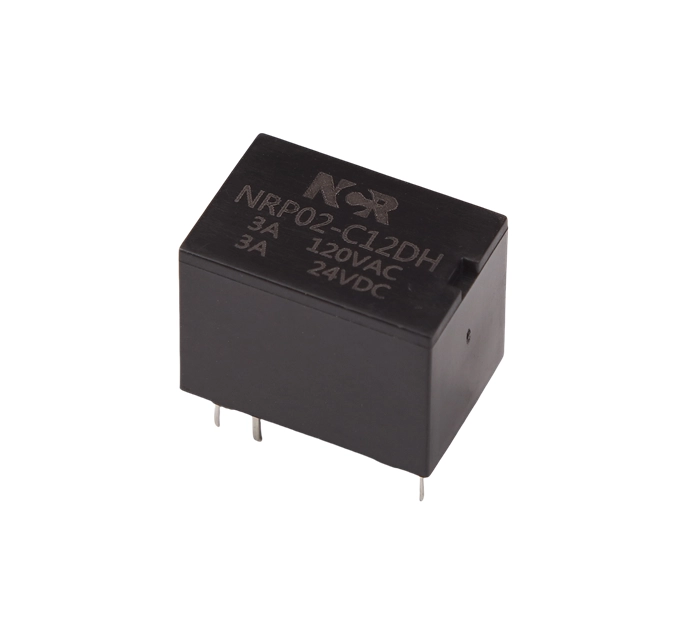

You must match relay coil voltage to the rated value within its tolerance for proper operation. Too low a voltage fails to actuate the relay. Too high a voltage damages the coil. The coil generates electromagnetic force to move contacts. This force depends on the voltage level. Your control signal directly determines reliable switching.
Relay coil voltage determines the magnetic field strength inside an electromechanical relay. When you apply this electrical potential, current flows through the coil winding. The current creates a magnetic field around the core. This field attracts the armature, a movable metal piece. The armature moves, pushing the contacts from their resting state to the opposite position. Understanding how does a relay work starts with this direct relationship: coil functionality depends on the applied energy level controlling mechanical movement.
Coil functionality depends entirely on matching the applied value to the relay's rated specification. A mismatch causes premature failure even when the relay is not defective. As current energizes the coil, the winding stores energy in the magnetic field. When you remove the control signal and de-energize the coil, that stored energy must dissipate. Without a flyback diode across the coil, the collapsing field induces a high-value spike. This spike can damage your control circuitry or the relay driver. Always install a flyback diode to protect your control components.
All electromechanical relays have two critical thresholds. The pull-in voltage is the minimum level to actuate the relay. Below this level, the magnetic force cannot overcome the return spring tension. The contacts stay in their default position. The drop-out level is the point where the relay releases. When coil excitation falls below this threshold, the spring force overcomes the weakening magnetic field. Contacts then return to their original state.
These two thresholds are not equal. The drop-out level is always lower than the pull-in voltage. This hysteresis prevents contact oscillation around the switching point. If you gradually change coil excitation, you extend the unstable period where the armature hovers between positions. This unstable stage accelerates mechanical wear and reduces relay endurance. For reliable operation, apply a level that decisively exceeds the pull-in threshold and remove it quickly for clean drop-out.
Coil excitation level directly influences contact reliability. When the applied value is too low, the magnetic force may not fully close the contacts. This partial closure causes contact bounce and arcing. Arcing erodes the contact material, leading to welding or premature failure. When the applied level is too high, the magnetic force slams the armature into the core with excessive impact. This impact causes mechanical fatigue and contact bounce, both degrading switching performance over time.
Proper coil energization ensures that the armature moves cleanly and contacts mate with minimal bounce. This clean action preserves the contact surfaces and maintains low contact resistance. You achieve this by selecting a relay whose rated coil specification matches your control level within the stated tolerance. Always verify the coil excitation with a multimeter before installation and during troubleshooting. Electromechanical relays provide reliable service when you respect these fundamental operating principles.
Every relay carries a specified relay coil voltage rating from the manufacturer. This rating, such as 5 VDC, 12 VDC, or 24 VDC, defines the nominal value for reliable actuation. You must match your supply value to this rated number within the stated tolerance band. Tolerances typically range from ±5% to ±10% of the nominal value. A 12 VDC relay with ±10% tolerance operates reliably between 10.8 VDC and 13.2 VDC. Outside this window, performance degrades.
Many selection projects fail when engineers consider only the nominal coil rating and contact current. The actual application imposes additional constraints. Switching requirements, load type, environmental temperature, and form factor all influence reliability. For example, a device switching an inductive load requires different consideration than one switching a resistive load. Ambient temperature affects coil resistance and thus the effective coil voltage and current reaching the winding. A hot environment raises coil resistance, reducing flow for a given applied level. This reduction may drop the magnetic force below the pull-in threshold.
You must verify that your control source delivers a level within the tolerance range at all times. Power supply regulation, line losses, and load transients can shift the actual level at the coil terminals. A supply that reads 12 V at the output may sag to 11.2 V at the coil under load. Always measure the level at the coil terminals during the worst-case operating condition.
Switching characteristics depend on proper level matching. When the control value sits near the lower tolerance limit, the magnetic force is weaker. The armature may not close decisively, causing contact bounce and arcing. When the control value sits near the upper limit, the magnetic force is stronger. This force slams the armature into the core, increasing mechanical stress and reducing service life. Design your control circuit to deliver a level near the center of the tolerance band for optimal performance.
Undervoltage occurs when the applied coil voltage falls below the rated minimum. The magnetic field may be insufficient to pull in the armature. The device may fail to actuate, or it may chatter as the armature oscillates near the threshold. Chatter causes rapid contact opening and closing, generating arcing that erodes contact material. An under-voltage protection relay is a specialized device that monitors coil level and disconnects the load at a preset threshold. Standard electromechanical relays do not provide this protection.
Overvoltage occurs when the applied coil level exceeds the rated maximum. An excessive level drives higher current through the coil winding. This current generates excess heat, degrading the winding insulation over time. The heat also increases coil resistance, affecting the coil characteristics. Eventually, the insulation may fail, causing a short circuit or open coil. Overvoltage also increases the mechanical impact force, accelerating wear on the armature and contact assembly.
When selecting a relay for your application, consider more than just the rated coil level and contact current. Evaluate the load requirements. Examine environmental conditions, including the ambient temperature range. Choose a type that matches your control circuitry and load profile. These factors collectively determine the reliability, performance, and service life in your system.
Coil voltage describes the control input of a relay. Contact rating describes the circuit being switched. These two specifications remain separate and independent. You cannot infer one from the other. A DC coil operates reliably with various switching ratings. The control side drives the electromagnet. The switching side handles the load. Each requires independent verification during design. Many technicians mistakenly assume matching ratings. Always treat the coil specification and the contact switching specification as distinct parameters.
You must select the relay coil voltage to match your control circuit output. Your control signal must fall within the rated tolerance. Meanwhile, select the contact rating to match your load requirements. A 12 VDC coil can achieve switching on 240 VAC contacts. The two values share no direct relationship. The electromagnetic system and the contact system function independently. Verifying each specification separately prevents operational failures. Manufacturers provide detailed datasheets for each electromechanical relay model. These datasheets list coil ratings and switching specifications side by side. Use these documents during your selection process.
Install a relay only after measuring the coil voltage at its terminals. Compare this value against the rated tolerance. When troubleshooting, follow a systematic approach.
Common symptoms include burned contacts, intermittent operation, and relay clicking without load success. For contact issues, perform a voltage-drop test while the relay carries normal current. A high reading indicates excessive resistance. For coil issues, measure the coil resistance with a multimeter. An open-circuit reading indicates a broken coil winding. An unusually low reading indicates a shorted winding. Both conditions require relay replacement. For intermittent operation under load, perform the voltage-drop test again. This test reveals high resistance that only appears under real current flow. For chattering or failure to actuate, measure the control path directly at the coil terminals during the event. A clicking sound does not guarantee healthy switching. You must test contacts under real load conditions to confirm proper switching operation. These diagnostic steps apply to all electromechanical relays.
Keep relay coil voltage within its rated tolerance for reliable actuation. A low level causes chatter or complete failure. An excessive level generates heat and shortens service life. Coil and contact ratings remain independent—select each separately for your application. Always verify the control level at the terminals before installation and during troubleshooting. This control step ensures your electromechanical relay provides dependable operation.
Selecting the correct relay requires more than matching a coil voltage. You also need to consider the contact rating, switching load, operating environment, switching frequency, and required service life. NCR provides a range of relay products designed for different electrical control and switching applications.
NCR offers solutions covering electromechanical relays, solid state relays, time relays, relay modules and sockets, automotive relays, and other relay-related components. These products can be used in industrial control systems, automotive electrical systems, power equipment, automation equipment, and other applications where reliable switching is required.
When selecting a relay, engineers should first confirm that the relay coil voltage matches the control circuit. As discussed in this article, an undervoltage condition can cause chatter or failure to actuate, while excessive coil voltage can generate heat and reduce service life. The contact side should then be selected independently according to the load type and switching requirements.
NCR can also support projects that require different relay configurations and electrical specifications. By evaluating coil requirements, contact ratings, load characteristics, installation conditions, and application requirements together, you can select a relay solution that better fits your system.
For applications involving industrial automation, automotive electronics, power control, or other switching systems, NCR provides relay products for different control and load requirements. If you are evaluating relay options for a new project, you can explore NCR's relay solutions and product specifications.
A low coil voltage below the pull-in threshold causes your relay to chatter. The electromechanical relay cannot hold the armature steady. This generates rapid switching contact opening. Use precise control pulses for relay switching.
Measure relay coil terminals during operation. Compare the voltage reading against the rated tolerance. A multimeter ensures accurate control circuit diagnosis for electromechanical relays. Verify control and switching load.
Your relay draws excess current from excessive supply. Heat degrades insulation. Impact increases relay switching contact wear on your relay. Proper control voltage prevents damage. Use accurate control specifications.
