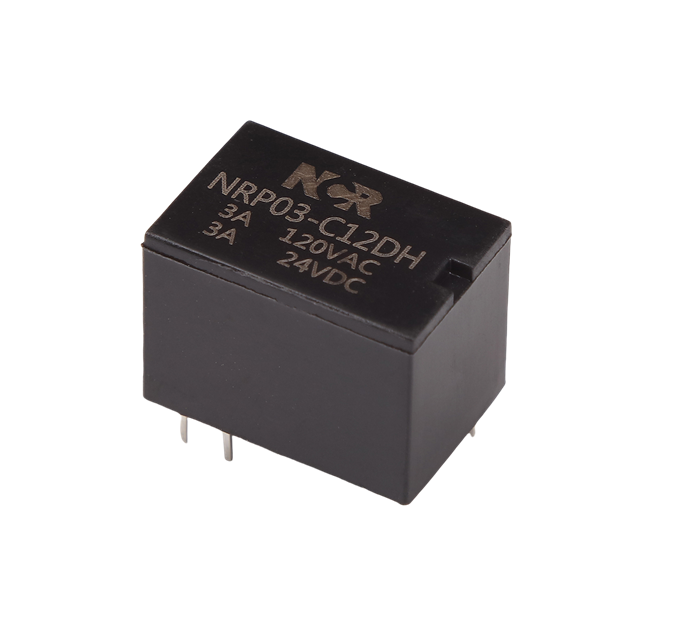

● Ultra-small type with dimensions.
● High sensitivity:200mW coil power
● UL/C-UL recognized
● Sealed type available
| CONTACT | CHARACTERISTICS |
| Arrangement 1A/1B/1C | Operate Time 6 ms. Max. |
| Contact Material AuAg | Release Time 4 ms. Max. |
| Contact Resistive ≤ 100 mΩ | Initial breakdown voltageBetween Coil & Contact 1000VAC (50/60Hz)for 1 min.Between Open Contacts 500VAC (50/60Hz)for 1 min. |
| Rating 3A 125VAC/24VDCResistive load (cosφ=1) 3A 250VAC/30VDCInductive load (cosφ=0.75) 0.3A 120VAC/24VDC | |
| Insulation Resistance Min.100MΩ (500 VDC) | |
| Max. Switching Voltage 250VAC / 60VDC | Shock: Endurance 100 m 2Damage 1000 m 2 |
| Max. Switching Current 3A | |
| Max. Switching Power 360VA / 90W | Vibration Endurance 10 to 55 Hz ,1.5mm D.A.Damage 10 to 55 Hz ,1.5mm D.A. |
| Expected lifeMechanical 1×10 7 MinElectrical 1×10 5 Min. | Humidity 35~85%RH |
| Ambient temperature -25 to +70℃ | |
| Unit weight ≤3.5g |
ORDERING INFORMATION
 | ① Series: Miniature p.c.b Relay |
| ② Part No. | |
| ③ Contact Form: C=1C/O; A = N/O; B= N/C | |
| ④ Coil Voltage: 12D= 12Vdc 24D= 24Vdc | |
| ⑤ Nil= 0.36W coil powerH= 0.20W coil powerT= 0.15W coil power |

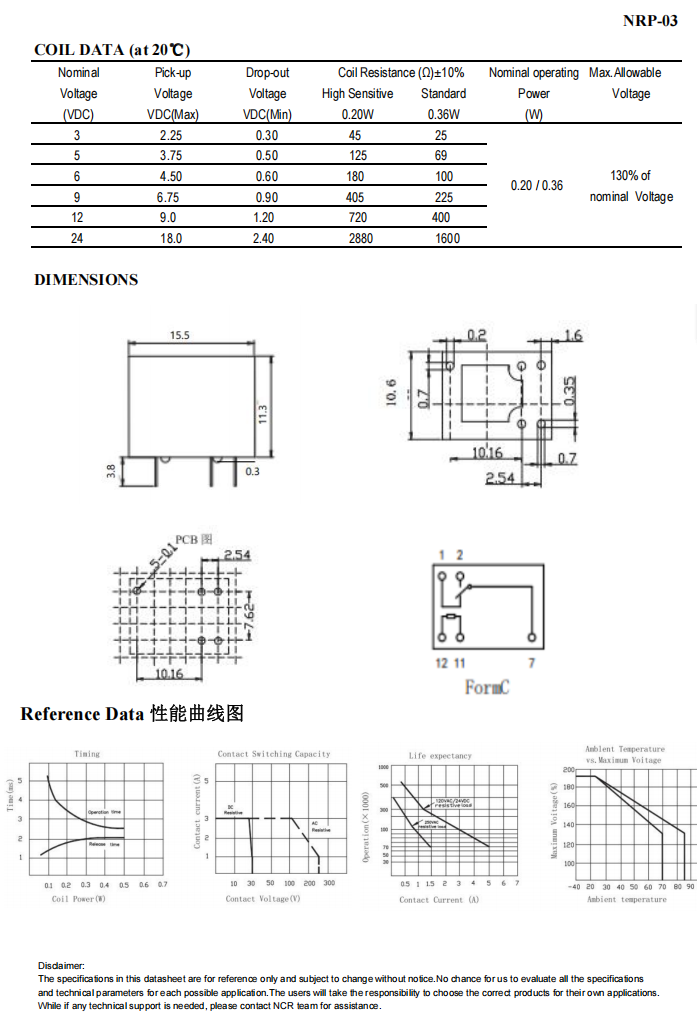

COIL DATA (at 20 ℃ ℃)
| Nominal Pick-up Drop-out Coil Resistance (Ω)±10% Nominal operating Max.AllowableVoltage Voltage Voltage High Sensitive Standard Power Voltage(VDC) VDC(Max) VDC(Min) 0.20W 0.36W (W) | |
3 2.40 0.30 45 25 | 0.15 / 0.20 / 0.36 130% of nominal Voltage |
5 4.00 0.50 125 69 | |
6 4.80 0.60 180 100 | |
9 7.20 0.90 405 225 | |
12 9.60 1.20 720 400 | |
24 19.20 2.40 2880 1600 | |
