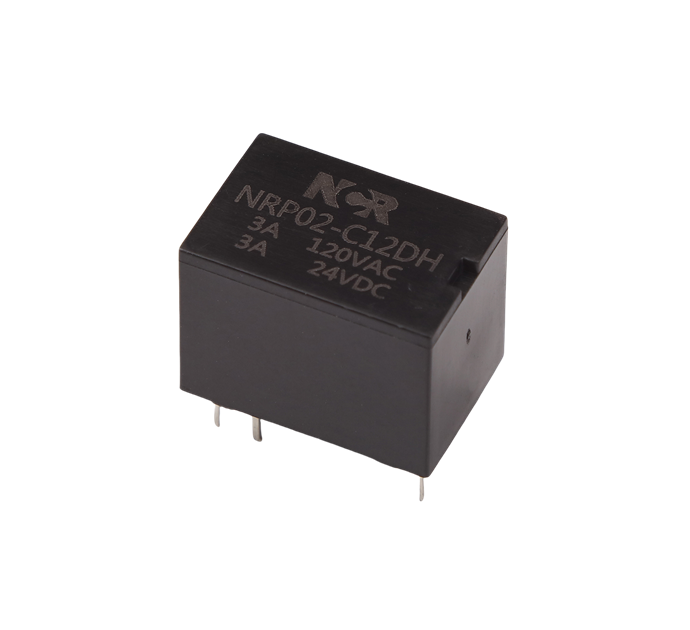

PCB Relays-NRP02

Characteristics:

● Ultra-small type with dimensions.
● High sensitivity:200mW coil power
● UL/C-UL recognized
● Sealed type available


Product Detail

Product Tags

● Ultra-small type with dimensions.
● High sensitivity:200mW coil power
● UL/C-UL recognized
● Sealed type available

CONTACT CHARACTERISTICS
Arrangement               1A/1B/1C Operate Time     6 ms. Max.
Contact Material            AuAg Release Time      4 ms. Max.
Contact Resistive            ≤ 100 mΩ Initial breakdown voltageBetween Coil & Contact  1000VAC (50/60Hz)for 1 min.Between Open Contacts  500VAC (50/60Hz)for 1 min.
Rating                     3A 125VAC/24VDCResistive load (cosφ=1)       3A 250VAC/30VDCInductive load (cosφ=0.75)    0.3A 120VAC/24VDC
Insulation Resistance     Min.100MΩ (500 VDC)
Max. Switching Voltage       250VAC / 60VDC Shock:     Endurance     100 m 2Damage      1000 m 2
Max. Switching Current       3A
Max. Switching Power        360VA / 90W Vibration    Endurance     10 to 55 Hz ,1.5mm D.A.Damage       10 to 55 Hz ,1.5mm D.A.
Expected lifeMechanical                1×10 7 MinElectrical                  1×10 5 Min. Humidity                 35~85%RH
Ambient temperature       -25 to +70℃
  Unit weight                ≤3.5g

ORDERING INFORMATION

 微信图片_20180710131918 ① Series: Miniature p.c.b Relay
② Part No.
③ Contact Form: C=1C/O; A = N/O; B= N/C
④ Coil Voltage: 12D= 12Vdc 24D= 24Vdc
⑤ Nil= 0.36W coil powerH= 0.20W coil powerT= 0.15W coil power
