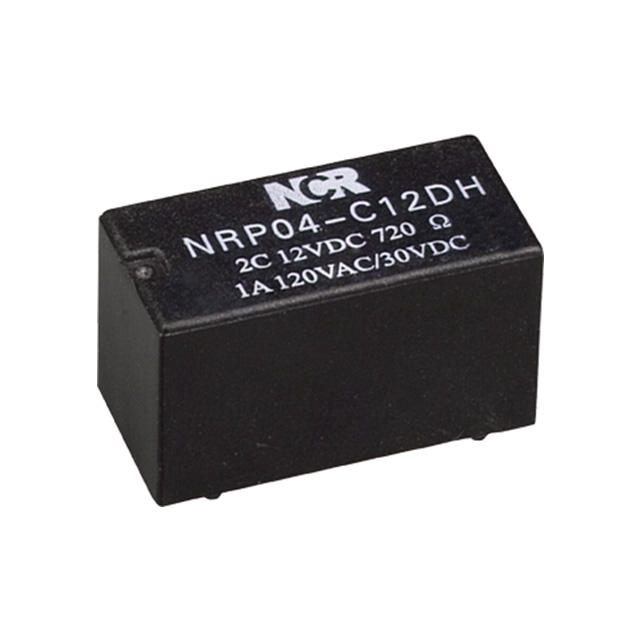

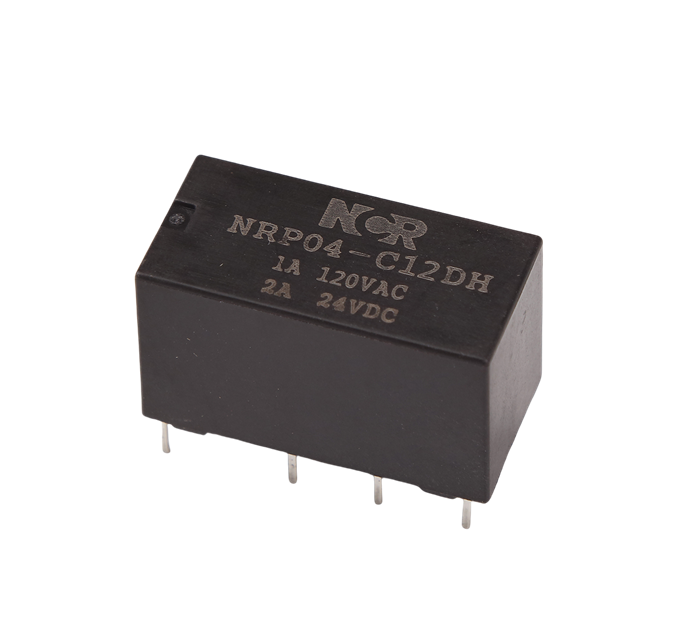

PCB Relays-NRP04

Characteristics:

● Ultra-small type with dimensions.
● High sensitivity:200mW coil power
● UL/C-UL recognized
● Sealed type available


Product Detail

Product Tags

● Ultra-small type with dimensions.
● High sensitivity:200mW coil power
● UL/C-UL recognized
● Sealed type available

CONTACT CHARACTERISTICS
Arrangement               2A / 2C Operate Time     8ms. Max.
Contact Material           Silver Alloy Release Time      4 ms. Max.
Contact Resistive            ≤ 50 mΩ Initial breakdown voltageBetween Coil & Contact  1000VAC (50/60Hz)for 1 min.Between Open Contacts  750VAC (50/60Hz)for 1 min.
Rating                    2A 120VAC/24VDCResistive load (cosφ=1)      1A 120VAC/24VDCInductive load (cosφ=0.75)   0.3A 120VAC/24VDC
Insulation Resistance     Min.100MΩ (500 VDC)
Max. Switching Voltage       240VAC / 60VDC Shock:     Endurance     50GDamage      100G
Max. Switching Current       3A
Max. Switching Power        120VA / 60W Vibration    Endurance     10 to 55 Hz ,1.5mm D.A.Damage       10 to 55 Hz ,1.5mm D.A.
Expected lifeMechanical                1×10 7 MinElectrical                  1×10 5 Min. Humidity                 45%~85%RH
Ambient temperature      -25 to +70℃
  Unit weight                ≤5.5g

ORDERING INFORMATION

 微信图片_20180710142644 ① Series: Miniature p.c.b Relay
② Part No.
③ Contact Form: C=1C/O; A = N/O; B= N/C
④ Coil Voltage: 12D= 12Vdc
⑤ Nil= 0.36W coil powerH= 0.20W coil powerT= 0.15W coil powerL= 0.45W coil powe
