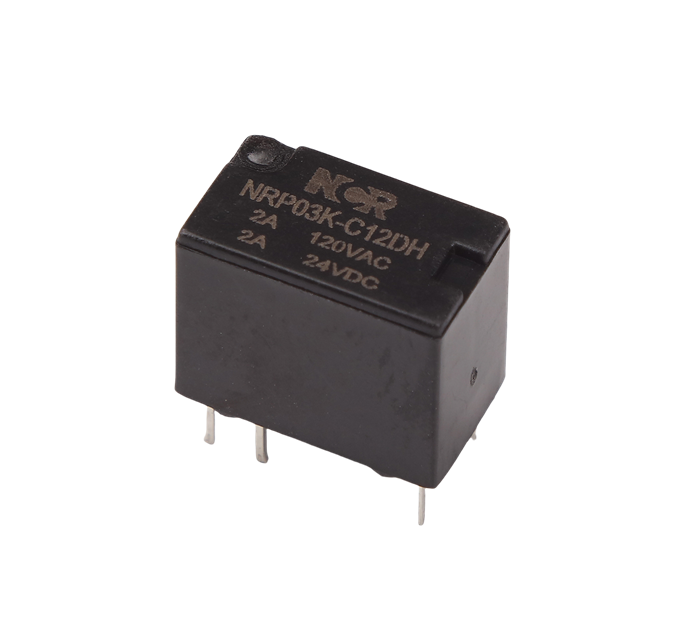

PCB RELAYS-NRP03K

Characteristics:
● Ultra-small type with dimensions.
● High sensitivity:150mW coil power
● UL/C-UL recognized
● Sealed type available
Availability:

● Ultra-small type with dimensions.
● High sensitivity:150mW coil power
● UL/C-UL recognized
● Sealed type available

CONTACT CHARACTERISTICS
Arrangement               1C Operate Time     4ms. Max.
Contact Material            AuAg Release Time      3 ms. Max.
Contact Resistive            ≤ 100 mΩ Initial breakdown voltageBetween Coil & Contact  1000VAC (50/60Hz)for 1 min.Between Open Contacts  400VAC (50/60Hz)for 1 min.
RatingResistive load (cosφ=1)      2A 120VAC/24VDC
Insulation Resistance     Min.100MΩ (500 VDC)
Max. Switching Voltage       120VAC / 60VDC Shock:     Endurance     10GDamage      100G
Max. Switching Current       2A
Max. Switching Power        240VA / 48W Vibration    Endurance     10 to 55 Hz ,1.5mm D.A.Damage       10 to 55 Hz ,1.5mm D.A.
Expected lifeMechanical                1×10 7 MinElectrical                  1×10 5 Min. Humidity                 85%RH
Ambient temperature       -30 to +70℃

Unit weight                ≤2.3g

ORDERING INFORMATION

0b967184 ① Series: Miniature p.c.b Relay
② Part No.
③ Contact Form: C=1C/O
④ Coil Voltage: 12D= 12Vdc
⑤ Nil= 0.20W coil powerH= 0.15W coil power
