● 20A 277vac.
● The contact form construction is 1A
● Sealed type available.

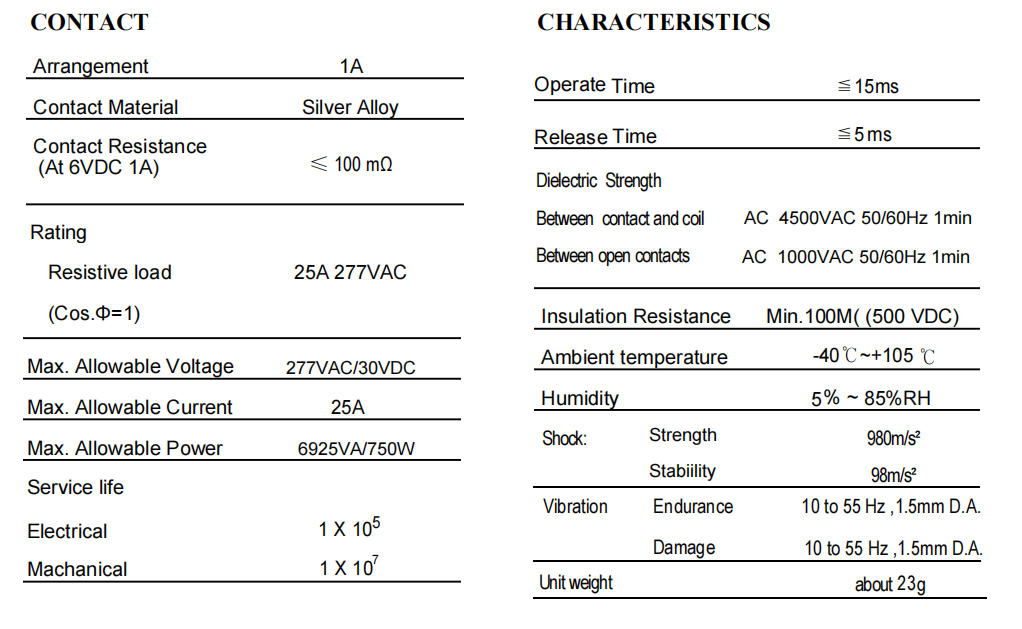

CONTACT | CHARACTERISTICS |
Arrangement 1A | Operate Time ≦15ms |
Contact Material Silver Alloy | Release Time ≦5ms |
Contact Resistive(At 6VDC 1A) ≤ 100 mΩ | Dielectric Strength Between contact and coil AC 4500VAC 50/60Hz 1min Between open contacts AC 1000VAC 50/60Hz 1min |
RatingResistive load (Cos.Φ=1) 25A 277VAC | |
Insulation Resistance Min.100MΩ (500 VDC) | |
Max. Allowable Voltage 277VAC/30VDC | Ambient temperature -40℃~ 105℃ |
Max. Allowable Current 25A | |
Max. Allowable Power 6925VA/750W | Humidity 5%~85%RH |
Service life Expected 1 X 10 5 Electrical 1 X 10 7 | Shock: Strength 980m/s² Stabiility 98m/s² |
Vibration Endurance 10 to 55 Hz ,1.5mm D.A. Damage 10 to 55 Hz ,1.5mm D.A | |
Unit weight about 23g |
ORDERING INFORMATION
| ① Series: General Power Relay |
② Contact Arrangement : A=1N/O | |
③Coil Rated Voltage: 12D=12VDC,24D=24VDC | |
④ Terminal Type: Blank: standard type P: PCB type |
