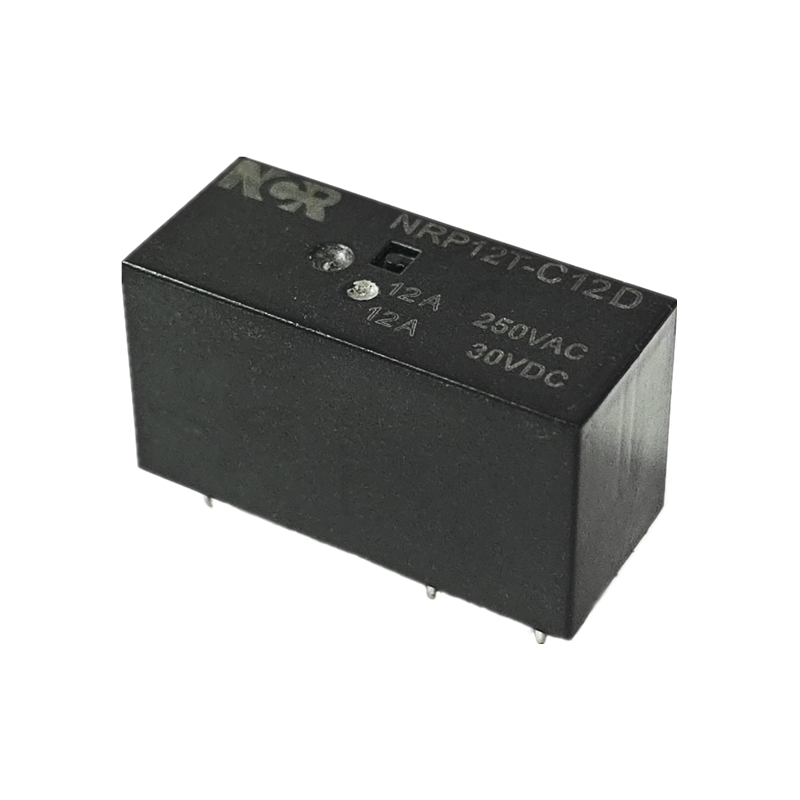

● 12A 240Vac Slim relay
● Compact dimension
● UL/C-UL recognized
● Sealed type available

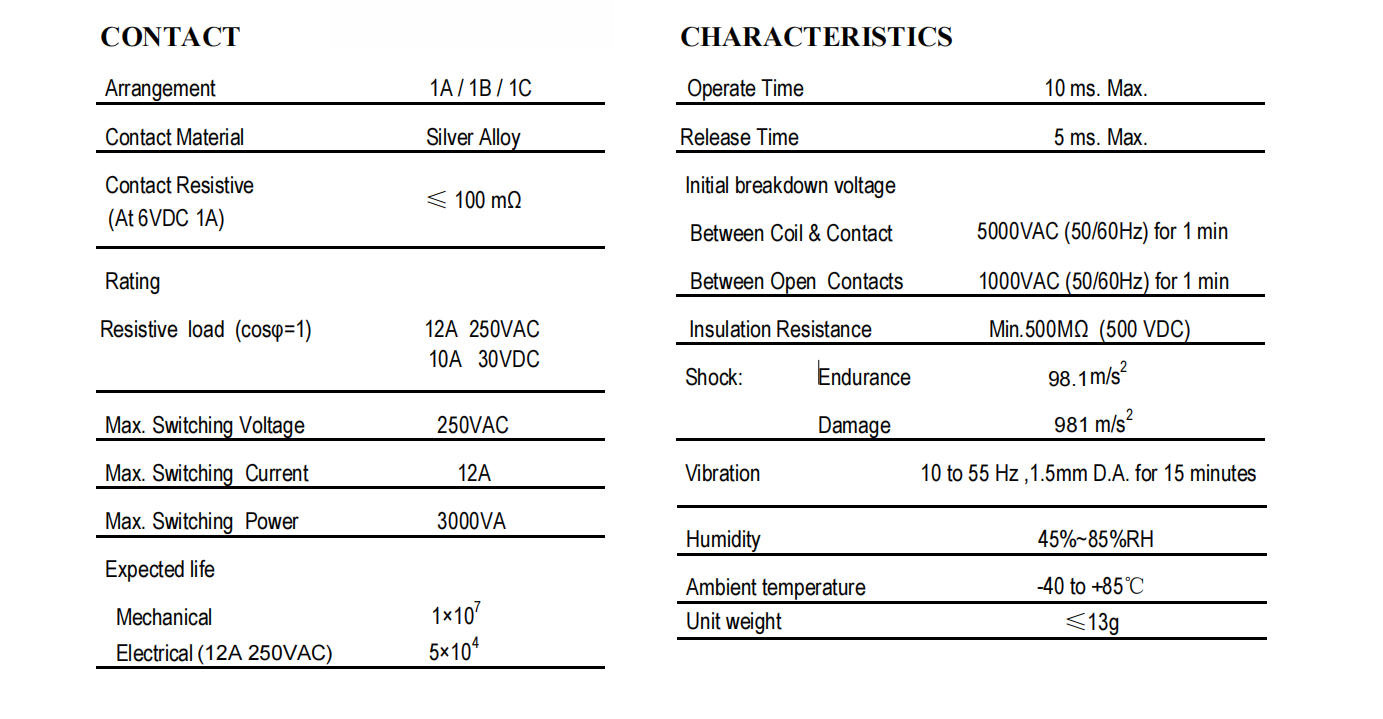

| CONTACT | CHARACTERISTICS |
| Arrangement 1A / 1B / 1C | Operate Time 10 ms. Max. |
| Contact Material Silver Alloy | Release Time 5 ms. Max. |
| Contact Resistive ≤ 100 mΩ | Initial breakdown voltage Between Coil & Contact 5000VAC (50/60Hz)for 1 min. Between Open Contacts 1000VAC (50/60Hz)for 1 min. |
| Rating 12A 250VACResistive load (cosφ=1) 10A 30VDC | |
| Insulation Resistance Min.500MΩ (500 VDC) | |
| Max. Switching Voltage 250VAC 30VDC | Shock: Endurance 98.1 m 2 Damage 981 m 2 |
| Max. Switching Current 12A | |
| Max. Switching Power 3000VA | Vibration 10 to 55 Hz ,1.5mm D.A.for 15 minutes |
| Expected lifeMechanical 1×10 7 | Humidity 45%~85%RH |
| Ambient temperature -40 to +85? | |
| MinElectrical 5×10 4 | Unit weight ≤13g |
ORDERING INFORMATION
 | ① Series:Miniature p.c.b Relay |
| ② 15.6mm height special type | |
| ③ Contact Form:C=1C/O; A = N/O; B= N/C | |
| ④ Coil Voltage: 12D= 12Vdc24D= 24Vdc |
● 12A 240Vac Slim relay
● Compact dimension
● UL/C-UL recognized
● Sealed type available
| CONTACT | CHARACTERISTICS |
| Arrangement 1A / 1B / 1C | Operate Time 10 ms. Max. |
| Contact Material Silver Alloy | Release Time 5 ms. Max. |
| Contact Resistive ≤ 100 mΩ | Initial breakdown voltage Between Coil & Contact 5000VAC (50/60Hz)for 1 min. Between Open Contacts 1000VAC (50/60Hz)for 1 min. |
| Rating 12A 250VACResistive load (cosφ=1) 10A 30VDC | |
| Insulation Resistance Min.500MΩ (500 VDC) | |
| Max. Switching Voltage 250VAC 30VDC | Shock: Endurance 98.1 m 2 Damage 981 m 2 |
| Max. Switching Current 12A | |
| Max. Switching Power 3000VA | Vibration 10 to 55 Hz ,1.5mm D.A.for 15 minutes |
| Expected lifeMechanical 1×10 7 | Humidity 45%~85%RH |
| Ambient temperature -40 to +85? | |
| MinElectrical 5×10 4 | Unit weight ≤13g |
ORDERING INFORMATION
| | ① Series:Miniature p.c.b Relay |
| ② 15.6mm height special type | |
| ③ Contact Form:C=1C/O; A = N/O; B= N/C | |
| ④ Coil Voltage: 12D= 12Vdc24D= 24Vdc |
