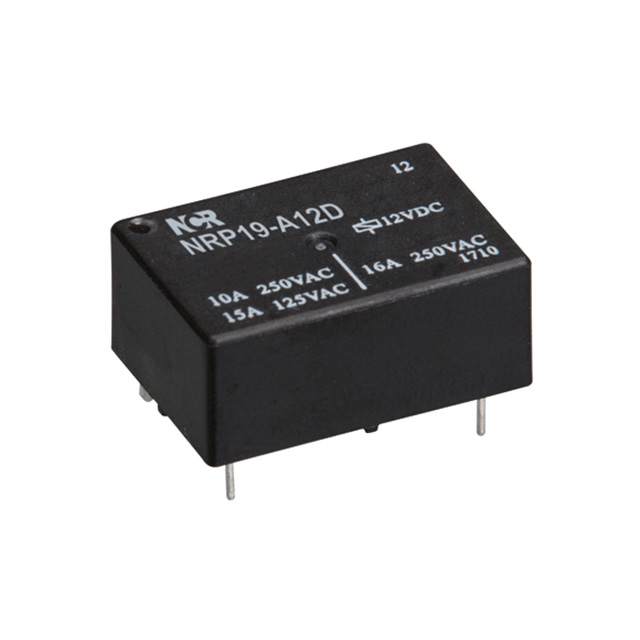

● Small size with 16A switching capability.
● Low coil power consumpton:200mW available.

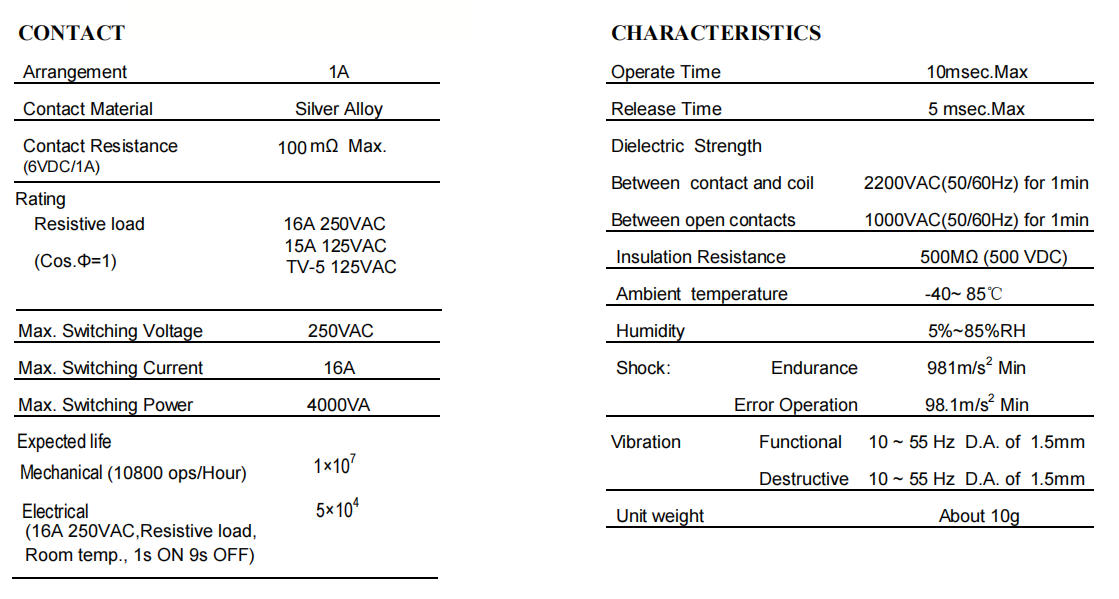

CONTACT | CHARACTERISTICS |
Arrangement 1A | Operate Time 10 ms. Max. |
Contact Material Silver Alloy | Release Time 5 ms. Max. |
Contact Resistive 50mΩ Max. | Dielectric StrengthBetween contact and coil 2200VAC(50/60Hz) for 1minBetween open contacts 1000VAC(50/60Hz) for 1min |
Rating Resistive load 16A 250VAC(Cos.Φ=1) 15A 125VAC | |
Insulation Resistance Min.1000MΩ (500 VDC) | |
Max. Switching Voltage 250VAC | Ambient temperature -40~ 85℃(no condensation) |
Max. Switching Current 16A | |
Max. Switching Power 4000VA | Humidity5%~85%RH |
Expected life lectrical 1×105 | Shock: Endurance 981m/s2 Min Error Operation 98.1m/s2 Min |
Vibration Functional 10 ~ 55 Hz D.A. of 1.5mm Destructive 10 ~ 55 Hz D.A. of 1.5mm | |
Unit weight About 10g |

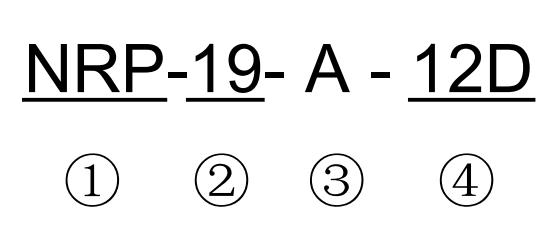

ORDERING INFORMATION
| ① Series: Miniature p.c.b Relay |
② Part No. | |
③ Contact Arrangement : A=N/O | |
④ Coil Rated Voltage: 12D=12VDC,24D=24VD |
COIL DATA(at 20℃)
Nominal Voltage (VDC) | Pick-up Voltage VDC(Max) | Drop-out Voltage VDC(Min) | Coil Resistance (Ω)±10% 0.2W | Max.AllowableVoltage | |
3 | 2.25 | 0.30 | 45.0 | 3.9 | |
5 | 3.75 | 0.50 | 125.0 | 6.5 | |
6 | 4.50 | 0.60 | 180.0 | 7.8 | |
9 | 6.75 | 0.90 | 400.0 | 11.7 | |
12 | 9.00 | 1.20 | 720.0 | 15.6 | |
24 | 18.00 | 2.40 | 2880.0 | 31.2 | |
48 | 36.00 | 4.80 | 11520.0 | 62.4 |
DIMENSIONS (Unit: mm)
Dimension Tolerance:<1mm ± 0.2mm
1~5mm:±0.3mm
>5mm:±0.5mm

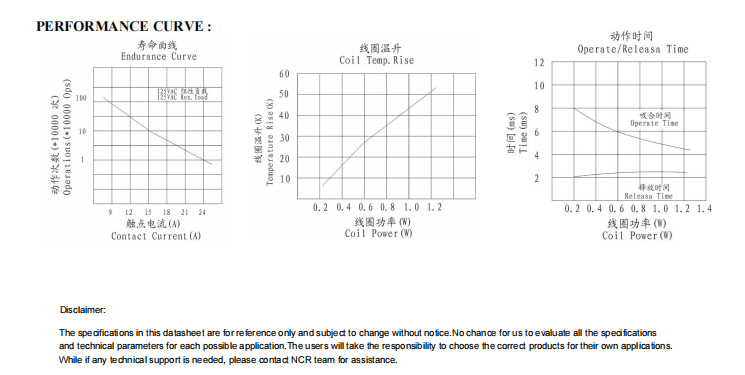

PERFORMANCE CURVE:

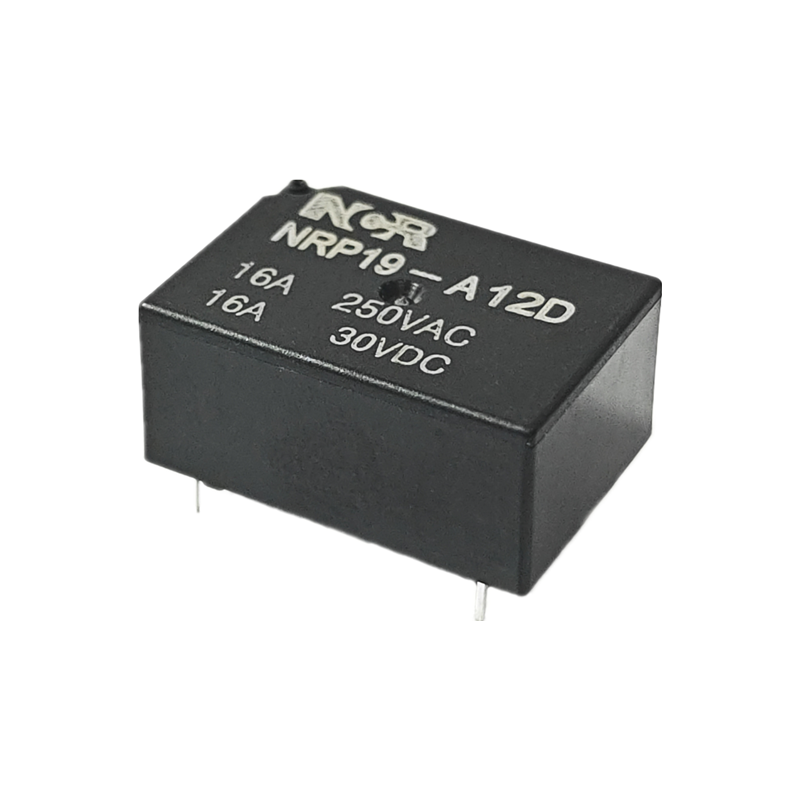

● Small size with 16A switching capability.
● Low coil power consumpton:200mW available.
CONTACT | CHARACTERISTICS |
Arrangement 1A | Operate Time 10 ms. Max. |
Contact Material Silver Alloy | Release Time 5 ms. Max. |
Contact Resistive 50mΩ Max. | Dielectric StrengthBetween contact and coil 2200VAC(50/60Hz) for 1minBetween open contacts 1000VAC(50/60Hz) for 1min |
Rating Resistive load 16A 250VAC(Cos.Φ=1) 15A 125VAC | |
Insulation Resistance Min.1000MΩ (500 VDC) | |
Max. Switching Voltage 250VAC | Ambient temperature -40~ 85℃(no condensation) |
Max. Switching Current 16A | |
Max. Switching Power 4000VA | Humidity5%~85%RH |
Expected life lectrical 1×105 | Shock: Endurance 981m/s2 Min Error Operation 98.1m/s2 Min |
Vibration Functional 10 ~ 55 Hz D.A. of 1.5mm Destructive 10 ~ 55 Hz D.A. of 1.5mm | |
Unit weight About 10g |
ORDERING INFORMATION
| ① Series: Miniature p.c.b Relay |
② Part No. | |
③ Contact Arrangement : A=N/O | |
④ Coil Rated Voltage: 12D=12VDC,24D=24VD |
COIL DATA(at 20℃)
Nominal Voltage (VDC) | Pick-up Voltage VDC(Max) | Drop-out Voltage VDC(Min) | Coil Resistance (Ω)±10% 0.2W | Max.AllowableVoltage | |
3 | 2.25 | 0.30 | 45.0 | 3.9 | |
5 | 3.75 | 0.50 | 125.0 | 6.5 | |
6 | 4.50 | 0.60 | 180.0 | 7.8 | |
9 | 6.75 | 0.90 | 400.0 | 11.7 | |
12 | 9.00 | 1.20 | 720.0 | 15.6 | |
24 | 18.00 | 2.40 | 2880.0 | 31.2 | |
48 | 36.00 | 4.80 | 11520.0 | 62.4 |
DIMENSIONS (Unit: mm)
Dimension Tolerance:<1mm ± 0.2mm
1~5mm:±0.3mm
>5mm:±0.5mm
PERFORMANCE CURVE:
