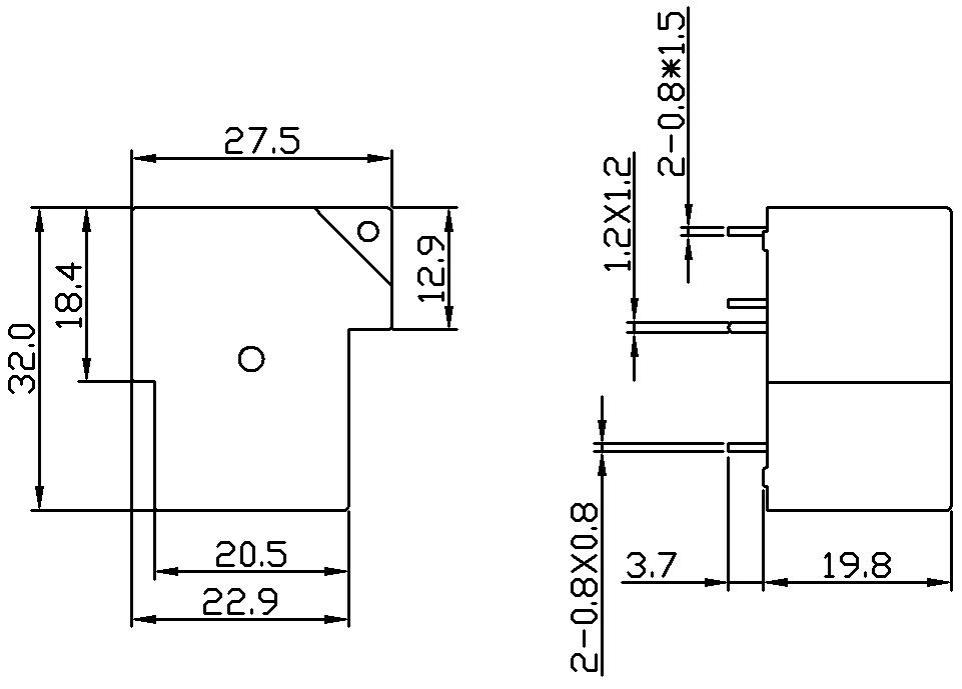

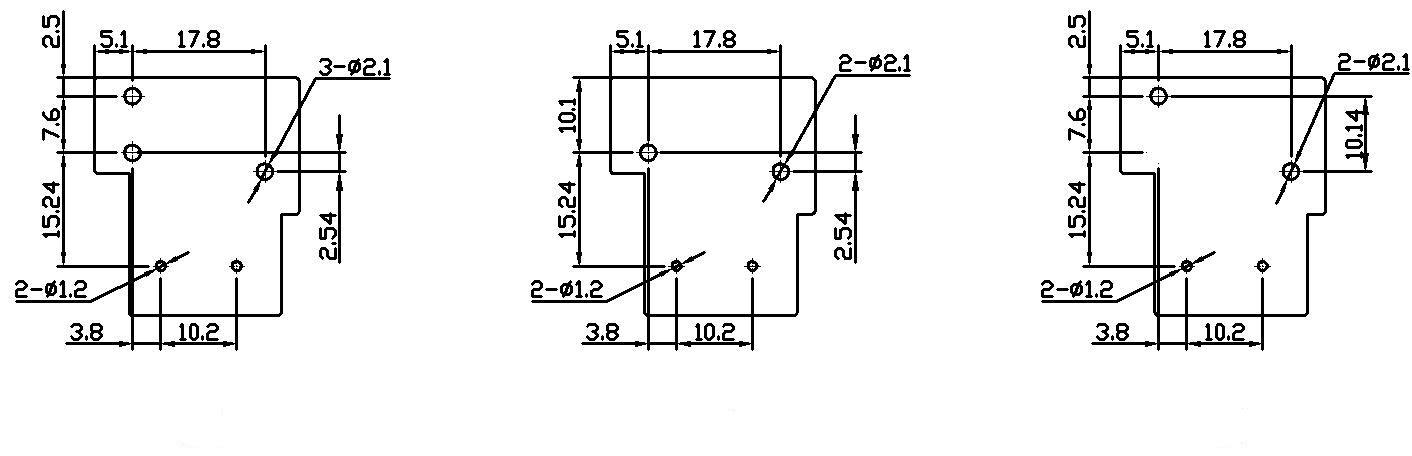

● IEC255-7
● High switching capacity - 40A for 1 Form A
● Low coil consumption
● Small size, light weight, PCB mounting.
● UL/C-UL recognized
CONTACT | CHARACTERISTICS |

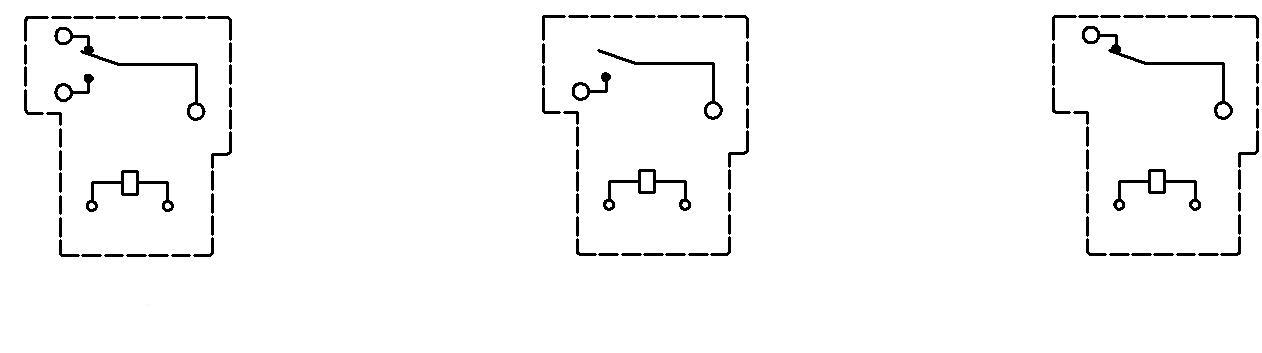

Arrangement 1A / 1B / 1C | Operate Time 15 ms. Max. |
Contact Material Silver Alloy | Release Time 10 ms. Max. |
Contact Resistive ≤ 30 mΩ | Initial breakdown voltage 2500VAC 50Hz ( 6 pins type)Between Coil & Contact 4000VAC 50Hz ( 5 pins type)Between Open Contacts 1500VAC (50Hz)for 1 min. |
Rating NO: 40A/240VAC,14VDCResistive load (cosφ=1) NC: 30A/240VAC,14VDCMotor Load: 2HP 250Vac | |
Insulation Resistance Min.100MΩ (500 VDC) | |
Max. Switching Voltage 250VAC 110VDC | Shock: Endurance 200m/s2 11msDamage |
Max. Switching Current 40 A | |
Max. Switching Power 7200VA / 1100W | Vibration Endurance 10 to 55 Hz ,1.5mm D.A.Damage |
Expected lifeMechanical 1×10 7 MinElectrical 1×10 5 Min. | Humidity 85%RH ( at 40℃) |
Ambient temperature -55 to +100℃/125℃(F class) | |
Unit weight ≤30g |
ORDERING INFORMATION
| ① Part No. 15T= 40A version |
② Contact Form:C=1C/O; A = N/O; B= N/C | |
③ Coil Voltage: 12D= 12Vdc220A= 220VAC | |
④ B= Class B F= Class F | |
⑤ Coil Power, H=0.6W, Nil = 0.9W |
