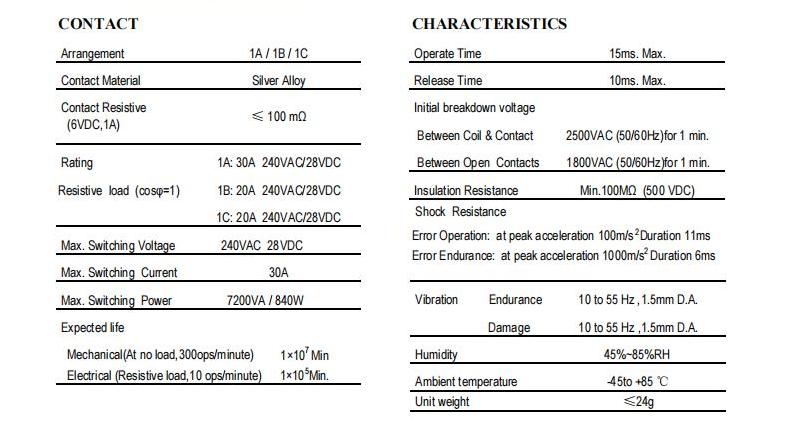

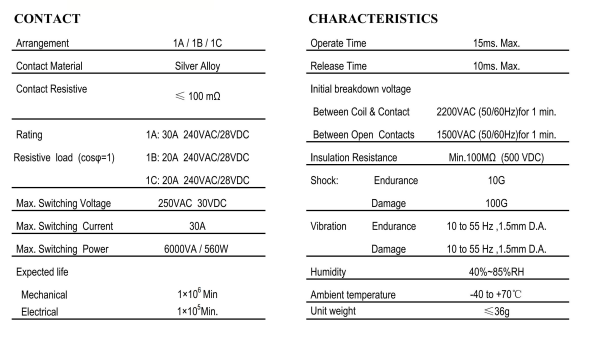

Contact
| Arrangement | 1A / 1B / 1C |
| Contact Material | Silver Alloy |
| Contact Resistive (6VDC,1A) | ≤ 100 mΩ |
| Rating Resistive load (cosφ=1) | 1A: 30A 240VAC/28VDC 1B: 20A 240VAC/28VDC 1C: 20A 240VAC/28VDC |
| Max. Switching Voltage | 240VAC 28VDC |
| Max. Switching Current | 30A |
| Max. Switching Power | 7200VA / 840W |
| Expected life | |
| Mechanical(At no load,300 ops/minute) | 1×107Min |
| Electrical (Resistive load,6 ops/minute) | 1×105Min |
Characteristics
Operate Time | 15ms. Max. | |
Release Time | 10ms. Max. | |
Initial breakdown voltage | ||
Between Coil &Contact | 2500VAC (50/60Hz)for 1 min. | |
Between Open Contacts | 1800VAC (50/60Hz)for 1 min. | |
Insulation Resistance | Min.100MΩ (500 VDC) | |
Shock Resistance | ||
Error Operation:at peak acceleration 100m/s2Duration 11ms | ||
Error Endurance:at peak acceleration 1000m/s2Duration 6ms | ||
Vibration | Endurance | 10 to 55 Hz,1.5mm D.A. |
Damage | 10 to 55 Hz,1.5mm D.A. | |
Humidity | 45%~85%RH | |
Ambient temperature | -45 to +85°C | |
Unit weight | ≤24g | |
ORDERING INFORMATION

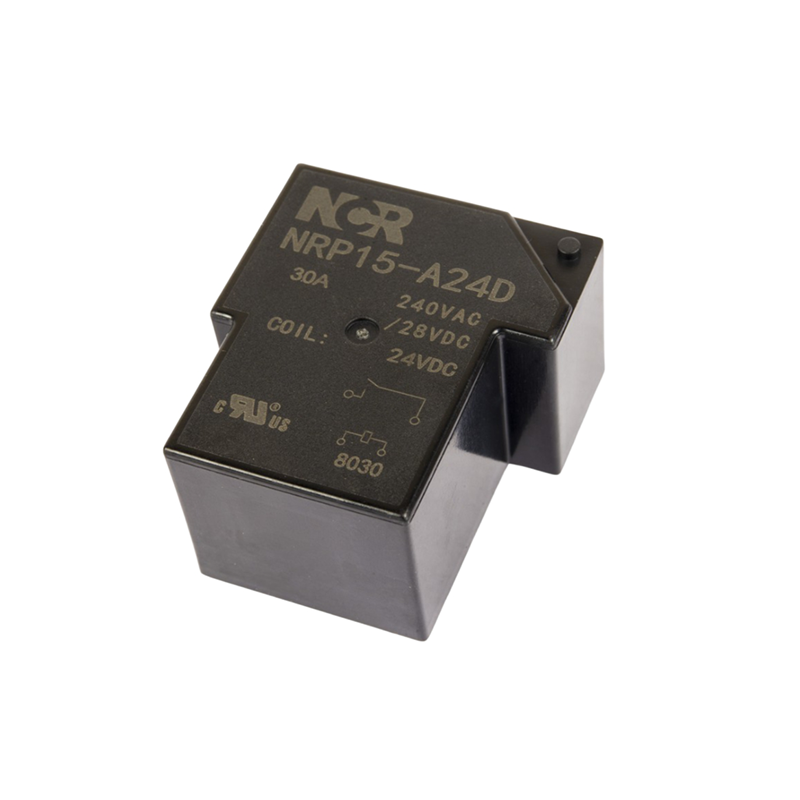

| ① Series:Miniature p.c.b Relay |
② Part No. | |

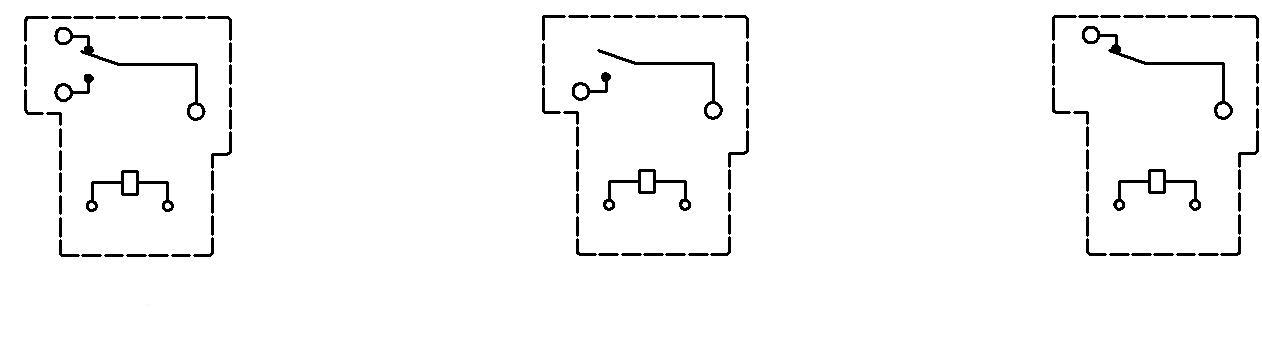

③ Contact Form: C=1C/O; A = N/O; B= N/C | |
④ Coil Voltage: 12D= 12Vdc 24D= 24Vdc |

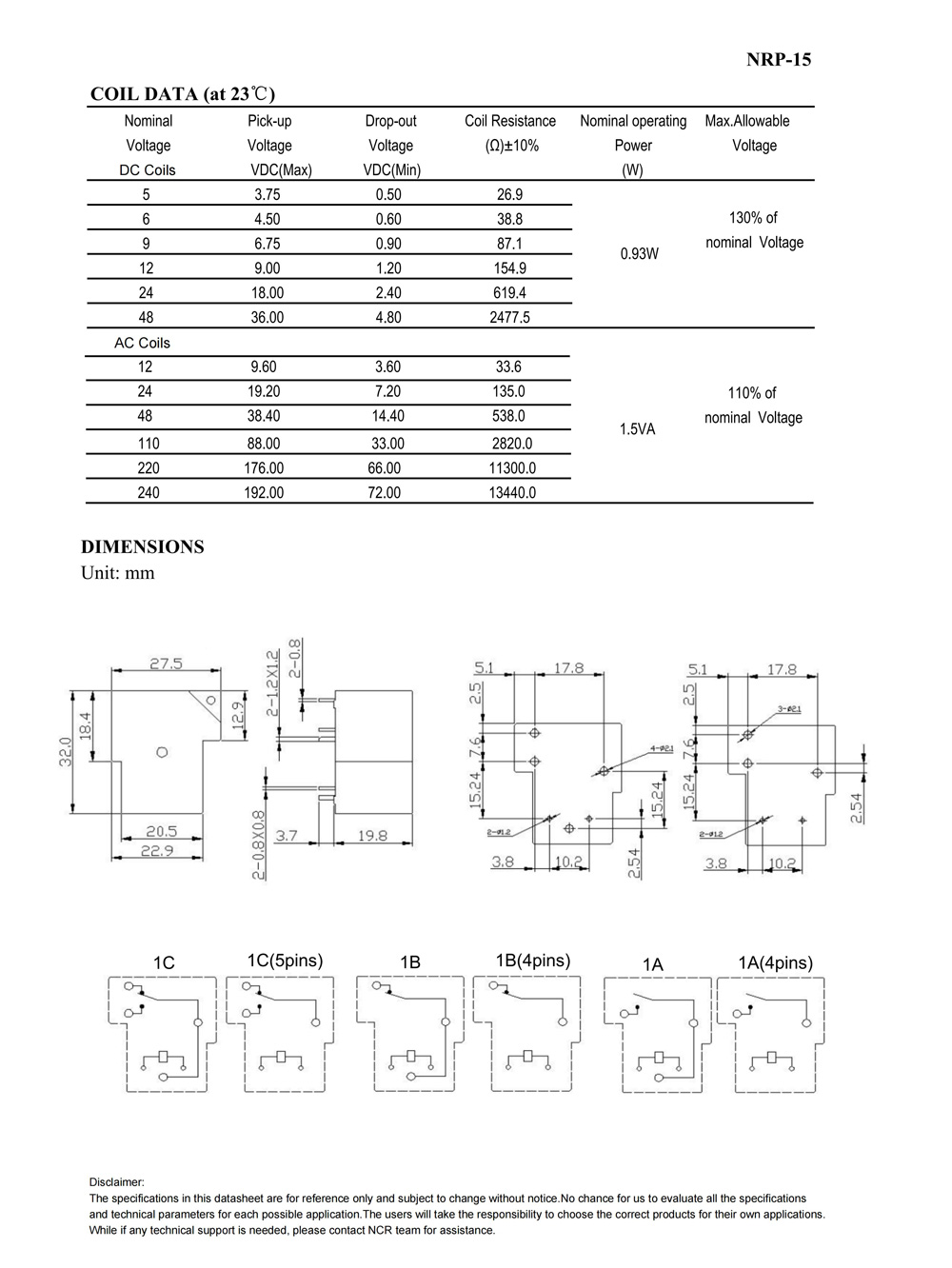

Coil Data (at 23℃)
Nominal Voltage DC Coils | Pick-up Voltage VDC(Max) | Drop-out Voltage VDC(Min) | Coil Resistance (Ω)±10% | Nominal operating Power (W) | Max.Allowable Voltage |
5 | 3.75 | 0.50 | 26.9 | 0.93W | 130% of nominal Voltage |
6 | 4.50 | 0.60 | 38.8 | ||
9 | 6.75 | 0.90 | 87.1 | ||
12 | 9.00 | 1.20 | 154.9 | ||
24 | 18.00 | 2.40 | 619.4 | ||
48 | 36.00 | 4.80 | 2477.5 | ||
| AC Coils | |||||
12 | 9.60 | 3.60 | 33.6 | 1.5VA | 110% of nominal Voltage |
24 | 19.20 | 7.20 | 135.0 | ||
48 | 38.40 | 14.40 | 538.0 | ||
110 | 88.00 | 33.00 | 2820.0 | ||
220 | 176.00 | 66.00 | 11300.0 | ||
240 | 192.00 | 72.00 | 13440.0 | ||

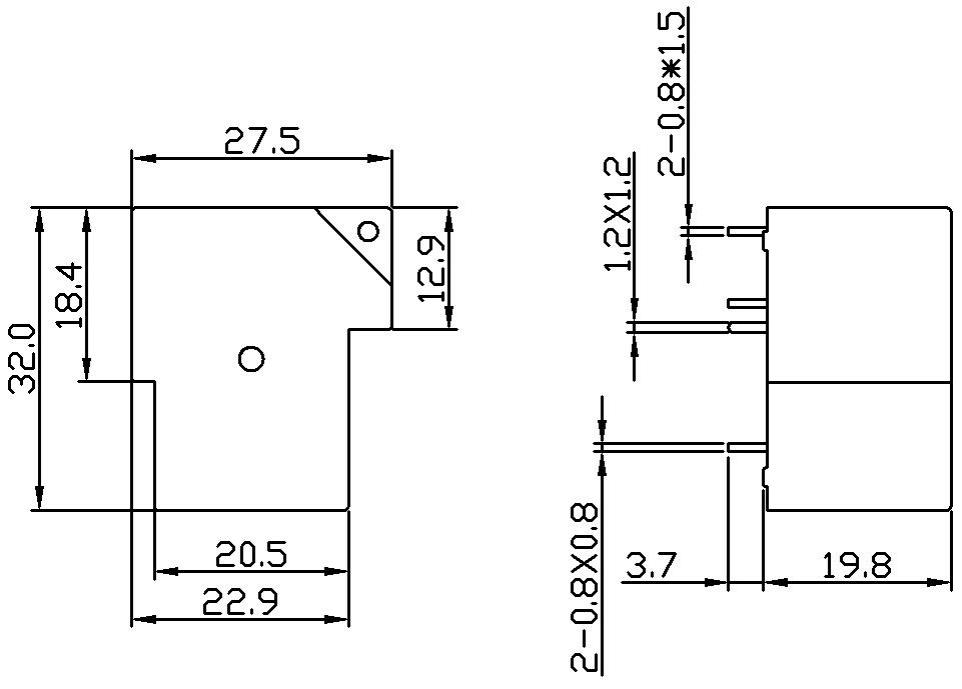

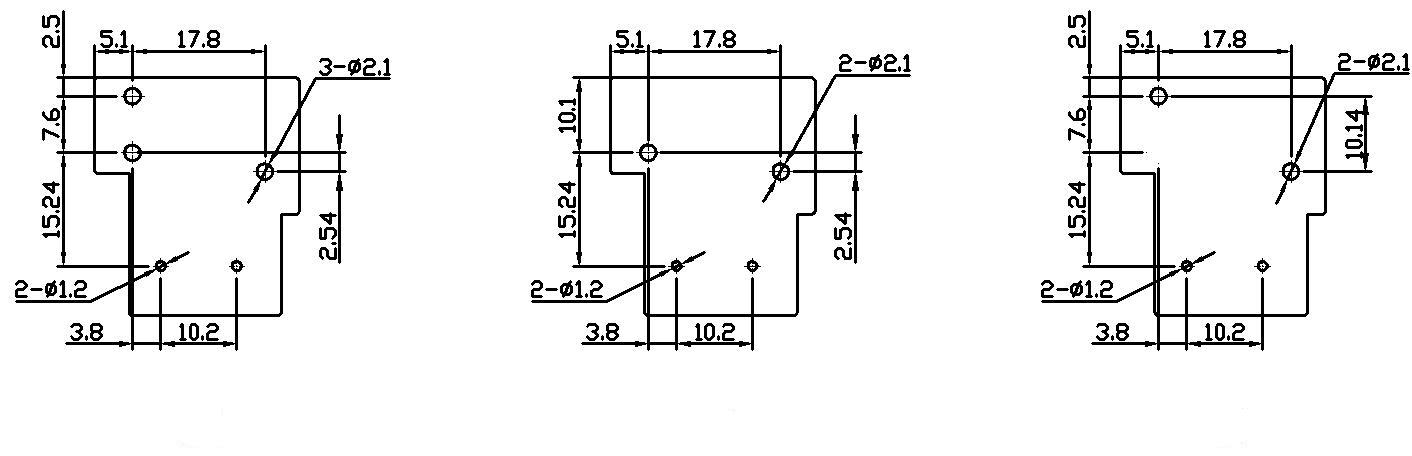

Dimensions (Bottom view)
Unit: mm
