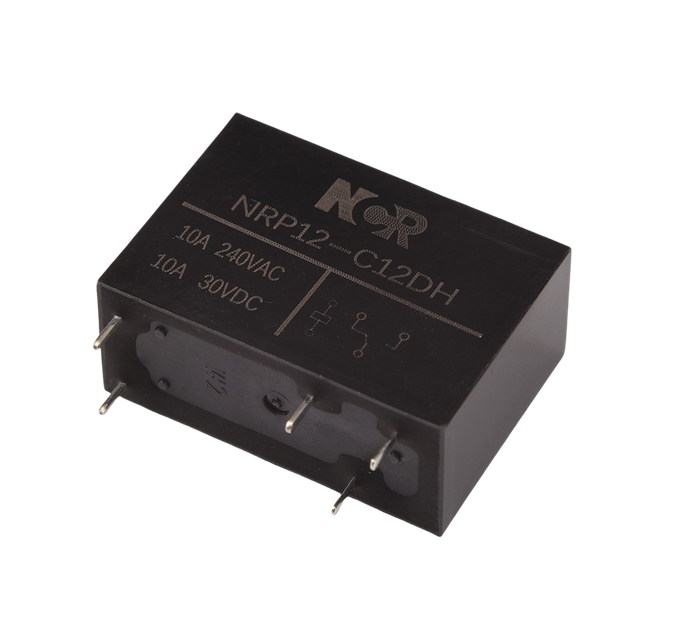

● 16A 240Vac 1 pole Slim relay
● Compact dimension
● UL/C-UL recognized
● Sealed type available
CONTACT | CHARACTERISTICS |
Arrangement 1A / 1B / 1C | Operate Time 15 ms. Max. |
Contact Material Silver Alloy | Release Time 5 ms. Max. |
Contact Resistive ≤ 100 mΩ | Initial breakdown voltageBetween Coil & Contact 5000VAC (50/60Hz)for 1 min.Between Open Contacts 1000VAC (50/60Hz)for 1 min. |
Rating 16 A 250VACResistive load (cosφ=1) 16 A 30VDC | |
Insulation Resistance Min.100MΩ (500 VDC) | |
Max. Switching Voltage 250VAC 30VDC | Shock: Endurance 10GDamage 100G |
Max. Switching Current 20 A | |
Max. Switching Power 4800VA / 480W | Vibration Endurance 110 to 55 Hz ,1.5mm D.A.Damage 10 to 55 Hz ,1.5mm D.A. |
Expected lifeMechanical 1×10 7 MinElectrical 1×10 4 Min. | Humidity 40%~85%RH |
Ambient temperature -40 to +70? | |
Unit weight ≤14g |
ORDERING INFORMATION
① Series:Miniature p.c.b Relay | |
② Part No. | |
③ Contact Form:C=1C/O; A = N/O; B= N/C | |
④ Coil Voltage: 12D= 12Vdc 24D= 24Vdc | |
⑤ Nil= 0.72W coil powerH= 0.54W coil power |
