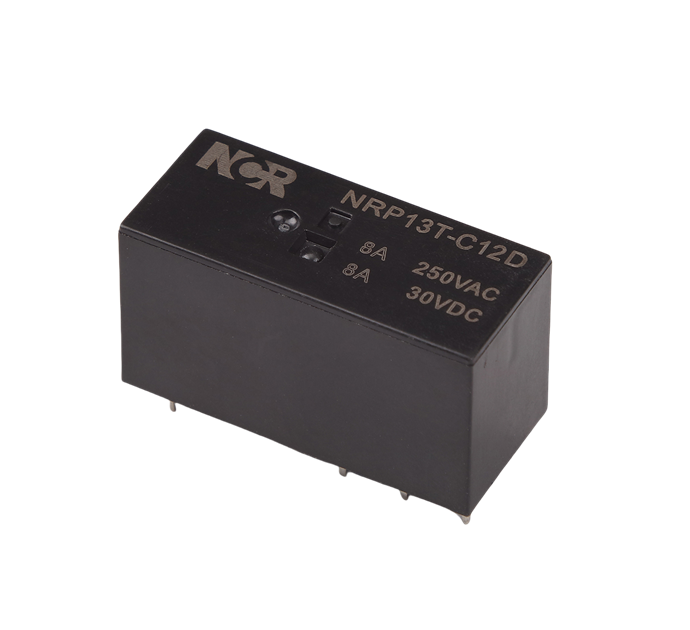

● 8A 250Vac DPDT
● Compact dimension
● UL/C-UL recognized
● Sealed type available
CONTACT | CHARACTERISTICS |
Arrangement 2A / 2B / 2C | Operate Time 15 ms. Max. |
Contact Material Silver Alloy | Release Time 5 ms. Max. |
Contact Resistive ≤ 100 mΩ | Initial breakdown voltageBetween Coil & Contact 5000VAC (50/60Hz)for 1 min.Between Open Contacts 1000VAC (50/60Hz)for 1 min. |
Rating 8 A 250VACResistive load (cosφ=1) 8 A 30VDC | |
Insulation Resistance Min.100MΩ (500 VDC) | |
Max. Switching Voltage 250VAC 30VDC | Shock: Endurance 100 m 2Damage 1000 m 2 |
Max. Switching Current 8A | |
Max. Switching Power 1250VA / 240W | Vibration Endurance 10 to 55 Hz ,1.5mm D.A. for 15 minutesDamage 10 to 55 Hz ,1.5mm D.A. for 6 hours |
Expected lifeMechanical 1×10 6 MinElectrical 1×10 4 Min. | Humidity 35%~85%RH |
Ambient temperature -40 to +70? | |
Unit weight ≤13g |
ORDERING INFORMATION
| ① Series:Miniature p.c.b Relay |
② T=15.6mm height special type | |
③ Contact Form:C=1C/O; A = N/O; B= N/C | |
④ Coil Voltage: 12D= 12Vdc24D= 24Vdc |
