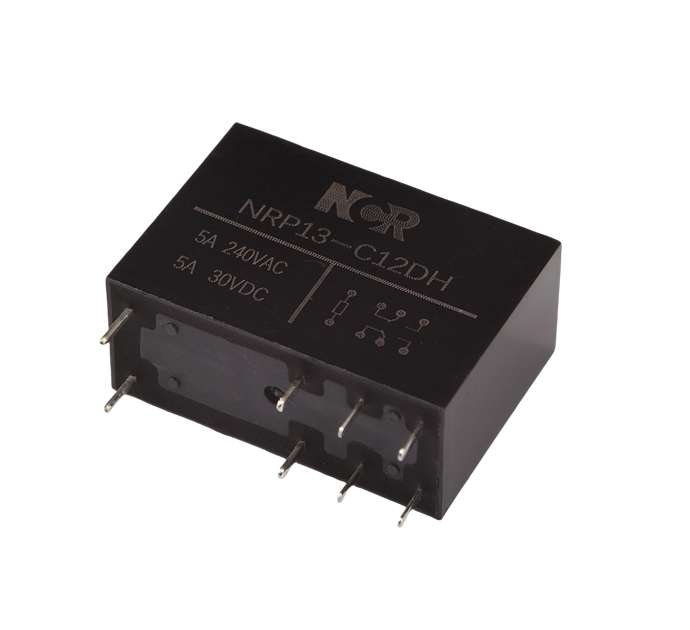

PCB Relays-NRP13

Characteristics:

● 5A 240Vac 2 pole Slim relay
● Compact dimension
● UL/C-UL recognized
● Sealed type available


Product Detail

Product Tags

● 5A 240Vac 2 pole Slim relay
● Compact dimension
● UL/C-UL recognized
● Sealed type available

CONTACT CHARACTERISTICS
Arrangement              2A / 2B / 2C Operate Time     15 ms. Max.
Contact Material           Silver Alloy Release Time      5 ms. Max.
Contact Resistive          ≤ 100 mΩ Initial breakdown voltageBetween Coil & Contact  5000VAC (50/60Hz)for 1 min.Between Open Contacts  1000VAC (50/60Hz)for 1 min.
Rating                   5A 250VACResistive load (cosφ=1)     5A 30VDC
Insulation Resistance     Min.100MΩ (500 VDC)
Max. Switching Voltage      250VAC 30VDC Shock:     Endurance     100 m 2Damage      1000 m 2
Max. Switching Current       8A
Max. Switching Power   1250VA / 240W Vibration    Endurance     10 to 55 Hz ,1.5mm D.A.Damage       10 to 55 Hz ,1.5mm D.A.
Expected lifeMechanical                1×10 7 MinElectrical                  1×10 4 Min. Humidity                 40%~85%RH
Ambient temperature       -40 to +70?
  Unit weight                ≤14g

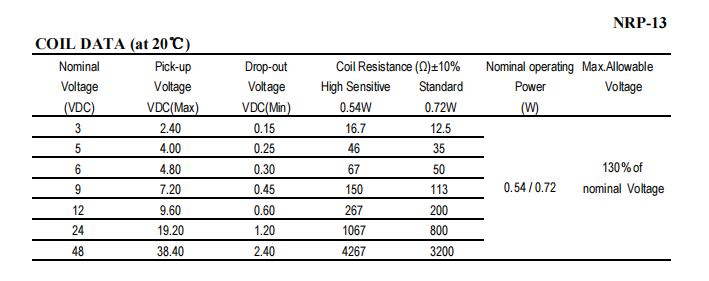

ORDERING INFORMATION

 微信图片_20180710164953 ① Series:Miniature p.c.b Relay
  Part No.
③ Contact Form:C=1C/O; A = N/O; B= N/C
④ Coil Voltage: 12D= 12Vdc24D= 24Vdc
⑤   Nil= 0.72W coil powerH= 0.54W coil power

88888 99999
