● 15A 125Vac switching capacity
● Compact dimension
● UL/C-UL recognized
● Sealed type available
CONTACT | CHARACTERISTICS |
Arrangement 1A/1C | Operate Time 10ms. Max. |
Contact Material Silver Alloy | Release Time 5 ms. Max. |
Contact Resistive ≤ 100 mΩ | Initial breakdown voltageBetween Coil & Contact 1500VAC (50/60Hz)for 1 min.Between Open Contacts 750VAC (50/60Hz)for 1 min. |
Rating 10A 240VACResistive load (cosφ=1) 15A 125VAC 10A 28VDC | |
Insulation Resistance Min.100MΩ (500 VDC) | |
Max. Switching Voltage 250VAC 30VDC | Shock: Endurance 100 m 2Damage 1000 m 2 |
Max. Switching Current 15A | |
Max. Switching Power 2800VA / 240W | Vibration Endurance 10 to 55 Hz ,1.5mm D.A.Damage 10 to 55 Hz ,1.5mm D.A. |
Expected lifeMechanical 1×10 7 MinElectrical 1×10 5 Min. | Humidity 45%~85%RH |
Ambient temperature -40 to +70? | |
Unit weight ≤12g |
ORDERING INFORMATION

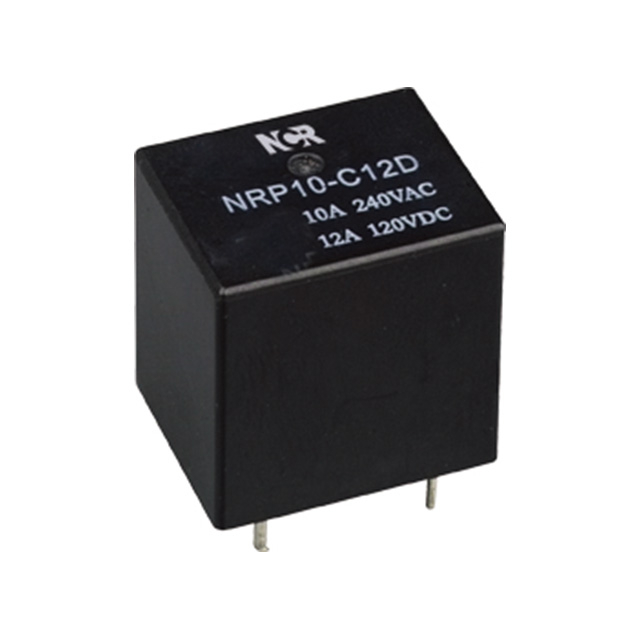

| ① Series:Miniature p.c.b Relay |
② Part No. | |
③ Contact Form:C=1C/O; A = N/O; B= N/C | |
④ Coil Voltage: 12D= 12Vdc24D= 24Vdc |
● 15A 125Vac switching capacity
● Compact dimension
● UL/C-UL recognized
● Sealed type available
CONTACT | CHARACTERISTICS |
Arrangement 1A/1C | Operate Time 10ms. Max. |
Contact Material Silver Alloy | Release Time 5 ms. Max. |
Contact Resistive ≤ 100 mΩ | Initial breakdown voltageBetween Coil & Contact 1500VAC (50/60Hz)for 1 min.Between Open Contacts 750VAC (50/60Hz)for 1 min. |
Rating 10A 240VACResistive load (cosφ=1) 15A 125VAC 10A 28VDC | |
Insulation Resistance Min.100MΩ (500 VDC) | |
Max. Switching Voltage 250VAC 30VDC | Shock: Endurance 100 m 2Damage 1000 m 2 |
Max. Switching Current 15A | |
Max. Switching Power 2800VA / 240W | Vibration Endurance 10 to 55 Hz ,1.5mm D.A.Damage 10 to 55 Hz ,1.5mm D.A. |
Expected lifeMechanical 1×10 7 MinElectrical 1×10 5 Min. | Humidity 45%~85%RH |
Ambient temperature -40 to +70? | |
Unit weight ≤12g |
ORDERING INFORMATION

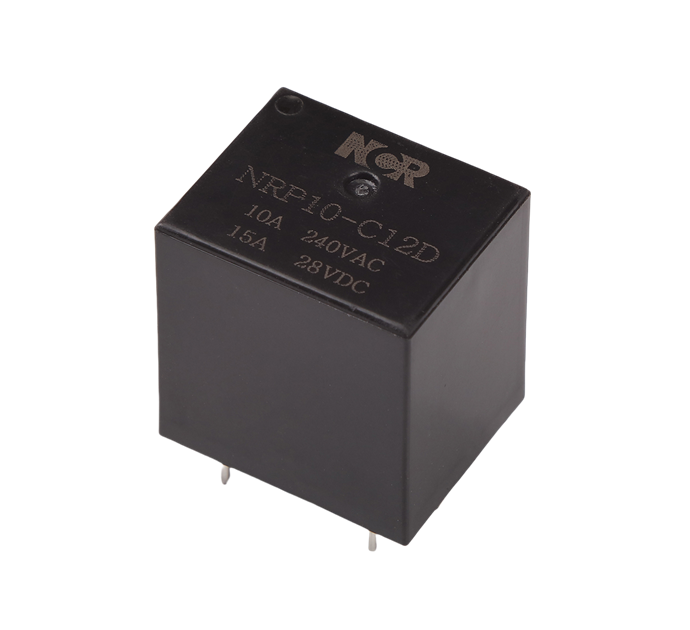

| ① Series:Miniature p.c.b Relay |
② Part No. | |
③ Contact Form:C=1C/O; A = N/O; B= N/C | |
④ Coil Voltage: 12D= 12Vdc24D= 24Vdc |
