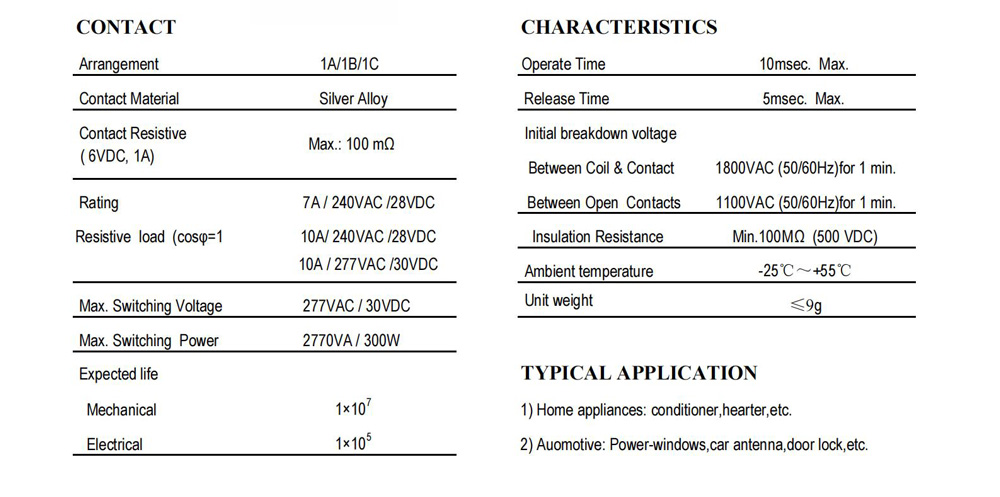

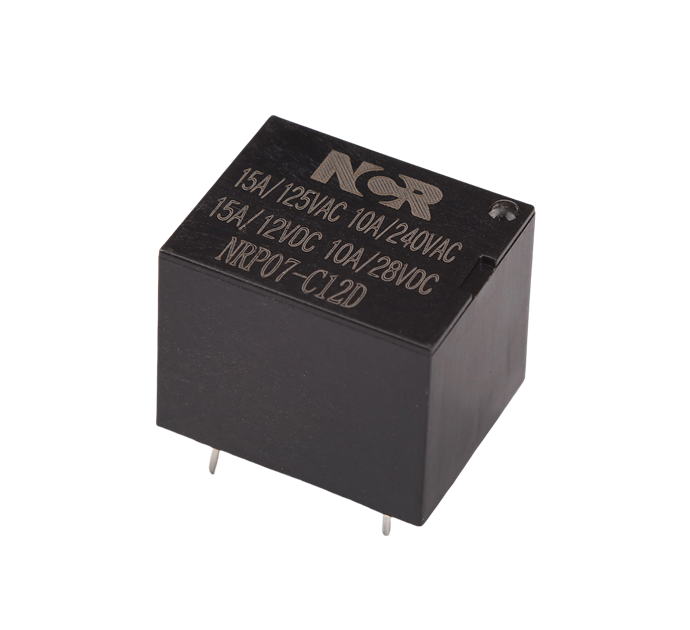

CONTACT
Arrangement | 1A/1B/1C |
Contact Material | Silver Alloy |
Contact Resistive (6VDC,1A) | Max.:100 mΩ |
Rating | 7A / 240VAC /28VDC |
Resistive load (cosφ=1 | 10A/ 240VAC /28VDC |
10A / 277VAC /30VDC | |
Max. Switching Voltage | 277VAC / 30VDC |
Max. Switching Power | 2770VA / 300W |
Expected life | |
Mechanical | 1×107 |
Electrical | 1×105 |
Characteristics
Operate Time | 10msec. Max. |
Release Time | 5msec. Max. |
Initial breakdown voltage | |
Between Coil &Contact | 1800VAC (50/60Hz)for 1 min. |
Between Open Contacts | 1100VAC (50/60Hz)for 1 min. |
Insulation Resistance | Min.100MΩ (500 VDC) |
Ambient temperature | -25℃~+55℃ |
Unit weight | ≤9g |
Typical Application
1) Home appliances: conditioner,hearter,etc.
2) Auomotive: Power-windows,car antenna,door lock,etc.

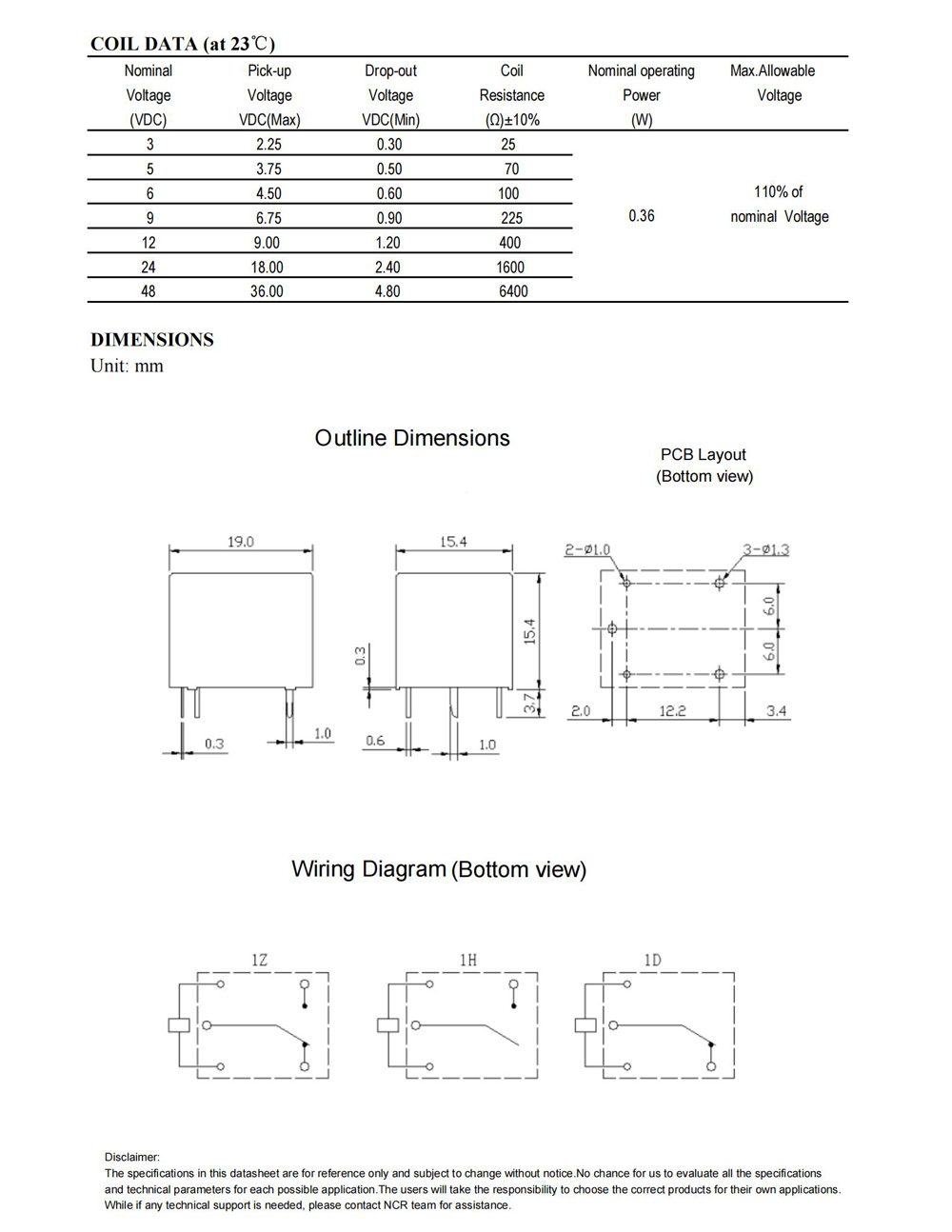

Ordering Information

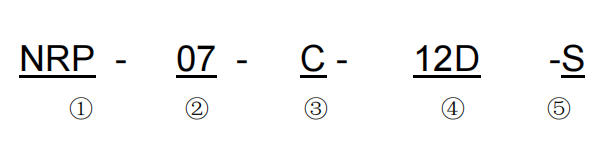

 | ① Series: Miniature p.c.b Relay |
② Part No. | |
③ Contact Form: C=1C/O; A = N/O; B= N/C | |
④ Coil Voltage: 12D= 12Vdc | |
⑤ S= Sealed type |
