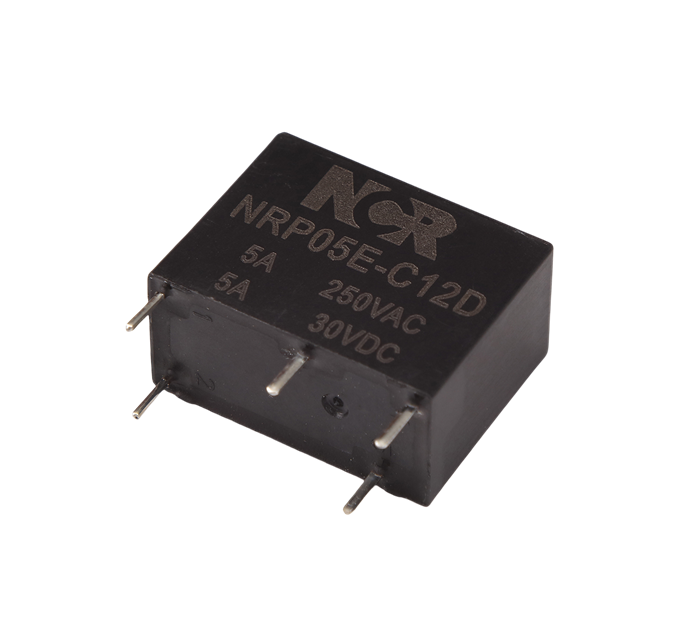

PCB Relays-NRP05E

Characteristics:

● Ultra-small type with dimensions.
● High sensitivity:200mW coil power
● UL/C-UL recognized
● Sealed type available


Product Detail

Product Tags

● Ultra-small type with dimensions.
● High sensitivity:200mW coil power
● UL/C-UL recognized
● Sealed type available

CONTACT CHARACTERISTICS
Arrangement               1A, 1C Operate Time     10ms. Max.
Contact Material           Silver Alloy Release Time      4 ms. Max.
Contact Resistive            ≤ 50 mΩ Initial breakdown voltageBetween Coil & Contact  5000VAC (50/60Hz)for 1 min.Between Open Contacts  1000VAC (50/60Hz)for 1 min.
Rating                  10A 125VAC/28VDCResistive load (cosφ=1)     5A 250VAC/28VDC
Insulation Resistance     Min.100MΩ (500 VDC)
Max. Switching Voltage       265VAC 30VDC Shock:     Endurance     10GDamage      100G
Max. Switching Current       5A
Max. Switching Power    1250VA / 140W (0.45W type) Vibration    Endurance     10 to 55 Hz ,1.5mm D.A.Damage       10 to 55 Hz ,1.5mm D.A.
Expected lifeMechanical                1×10 7 MinElectrical                  1×10 5 Min. Humidity                45%~85%RH
Ambient temperature       -40 to +70?
  Unit weight                ≤9.5g

ORDERING INFORMATION

 微信图片_20180710152258 ① Series:Miniature p.c.b Relay
② Part No.
③ Contact Form:C=1C/O; A = N/O; B= N/C
④ Coil Voltage: 12D= 12Vdc
⑤  Nil= 0.45W coil powerH= 0.20W coil power

22222
