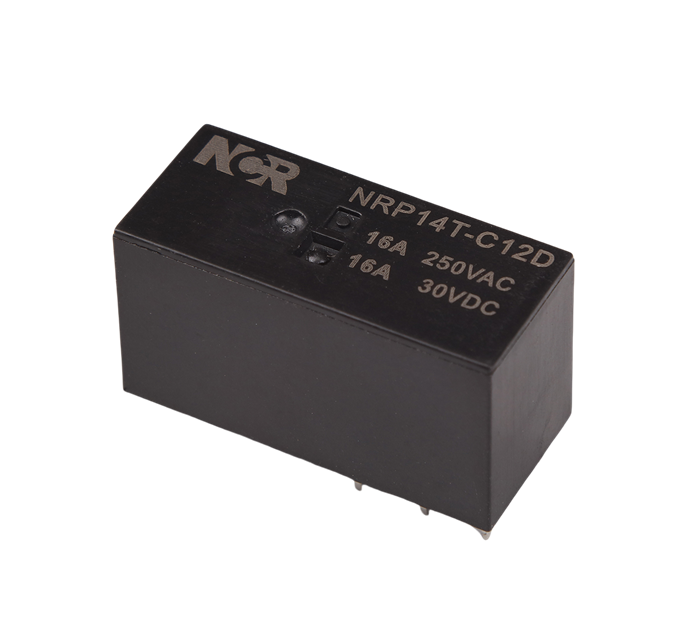

PCB RELAYS-NRP14T

● 16A 240Vac Slim relay
● Compact dimension
● UL/C-UL recognized
● Sealed type available
Availability:

● 16A 240Vac Slim relay
● Compact dimension
● UL/C-UL recognized
● Sealed type available

CONTACT

CHARACTERISTICS

Arrangement             1A / 1B / 1C

Operate Time     15 ms. Max.

Contact Material           Silver Alloy

Release Time      5 ms. Max.

Contact Resistive          ≤ 100 mΩ

Initial breakdown voltageBetween Coil & Contact  5000VAC (50/60Hz)for 1 min.Between Open Contacts  1000VAC (50/60Hz)for 1 min.

Rating                   16 A 250VACResistive load (cosφ=1)     16 A 30VDC

Insulation Resistance     Min.100MΩ (500 VDC)

Max. Switching Voltage      250VAC 30VDC

Shock:     Endurance     100 m/s 2Damage      1000 m/s 2

Max. Switching Current       16 A

Max. Switching Power   4000VA /360W

Vibration  Endurance     10 to 55 Hz ,1.5mm D.A. for 15 minutesDamage      10 to 55 Hz ,1.5mm D.A. for 6 hours

Expected lifeMechanical               1×10 6 MinElectrical                  1×10 4 Min.

Humidity                35%~85%RH

Ambient temperature       -40 to +70?


Unit weight                ≤13g

ORDERING INFORMATION

3fff2435

① Series:Miniature p.c.b Relay

② 15.6mm height special type

③ Contact Form:C=1C/O; A = N/O; B= N/C

④ Coil Voltage: 12D= 12Vdc 24D= 24Vdc

7360bad6
