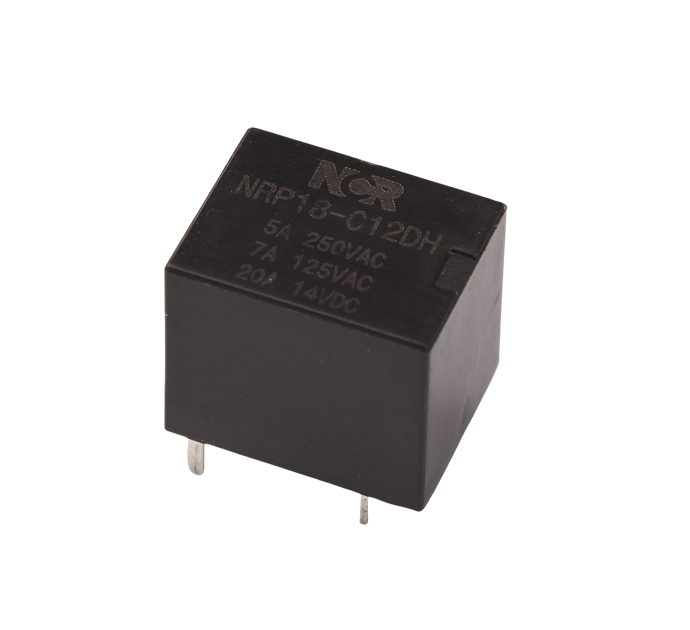

AUTOMOTIVE RELAYS-NRP18

● 20A Switching capabilities
● Subminiature,stand PC layout
● Hight resistance to vibration
● Low power consumption 0.6W only.

	①Series:  NCR  Pcb Relay Series
	②Part No.
	③Contact Form:  C=1C/O;  A = N/O;   B= N/C
	④Coil Voltage:  3, 4.5, 5, 6, 9, 12, 24  dc
	⑤S= Sealed type
	⑥Coil power : Nil = 0.8W, H =0.6W

COIL DATA (at 20 C)

Nomina lVoltage         Pick-up Voltage            Drop-out  Voltage              Coil Resistance (Ω)±10%             Max.Allowable

(VDC)                      VDC(Max)                       VDC(Min)                      0.6W                    0.8W                      Voltage

6                               4.50                                0.60                             60                          45

9                               6.75                                0.90                             135                       101                 125% of nominal

12                              9.00                               1.20                              240                       180                        Voltage

24                             18.00                              2.40                              960                       720

DIMENSIONS (Unit: mm)
