AUTOMOTIVE RELAYS-NRA07

loading

● Compact size with universal footprint
● High contact capacity: 12A
● UL/C-UL recognized
● Sealed type available
Availability:
Inquiry

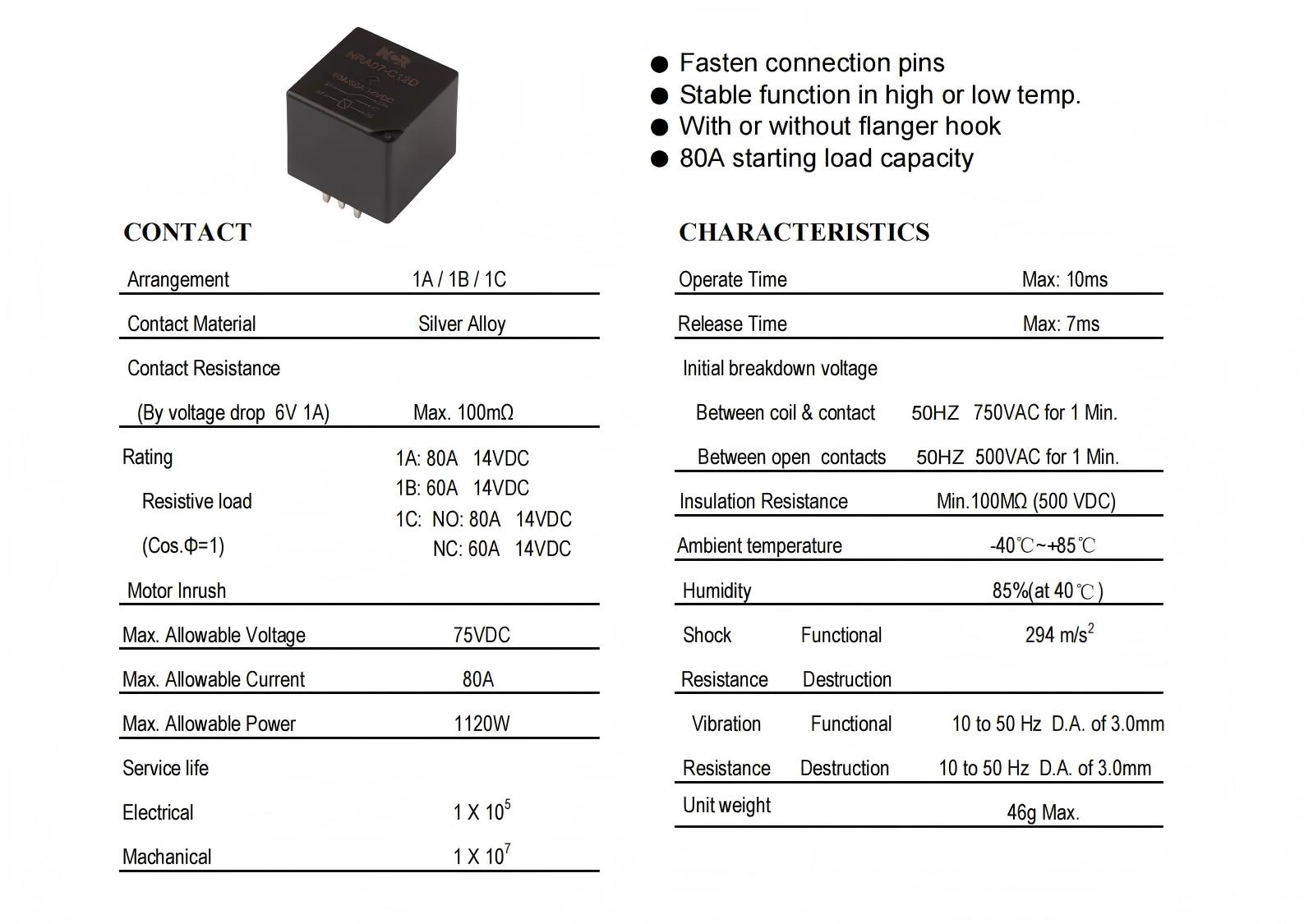

NRA07_01(1)

ORDERING INFORMATION

QQ截图20230515163809 ① Series: NCR Automotive Relay Series
② Part No
③ Contact Form: C=1C/O; A = 1N/O; B= 1N/C;
④ Coil Voltage: 6,12, 24,48 VDC
⑤ Nil= No flanger bracket (Standard) B= With flanger bracket(Insulation or Metal Bracket)

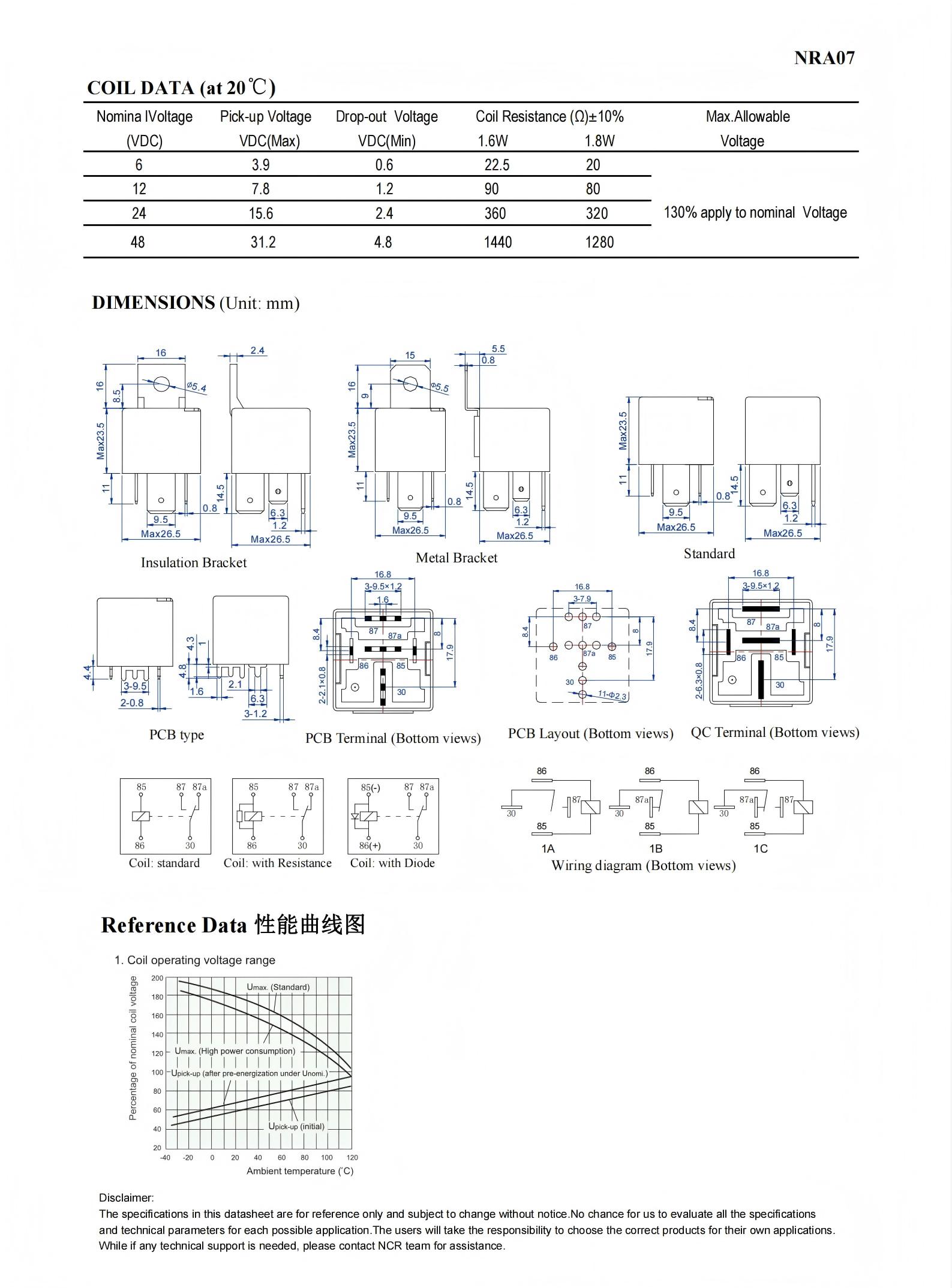

NRA07_02(1)


download NRA07.pdf
