As the global energy infrastructure transitions toward a sustainable future, the safety of Battery Energy Storage Systems (BESS) and Electric Vehicle (EV) fast-charging hubs has become a top engineering priority. Central to this safety is the High Voltage DC Relay—the critical executive component that enables or interrupts high-power flows under both normal and fault conditions. Operating in 1000VDC to 1500VDC environments requires switching technology that understands the complex fluid dynamics of Direct Current (DC) plasma. Unlike AC systems, DC has no natural zero-crossing, meaning the energy sustained in a plasma arc must be mechanically and chemically suppressed. This technical guide analyzes how NCR Industrial hardware meets these challenges through innovative material science and coordination with high-standard BESS components guide protocols.
Looking for a reliable 1500VDC relay supplier? Contact our engineering team today for customized technical support.
In technical procurement, the terms "Relay" and "Contactor" are often used interchangeably, but for high-voltage DC applications, the distinction is vital for circuit design. A High Voltage DC Relay is typically designed for control-level or lower-amperage switching, whereas a DC Contactor is engineered for main power switching, involving high inrush currents and bidirectional current management in utility grids.
Feature | High Voltage DC Relay | HVDC Contactor |
|---|---|---|
Current Range | Typically < 40A | Up to 1000A+ |
Main Application | Auxiliary Control / Signal Switching | Main Battery Disconnect / EVSE Output |
Arc Suppression | Basic Gas/Vacuum | Advanced Magnetic Blowout + Gas Mix |
Internal Structure | Compact Electromechanical | Ceramic Hermetic Brazing |
The selection process for energy storage is significantly more rigorous than for standard automotive applications due to the continuous duty cycle and bidirectional charging nature. When specifying a High Voltage DC Relay, engineers must evaluate the following four pillars of performance:
With the rise of 1500VDC BESS architectures, the relay must support a rated operational voltage that accounts for the maximum open-circuit voltage (Voc) of the battery stack. NCR Industrial relays offer dielectric withstand voltages up to 4,000V DC (1 minute), providing a safety margin that prevents surface tracking and dielectric breakdown during system transients.
In BESS safety protocols, the relay must operate in tandem with high-speed fuses. The relay's Icw rating defines its ability to carry fault current (up to several thousand amperes) for 10ms to 100ms without contact welding. This ensures the fuse has sufficient time to clear the short circuit before the relay's internal mechanism is compromised.
Because BESS involves both charging (rectifier to battery) and discharging (battery to inverter), the current direction is reversible. A polarized High Voltage DC Relay utilizing unidirectional magnetic blowout will fail when current is reversed, as the Lorentz Force will pull the arc toward the contacts rather than away from them. NCR provides non-polarized options specifically designed for bidirectional duty in storage systems.
Within the hermetic chamber, NCR utilizes a pressurized Hydrogen-based protective gas mixture. Hydrogen is selected for its superior thermal conductivity (approximately 0.18 W/m·K), which is significantly higher than that of nitrogen or air. When the relay contacts separate under a 1500VDC load, an electric arc (plasma channel) is established. The hydrogen medium facilitates rapid heat transfer away from the plasma core, promoting the fast recombination of ions. This de-ionization process effectively "quenches" the arc, preventing localized vaporization of the contacts and ensuring high-voltage DC switching safety.

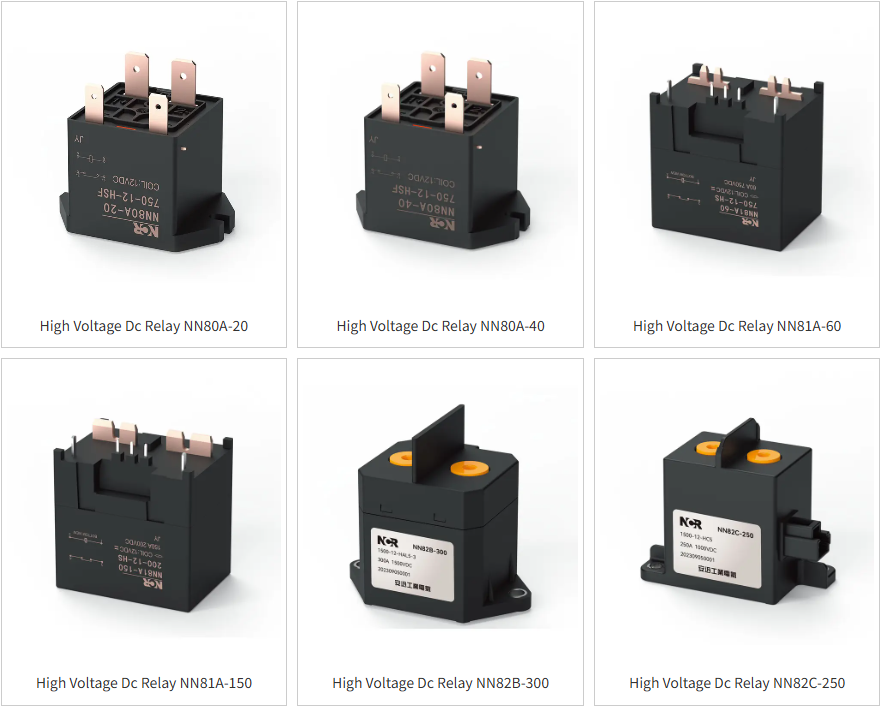

To meet varied requirements from light commercial BESS to utility-scale charging hubs, NCR Industrial provides a modular series of high-voltage switching solutions. Each model is engineered for specific load-break capacities and thermal envelopes.
Relay Series | Rated Load (Current) | Rated Voltage (Max) | Typical Application |
20A | 750V - 1000VDC | EV Auxiliary Systems / Small Solar Strings | |
40A | 1000VDC | Residential BESS / Wallbox Chargers | |
60A | 1000VDC | Light Commercial Energy Storage | |
150A | 1000VDC | Industrial BDU (Battery Disconnect Units) | |
300A | 1500VDC | Utility-Scale BESS / Mega-Fast Charging | |
250A | 1500VDC | High-Performance 800V EV Powertrains |
Need help selecting the right model for your energy project? Request a full technical datasheet now.
System reliability is only as strong as its weakest component. In industrial environments, High Voltage DC Relay failure is often attributed to three root causes:
Pre-charge circuits are designed to limit inrush, but failures in the pre-charge resistor or timing logic can subject the main contactor to massive current spikes. Utilizing NCR's Silver Tin Oxide (AgSnO2) contacts significantly increases the welding threshold compared to standard silver alloys.
If the ceramic-to-metal seal fails, the pressurized hydrogen gas escapes, and ambient air (and moisture) enters the chamber. Without the hydrogen's thermal conductivity, the arc cannot be quenched, leading to fire risks. Routine Insulation Resistance (IR) Mapping is the primary diagnostic safety protocol to detect early seal degradation.
In polarized systems, an installation error where the P1/P2 terminals are swapped leads to immediate failure during the first high-load break. Standardizing on NCR non-polarized relays for all BESS applications effectively eliminates this human error factor.
Technical procurement of a High Voltage DC Relay must be validated by international testing bodies. Adherence to these standards is not just a legal requirement but an engineering trust signal in the B2B energy sector:
IEC 60947-4-1: Requirements for DC-utilization categories (DC-1, DC-3, DC-5).
UL 60947-4-1: Safety standards for North American industrial control equipment.
ISO 6469-3: Safety requirements for electrically propelled road vehicles, focusing on isolation.
By meeting these standards, NCR Industrial ensures that our NN80, NN81, and NN82 series can withstand the thermal shocks and mechanical vibrations found in global utility grids.
The High Voltage DC Relay is far more than a simple switch; it is a precision instrument that manages the hazardous energy transition of the 21st century. By understanding the physics of plasma management and implementing rigorous selection criteria—including bidirectional arc suppression and hermetic integrity—engineers can build Battery Energy Storage Systems that are as safe as they are efficient. As 1500VDC becomes the benchmark for global energy infrastructure, the commitment to material science and standardized testing by NCR Industrial remains the industry standard for power switching reliability.
Most utility-scale Battery Energy Storage Systems utilize a ceramic-sealed HVDC Contactor, such as the NCR NN82B-300, capable of handling 300A continuous current and up to 1500VDC isolation.
Selection is based on the peak output current of the charger (e.g., 200A or 400A) and the rated operational voltage (e.g., 800V). Ensure the contactor has a magnetic blowout system to handle emergency breaks under load conditions.
Hydrogen has high thermal conductivity, which allows it to extract heat from the plasma arc faster than nitrogen or air, enabling a rapid de-ionization of the contact gap during a break operation.
No. AC relays rely on the current passing through zero 100 times per second to quench arcs. In DC, the arc is constant, and a standard AC relay will burn out or weld almost instantly at high DC voltages.
