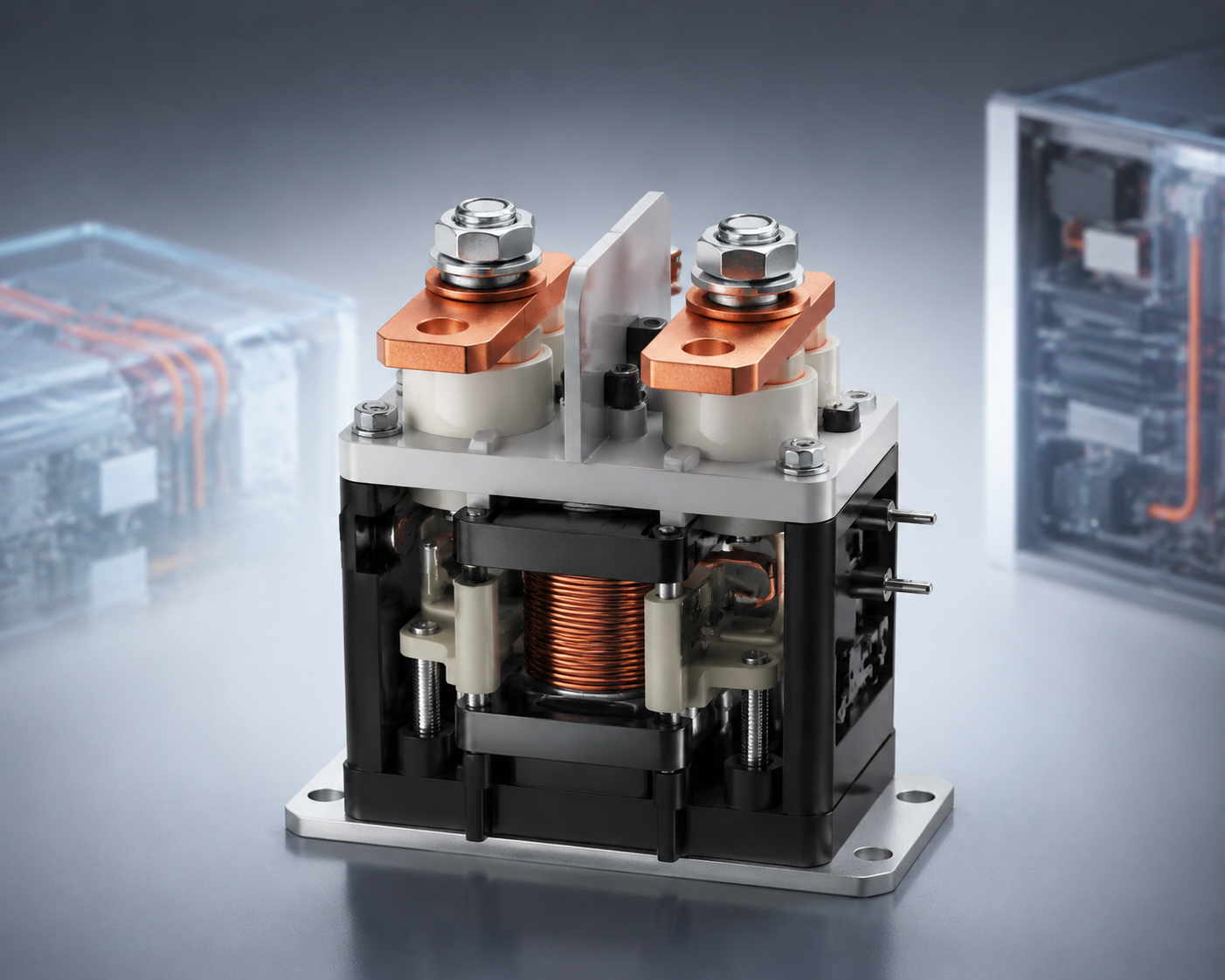

A high voltage dc relay lets you control large amounts of dc power in demanding environments. You use a high voltage dc relay to handle switching tasks safely and efficiently. Key features like insulation and switching speed make a relay essential for modern systems. The right high voltage dc relay supports everything from renewable energy to industrial machinery. You see the importance of these relays growing as the HVDC contactor relay market expects a 10.2% CAGR from 2026 to 2033.
Rising investments in renewable energy boost the need for high voltage dc relay solutions.
The demand for efficient dc power transmission increases the adoption of advanced relay technology.
Choosing the correct high voltage dc relay ensures your application meets safety and performance standards across industries.
You must consider voltage and current ratings when selecting high voltage dc relays for your application. These ratings determine how much dc power the relay can handle safely. Manufacturers offer a wide range of options, so you can match the relay to your system requirements. NCR's Magnetic Latching Relay provides current ratings of 40A, 60A, 100A, and 120A, making it suitable for both residential and industrial dc power relay needs. You see similar flexibility in other brands, as shown in the table below:
Manufacturer | Model | Voltage Rating | Current Rating |
|---|---|---|---|
NCR | Magnetic Latching Relay | Up to 1,000 VAC / 800 VDC | 40A, 60A, 100A, 120A |
JX50DT | JX50DT Series | 48V DC | 50A continuous, 100A peak |
Littelfuse | High-voltage DC contactor relay | Up to 1800V DC | Up to 800A |
ABB | Jennings line | 67A, 100A | 67A, 100A continuous |
You need to match the voltage and current ratings to your dc power relay application. High-current dc relays are essential for systems with large loads, such as energy storage or industrial machinery. NCR's relay models, like G9KA and G9KB, support up to 1,000 VAC and 800 VDC, with continuous loads up to 300A. This versatility ensures you can use these relays in photovoltaic inverters, UPS systems, and dc fast chargers.
Electrical isolation is a critical feature in high voltage dc relays. You must protect users and equipment from dangerous voltage levels. Safety certifications, such as UL, VDE, and CQC, guarantee that the relay meets international standards. You also benefit from advanced laboratory testing, like CNAS-certified reliability analysis. These certifications ensure your dc power relay operates safely in automotive and industrial environments.
Tip: Always check for certifications like AEC-Q100 and UL when choosing a dc power relay for high voltage applications.
You achieve electrical isolation through robust insulation and design. NCR's Magnetic Latching Relay uses high-quality materials to prevent voltage leakage and maintain safety. You can rely on these relays for secure operation in smart metering and automotive systems.
Vacuum and gas-filled relays offer different approaches to electrical isolation. Vacuum relays use a sealed vacuum chamber to prevent arcing during switching. Gas-filled relays use inert gases to suppress arc formation. You select vacuum relays for high-voltage, low-current applications, while gas-filled relays suit high-current dc relays with frequent switching.
Switching speed affects how quickly your dc power relay responds to control signals. Fast switching is vital in applications like smart metering and industrial automation. Solid-state relays deliver rapid switching and longer lifespan, making them popular for high voltage dc relays. You gain improved performance and reliability with faster switching speeds.
Faster switching enhances response times in critical dc applications.
Solid-state relays offer high voltage handling and extended service life.
Noise immunity ensures stable operation in environments with electrical interference.
NCR's Magnetic Latching Relay provides efficient switching and strong noise immunity. You benefit from precise control and reduced energy consumption. This relay maintains its state without continuous power, which increases energy efficiency and lowers operational costs.
Durability and reliability define the long-term value of high voltage dc relays. You need relays that withstand harsh conditions and frequent switching cycles. NCR's Magnetic Latching Relay uses advanced technology and robust materials to ensure longevity. You can depend on these relays for consistent performance in demanding dc power relay applications.
Model | Max. voltage and current | Coil voltage | Contact resistance | Special characteristics |
|---|---|---|---|---|
G9KA | Up to 1,000 VAC at 300A continuous load; 10 kV pulse strength | 12V / 24V DC | 0.2 mΩ (@200A 6VDC min. 30 minutes) | Ultra-low resistance, high energy efficiency |
G9KB | Up to 800 VDC, 100A | 12V / 24V DC | ≤ 5 mΩ | Arc cut-off technology, bidirectional dc |
G9KC | 480 VAC, 40A per pole, short-circuit-proof up to 10 kA | 12V / 24V DC | ≤ 6 mΩ | Multi-phase AC switching, mirror contact |
You notice that low contact resistance improves energy efficiency and reduces heat buildup. A simulation study showed that even a small increase in resistance can raise the temperature at the load connection, shortening relay service life. NCR's relay designs minimize resistance, which enhances reliability and efficiency in dc power relay systems.
Note: Choose relays with proven durability and low contact resistance for high-current dc relays in energy storage and charging applications.
You can trust NCR's Magnetic Latching Relay for robust performance and long-term reliability. The relay's design supports high voltage and frequent switching, making it ideal for automotive, industrial, and smart metering sectors.
You must prioritize insulation strength and creepage distance when selecting a dc power relay. These specifications protect your system from electrical faults and ensure safe operation in high-voltage dc environments. Insulation strength measures how well the relay resists voltage breakdown, while creepage distance refers to the shortest path along the surface between two conductive parts. In demanding dc applications, such as electric vehicles or industrial control, high insulation strength prevents leakage and reduces the risk of short circuits. NCR's Magnetic Latching Relay features robust insulation and optimized creepage, allowing you to maintain safety and reliability even during high-potential testing.
The mechanical and electrical life of a dc power relay determines how long it will perform reliably in your application. Mechanical life refers to the number of operations the relay can complete without failure, while electrical life measures how many times it can switch dc loads before contact wear affects performance. Contact material and gap design play a major role in extending relay longevity. You should choose a dc power relay with ratings that exceed your operational needs to minimize failures. NCR's relays use advanced contact materials and precise engineering, giving you confidence in both mechanical and electrical durability.
You need to ensure your dc power relay meets strict environmental and safety standards. Certifications like UL, VDE, and CQC confirm that the relay complies with international requirements for safety and performance. NCR's Magnetic Latching Relay meets or exceeds these standards, making it suitable for automotive, smart metering, and industrial dc applications. The relay's robust construction and quality assurance processes help you maintain compliance and protect your equipment in harsh environments.

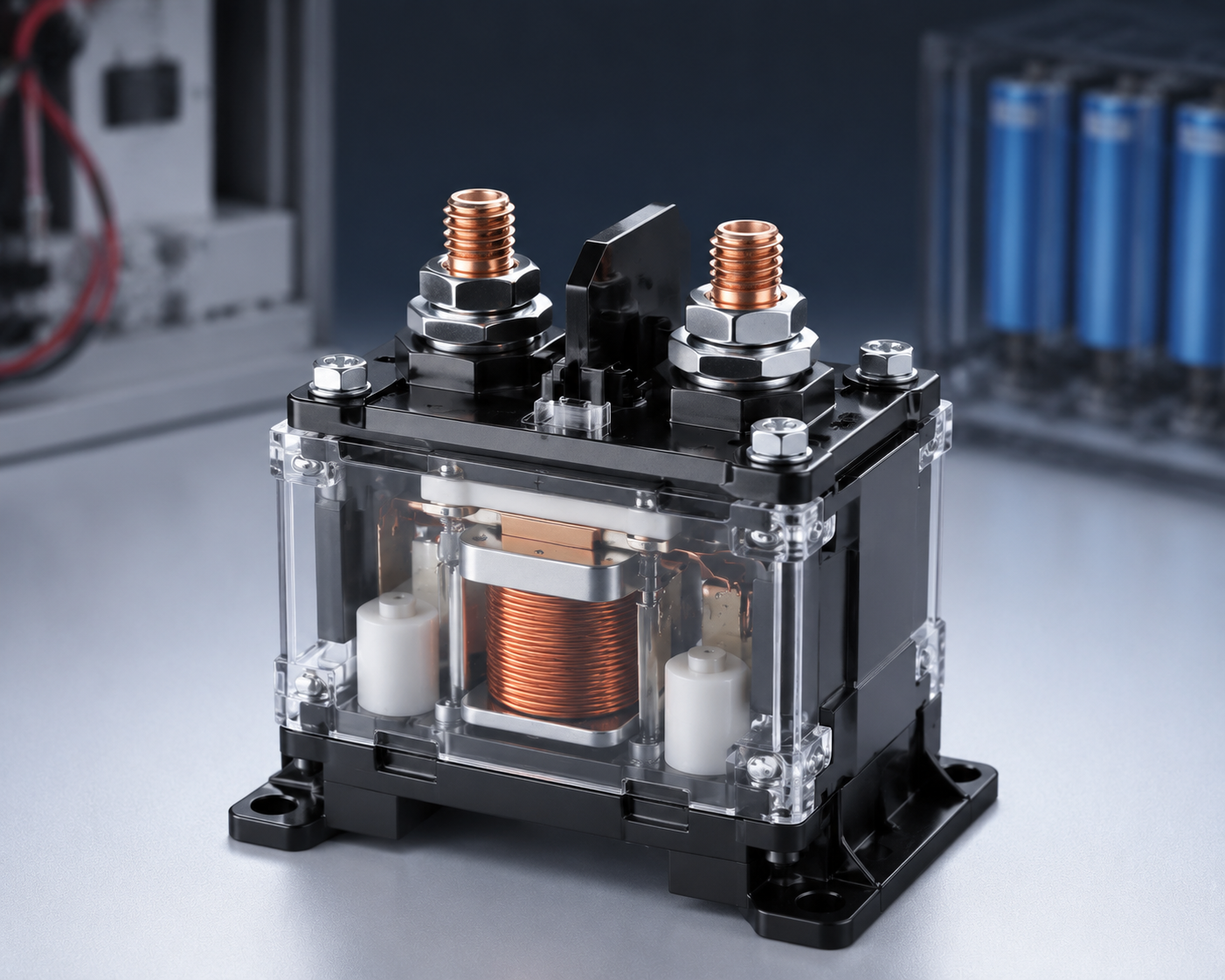

You encounter high voltage dc relays in a wide range of application scenarios. These relays play a vital role in home appliances, automotive systems, smart metering, and industrial control. In home appliances, relays manage power distribution and protect sensitive electronics. Automotive applications rely on relays for battery management, electric vehicle charging, and safety systems. Smart metering uses relays to enable remote switching and load control. Industrial control systems depend on relays to handle high dc currents and voltages, ensuring reliable operation in demanding environments. These common applications highlight the importance of selecting the right relay for each use case.
When you select the right dc power relay, you must evaluate several criteria to match your application needs. Start by checking voltage and current ratings to ensure safe operation. Review polarity requirements, as some relays are polarity-sensitive. Confirm the auxiliary contact form aligns with your controller’s input. Assess mechanical shock and vibration ratings, especially for automotive or industrial settings. Examine coil economizer compatibility if your system uses PWM control. Consider hermeticity and mounting orientation for harsh environments.
Criteria | Description |
|---|---|
Polarity Requirement | Ensure correct polarity for arc-quenching effectiveness. |
Auxiliary Contact Form | Match controller input; choose Form-A or Form-C as needed. |
Mechanical Shock and Vibration | Select relays rated for your environment. |
Coil Economizer Circuit | Verify compatibility with PWM sources. |
DC Interrupt Voltage | Confirm relay can interrupt at rated current. |
Maximum DC Break Current | Match to your application's voltage class. |
Hermeticity Rating | Check for leak-tightness in sealed environments. |
Mounting Orientation | Follow manufacturer guidelines for installation. |
You should also ensure compliance with standards like IEC 62109 and IEC 61851 for safety and reliability. NCR offers customization to meet unique application requirements, allowing you to optimize relay performance for your specific needs. By following these steps, you maximize efficiency and service life in all dc relay applications.
You rely on high voltage dc relays to manage power in advanced systems. These relays support electric vehicles and smart technologies, driving efficiency and safety. Understanding dc relay specifications helps you select the right relay for your application. NCR’s Magnetic Latching Relay delivers reliable dc performance across diverse relay and dc environments.
You save energy because the relay maintains its state without continuous power. This feature reduces operational costs and improves overall system efficiency.
You match the relay’s current rating to your system’s maximum load. Always select a rating that exceeds your highest expected current for safety.
Yes, you can. Choose relays with proper environmental ratings and certifications. NCR’s relays offer robust construction for reliable outdoor performance.
