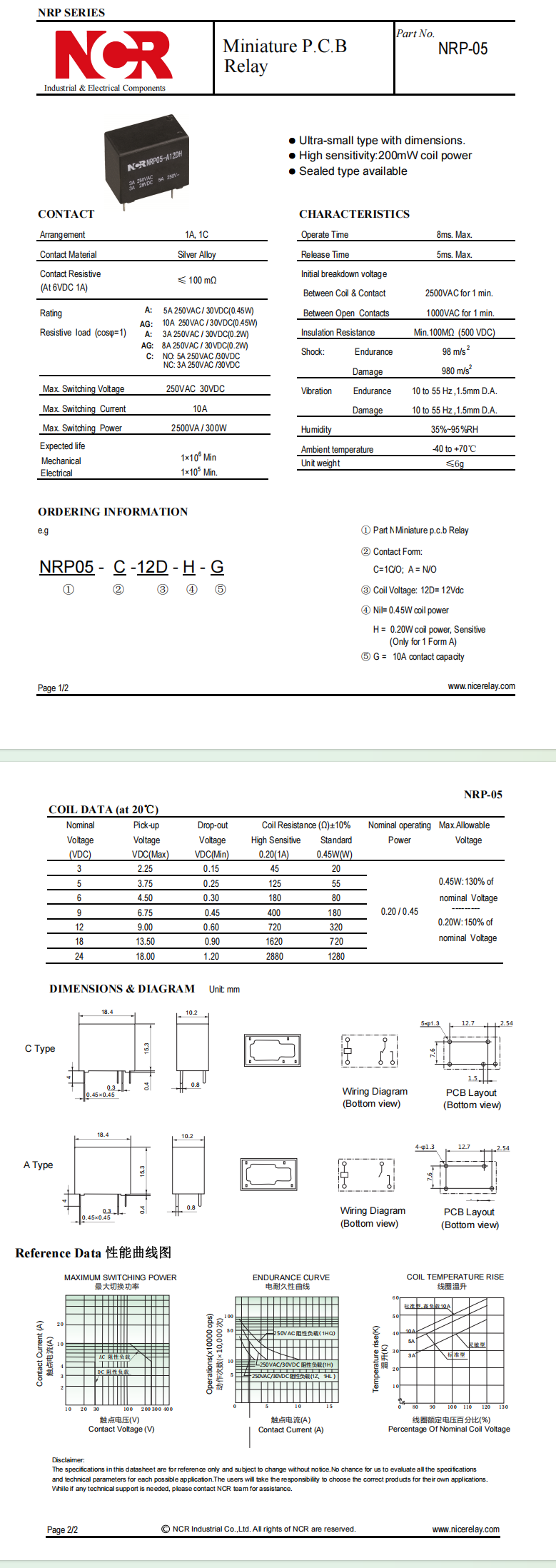

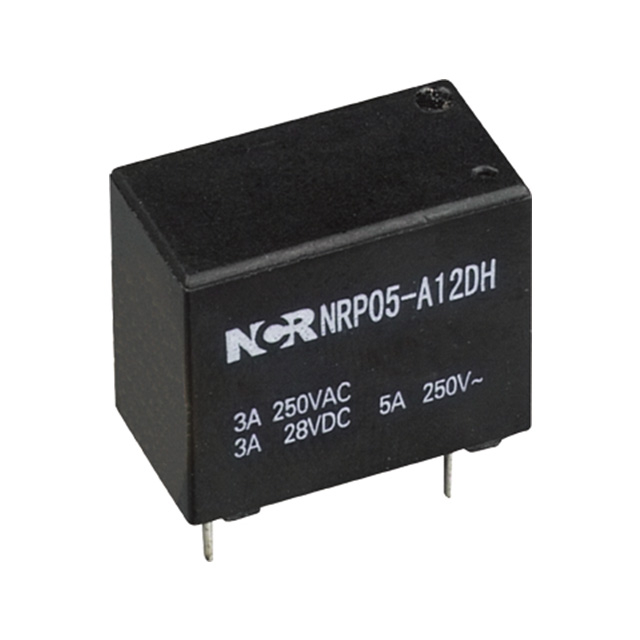

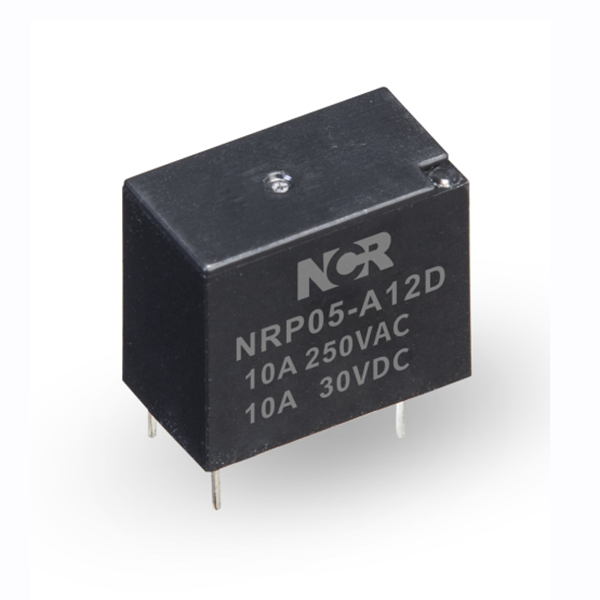

Ultra-small type with dimensions.
High sensitivity:200mW coil power
UL/C-UL recognized
Sealed type available

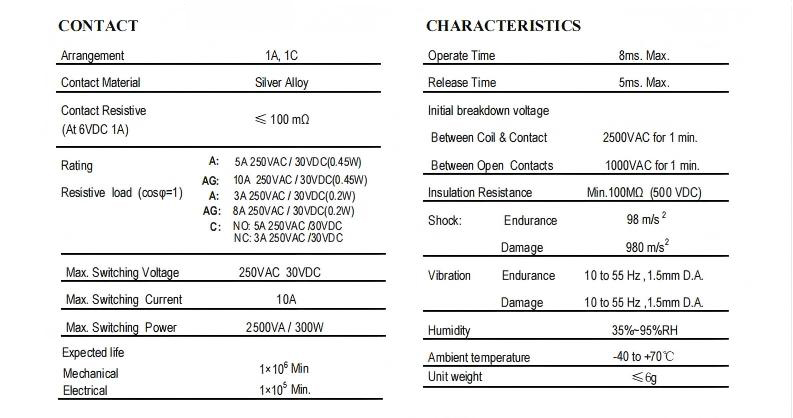

| CONTACT | CHARACTERISTICS |
| Arrangement 1A, 1C | Operate Time 8ms. Max. |
| Contact Material Silver Alloy | Release Time 4 ms. Max. |
| Contact Resistive ≤ 100 mΩ | Initial breakdown voltageBetween Coil & Contact 2500VAC (50/60Hz)for 1 min.Between Open Contacts 1000VAC (50/60Hz)for 1 min. |
| Rating A: 10A 125VAC; 5A 250VAC / 30VDCResistive load (cosφ=1) AG: 10A 250VAC / 30VDCC: or AH: 3A 250VAC / 30VDC | |
| Insulation Resistance Min.100MΩ (500 VDC) | |
| Max. Switching Voltage 250VAC 30VDC | Shock: Endurance 100 m/s 2Damage 1000 m/s 2 |
| Max. Switching Current 10A | |
| Max. Switching Power 2500VA / 300W | Vibration Endurance 10 to 55 Hz ,1.5mm D.A.Damage 10 to 55 Hz ,1.5mm D.A. |
| Expected lifeMechanical 1×10 7 MinElectrical 1×10 5 Min. | Humidity 35%~95%RH |
| Ambient temperature -40 to +70? | |
| Unit weight ≤6g |

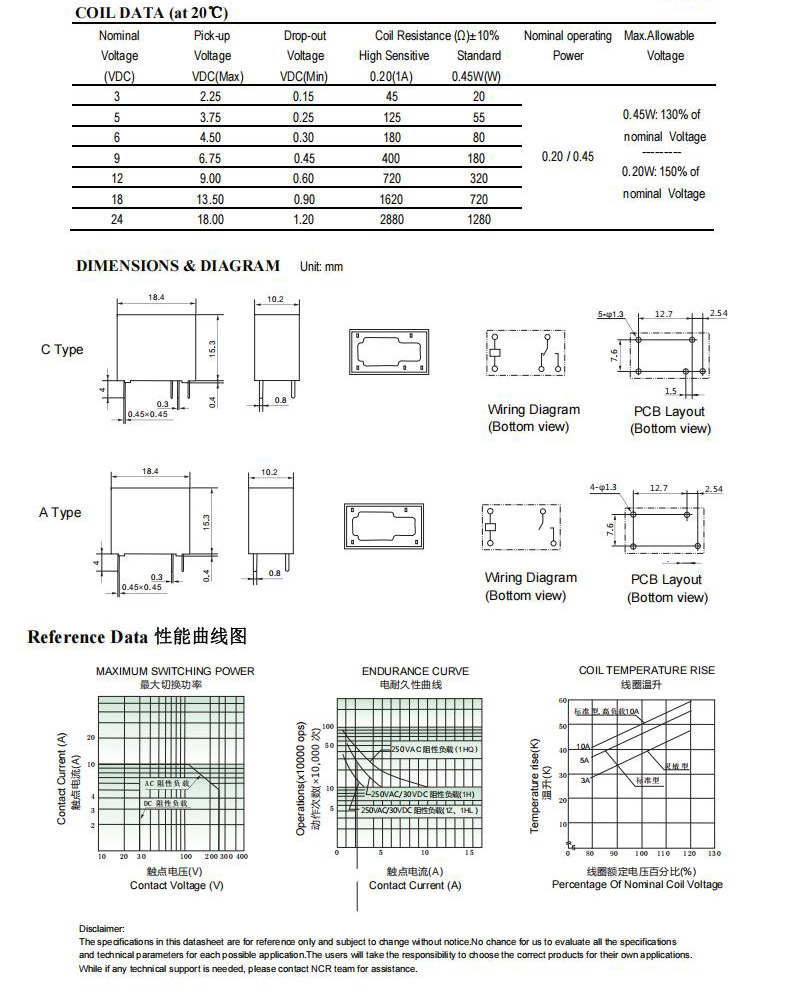

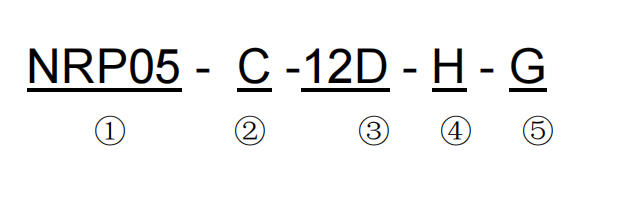

ORDERING INFORMATION
 | ① Part No. Miniature p.c.b Relay |
| ② Contact Form:C=1C/O; A = N/O | |
| ③ Coil Voltage: 12D= 12Vdc | |
| ④ Nil= 0.45W coil powerH = 0.20W coil power, Sensitive | |
| ⑤ G = 10A contact capacity |
