Selecting a PCB relay starts with a simple formula: match coil voltage to your control supply, contact rating to your load current and type, and package to your available PCB space. Over-specifying a PCB relay increases cost and consumes board space. Under-specifying causes premature contact failure and field problems. Your goal is a right-sized relay based on actual operating conditions. Three areas guide your evaluation. First, load characteristics determine what the relay must switch. Second, coil drive compatibility ensures your control circuit can operate the relay reliably. Third, contact endurance predicts how long the relay survives in your application. Each area influences how reliably your printed circuit board performs over time.
Match the relay coil voltage to your control supply. A 12V coil needs at least 9V to work reliably.
Choose contact material based on load type. Silver tin oxide resists welding for motors. Silver nickel works for resistive loads.
Compare your load's inrush current to the relay's rating. A 2A relay may fail on a 10A motor start.
Add a flyback diode across every coil. This simple part protects your driver circuit from voltage spikes.
Select a relay that fits your board space and operating temperature. Derate current at high temperatures to ensure long life.
Load type is your first selection filter. Before you open any relay datasheet, you must understand what your circuit actually switches. The load defines the electrical stress on the contacts, the arc energy during switching, and the failure modes you will face. A relay chosen without this analysis may pass bench tests and still fail in the field.
Direct current and alternating current place very different demands on relay contacts. Alternating current crosses zero every half-cycle. The arc extinguishes naturally at each zero crossing, so interruption is easier. Direct current has no natural zero crossing. The arc persists longer and proves significantly harder to extinguish. Consequently, the same relay contact typically carries a lower DC switching rating than its AC rating. The DC break rating may be substantially lower than the AC break rating. You cannot treat AC and DC ratings as interchangeable. A pcb relay rated for a given AC load may not safely switch an equivalent DC load.
Consider a microcontroller driving a resistive DC load versus an inductive motor load. The resistive load draws steady current with minimal inrush. The motor load demands high inrush current at startup and generates back EMF during switching. These two applications require different inrush handling and different contact materials. Your relay selection must account for this difference.
NCR EMRs provide galvanic isolation between control and load circuits. This isolation matters for mixed-signal boards where sensitive analog circuits share a pcb with switching loads. The control side remains electrically separated from the load side, preventing noise coupling and ground loops.
Automotive pcb relay applications face additional challenges, such as handling voltage spikes and vibration, unlike standard industrial loads. Vehicle lighting, engine control, and power distribution systems expose relays to harsh electrical and mechanical conditions. Standard industrial relays may not survive these stresses.
Resistive loads draw current in phase with voltage. They present the simplest switching case. Inductive loads store energy in magnetic fields. When you interrupt current to a motor, solenoid, or transformer, that stored energy produces a voltage spike and sustains an arc across the contacts.
Inductive loads such as motors, solenoids and transformers should use arc resistant contact materials like AgSnO2 or AgNi, with a contact rating 2 to 3 times the steady state load current to handle inrush current and back EMF.
Contact material selection directly affects relay life under inductive loads. AgSnO2 (silver tin oxide) offers superior resistance to contact welding under inductive kickback and high inrush. This material suits motors, lamps, and capacitive loads. AgNi (silver nickel) provides lower resistance to welding under high inrush. It works well for stable continuous resistive loads and sensors. AgSnO2 is explicitly recommended over AgNi for inductive load switching because it resists contact welding exceptionally well during aggressive motor starts. AgNi contacts can weld under high inrush.
A contactor includes built-in arc chutes that divide, cool, and extinguish arcs when interrupting inductive loads. A control relay has minimal or no arc suppression. Its contacts are not engineered to interrupt motor inrush or inductive arcs. You must rely on published DC switching ratings when selecting a control relay for such loads.
Coil voltage must match your control supply exactly. Measure your actual supply voltage before selecting a pcb relay. Common standards include 5 VDC, 12 VDC, and 24 VDC. The following table summarizes key characteristics.
Coil Voltage Standard | Supply Source | Power Consumption | Driver Notes |
|---|---|---|---|
5 VDC, 12 VDC | Onboard supplies | Constant, predictable wattage (resistance-limited) | Requires flyback diode for inductive spike suppression |
24 VDC | Controller output (PLC, timer, etc.) | Constant draw | Requires flyback diode |
24–240 V AC/DC | Line voltage via rectifier | Runs warmer; higher cost | One SKU covers line-voltage range |
AC coils (110–240 VAC) | Direct line power | Pull-in current higher than holding current | Shading ring prevents AC hum |
The 75% rule applies to DC coils. The device must see at least 75% of rated voltage to pull in reliably. A 12 V coil requires 9 V minimum. Voltage below this threshold causes chattering or failure to engage.
Power consumption also matters when multiple coils are active. Multiple coils energized simultaneously draw a combined current that must be supplied by your regulator.
NCR offers coil voltage options from 5 VDC to 24 VDC with low power consumption, making these relays suitable for battery-powered or energy-sensitive designs. This range gives you flexibility for various control circuits while maintaining energy efficiency.
Your driver circuit, a transistor or an integrated circuit, must source the coil current and survive the inductive kickback. A flyback diode placed across the coil absorbs this energy, protecting the driver component of your pcb relay—not the relay itself.
Choose the diode based on three key parameters. Peak surge current must exceed the coil operating current. A standard 1N4007 rectifier diode works for most low-frequency applications. Reverse voltage rating should exceed your supply voltage with a safety margin. Switching speed matters primarily for PWM or high-frequency circuits; fast-recovery or Schottky diodes minimize MOSFET losses and EMI. Evaluate the diode's forward current rating alongside the operating current for additional margin.
Omitting this diode allows the inductive spike from the coil to exceed 100 V, easily destroying a sensitive driver IC. Always include a flyback diode in your pcb layout for each coil. This simple addition ensures reliable operation of your pcb design.
Contact ratings tell you what the relay can switch safely. You must read these ratings carefully because they define the boundary between reliable operation and premature failure. Three factors interact here: current, voltage, and contact material. Each one shapes how long your pcb relay survives in real operating conditions.
The current and voltage rating on a datasheet represents a specific test condition. Manufacturers test contacts under defined loads, often resistive, at a particular voltage. Your application may differ significantly from that test setup. You must verify that your actual load falls within the tested envelope.
Contact material determines how the relay behaves under different load types. Silver tin oxide resists welding under high inrush. Silver nickel handles stable resistive loads well. The table below summarizes common materials.
Contact Material | Best Application | Key Property |
|---|---|---|
AgSnO2 | Inductive loads, motors | Resists contact welding |
AgNi | Resistive loads, sensors | Stable low resistance |
NCR offers contact ratings suitable for a range of currents in single-pole and double-pole configurations. This range covers both low-signal switching and high-power needs. You can select a pcb relay that matches your load without over-specifying.
Steady-state current flows continuously during normal operation. Inrush current spikes briefly when a load starts. A motor may draw five to ten times its running current during startup. A relay rated for a given steady-state current may only handle a larger inrush for a limited number of operations because the contacts cannot handle the surge. The arc energy during inrush exceeds what the contact material can withstand repeatedly.
Always compare your load's inrush current to the relay's rated switching current. A relay rated for a given steady-state current may only handle a larger inrush for a limited number of operations.
Derating protects reliability across temperature extremes. A relay rated for a wide temperature range may still need current derating above certain temperatures. Contact resistance rises with temperature. The coil also draws more power when hot. You must reduce the switched current at elevated temperatures to maintain contact material and long-term reliability.
Environmental resistance and operating temperature specifications guide this derating. Check the datasheet for a derating curve. Apply it to your worst-case ambient temperature inside the enclosure.
Safety certifications and compliance standards also affect selection. RoHS compliance matters for regulated markets. These certifications ensure the relay meets environmental and safety requirements. NCR products are built to meet industry compliance requirements, simplifying your certification process and reducing safety review time.
Evaluate certifications early in your design cycle. A relay without proper compliance documentation can block your product from entering certain markets. Check that your chosen pcb relay carries the certifications your target market requires.
Switching speed and operating life present a fundamental trade-off in relay design. Faster switching accelerates contact wear. Slower switching reduces throughput. Your selection must balance these factors against available PCB space. Mechanical endurance and electrical endurance measure different failure points. A pcb relay may last millions of operations unloaded but fail quickly under rated load.
Mechanical endurance counts operations without electrical load. A typical pcb relay achieves millions of such operations. NCR EMRs consistently exceed this mechanical benchmark. Electrical endurance counts operations under full load current. Arcing erodes contact material with each switching cycle. Sealed contact chambers suppress arc formation. Magnetic arc quenching extends this relay's lifespan considerably. Advanced silver-metal oxide composites improve durability under high-inrush loads. Adaptive arc-control algorithms help overcome contact erosion under high DC voltage. Sealed gas-filled chambers using hydrogen or nitrogen suppress arcs in high-voltage applications. Solid-state hybrid relays combine mechanical contact reliability with MOSFET quick-switching to reduce contact wear. Smart diagnostics via embedded sensors enable predictive maintenance for critical circuits. These techniques extend electrical life. You still must derate for your specific load and switching frequency.
Compact relays conserve printed circuit board space. A smaller footprint may limit contact rating or clearance between high-voltage traces. Balance package size with your circuit design. A pcb relay socket simplifies prototyping and enables field-replaceable designs. The pcb relay socket choice directly impacts board layout efficiency. Consider the pcb relay socket footprint when laying out your board. Choose a pcb mount relay socket pin configuration and mounting type that matches your relay. Ensure adequate clearance around the pcb relay socket for airflow. The pin configuration and mounting type of the pcb mount relay socket must align with your PCB layout rules. Minimizing ground loops in your PCB layout improves operation reliability. A properly designed pcb relay socket reduces noise coupling between control and load circuits. Installation and maintenance considerations for the pcb relay socket include ease of insertion and extraction. Use a pcb relay socket with a locking mechanism for vibration-prone environments. An automotive pcb relay must handle extreme vibration and temperature fluctuations. This automotive pcb relay often requires a dedicated pcb mount relay socket for secure attachment. Environmental resistance and operating temperature specifications guide socket material selection. Perform DFM review and post-assembly testing including contact resistance, dielectric strength, and thermal stability. These validation steps ensure your pcb relay socket installation meets quality standards. Select a pcb relay socket that accommodates your relay's pin configuration and mounting type for reliable operation. Verify that the pcb relay socket fits your board layout before finalizing. A pcb mount relay socket provides secure attachment for field-replaceable designs.

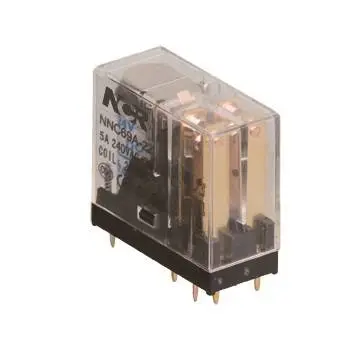

You now have the criteria. Apply them in a fixed order to avoid rework. Start with the load. Define the steady-state current, the inrush current, and the load type. A 2A resistive load and a 2A motor load demand different contact materials and ratings. Write these values down before you open any datasheet.
Next, match the coil. Confirm your control supply voltage and the coil current for each relay. Four coils at a typical current draw each add up to a total current that must be supplied by your regulator. Check that your regulator supplies this current while staying above the 75% pull-in threshold. Add a flyback diode across every coil to protect your driver IC.
Then, verify contact ratings against your load. Compare your inrush current to the relay's switching rating. Apply a derating curve for your worst-case ambient temperature. Check that the contact material suits your load type. Silver tin oxide resists welding under inductive kickback. Silver nickel suits stable resistive loads.
Finally, confirm the package and endurance. Mechanical life exceeds electrical life in most applications. Choose a footprint that fits your printed circuit board without sacrificing clearance. A pcb relay socket simplifies prototyping and field replacement. Select a pcb mount relay socket that matches your relay pin configuration. Review installation and maintenance considerations for your socket choice. A locking pcb relay socket helps in vibration-prone environments. Perform a pcb relay socket specification comparison before you commit. This comparison covers pin layout, mounting type, and current rating. Document your pcb relay socket specification comparison for your design review. A second pcb relay socket specification comparison against a second vendor reduces supply risk. Verify safety certifications such as RoHS and UL for your target market. Run a DFM review and test contact resistance, dielectric strength, and thermal stability after assembly. This sequence gives you a right-sized relay for your pcb.
NCR removes much of the guesswork from relay selection. The company manufactures a broad portfolio of electromechanical relays, including many models for various applications. Each model targets specific switching needs in industrial automation, home appliances, telecommunications, and HVAC systems. You can review coil voltage options from 5 VDC to 24 VDC and contact ratings for a variety of loads. This range lets you match a pcb relay to your actual load without over-specifying.
NCR also supports your design with a range of relay options to suit your application. You can request a pcb relay socket that fits your board layout. A pcb mount relay socket simplifies prototyping and field replacement. The socket holds the relay securely during vibration. You select a socket material that matches your operating temperature. The socket pin configuration must align with your PCB footprint. A locking socket adds security in harsh environments. The socket reduces noise coupling between control and load circuits. You verify the socket fits before finalizing your design. A well-chosen socket extends relay service life. The socket also speeds maintenance and reduces downtime.
NCR products are built to meet common industry compliance requirements, simplifying your market entry. The company tests every relay for key performance parameters. This testing supports your own validation and certification efforts. NCR provides technical support for your design efforts. You gain a partner who helps you balance cost, board space, and reliability. Proper relay selection with NCR reduces warranty returns and supports smoother production validation.
Selecting a pcb relay demands a full view of your operating environment. One specification alone cannot predict field performance. Match the relay to your actual load, control circuit, switching conditions, expected lifetime, and pcb layout. This approach avoids unnecessary cost and board space. It also reduces premature contact failure.
A right-sized relay supports long-term reliability. You gain fewer warranty returns and more dependable products. Proper selection also smooths certification and production validation. Your pcb design benefits from fewer surprises during testing. Safety compliance becomes easier when the relay matches its application. Review every operating condition before you commit to a part. This discipline protects your pcb and your schedule.
Compare your load's inrush current to the relay's switching rating. A motor may draw five to ten times its running current at startup. A contact rated for a certain steady-state current can fail on a much higher inrush. Choose silver tin oxide contacts for inductive loads.
Add up the coil currents first. Four coils at a typical current draw each add up to a total current. Your regulator must supply this combined current while keeping voltage above the 75% pull-in threshold. Check the datasheet for each coil.
The coil stores energy as a magnetic field. Interrupting current releases a voltage spike that can exceed 100V. A diode across the coil absorbs this spike and protects your driver IC. A 1N4007 works for most low-frequency circuits.
Mechanical life counts operations without load. Electrical life counts operations under full load current. Arcing erodes contact material with each cycle. Sealed chambers and magnetic arc quenching extend electrical life. Derate for your specific load and switching frequency.
Match the socket pin configuration to your relay footprint. Select a socket material rated for your operating temperature. A locking socket adds security in vibration-prone environments. Verify the socket fits your board layout before finalizing. A well-chosen socket speeds maintenance and reduces downtime.
