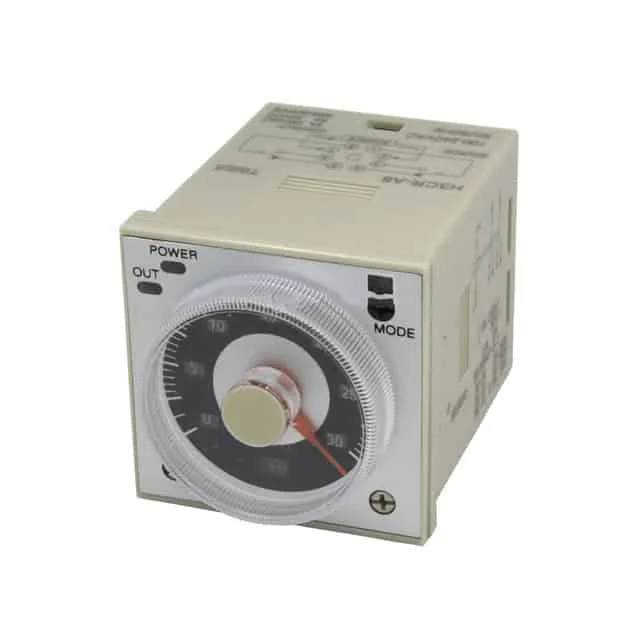

Picture a factory conveyor belt that must pause for five seconds after each box passes a sensor. You need precise control over that pause. A time relay, also known as a time delay relay, delivers this control. This electrically operated switch uses a built-in timer to determine when a circuit opens or closes. You set the delay, and the relay handles the rest.
The timer relay operates on a simple principle: you define the timing interval, and the device counts down before switching contacts. This article explores the working principle behind these devices, the different types available, and where you will encounter them in everyday systems. Understanding this component helps you appreciate modern automation's precision.
A time relay operates on a straightforward concept: it combines standard switching capability with an internal timing mechanism. Unlike a standard electromagnetic relay that responds instantly to its coil, a time delay relay introduces a deliberate pause between the trigger signal and the contact action. This pause transforms a simple switch into a precision timing instrument.
Every timer relay contains several essential components working together. The input circuit receives the control signal, typically from a sensor, push button, or programmable logic controller. This signal energizes the internal timing mechanism, which serves as the heart of the device. In many designs, this mechanism uses a capacitor that charges at a controlled rate. Other models employ digital counters that track oscillations from a crystal oscillator. Both approaches achieve the same goal: measuring a precise interval.
The output contacts represent the switching portion of the relay. These contacts remain in their normal state until the timing cycle completes. Once the preset time elapses, the contacts change position, either opening or closing the load circuit. A power supply section feeds the internal electronics, ensuring stable operation across the relay's rated voltage range. For example, a time relay designed for AC circuits up to 380V at 50Hz or DC circuits up to 24VDC provides flexibility across different power systems.
The control interface lets you set the delay duration. Depending on the model, you adjust this via a rotary dial, a potentiometer, or digital buttons. Some advanced units offer multiple timing ranges, allowing you to select from milliseconds to hours. This adjustability makes the timer relay adaptable to diverse applications.
Setting a time delay follows a logical sequence. You first determine the required interval for your application. Next, you adjust the control interface to that value. When the trigger signal arrives, the timing mechanism starts counting. The output contacts remain in their resting position during this countdown. Only when the count reaches zero do the contacts change state.
Consider a practical example: a stairwell light that stays on for 60 seconds after someone presses the button. Pressing the button sends power to the timer relay's input. The internal timing mechanism begins counting down from 60 seconds. The output contacts close immediately, energizing the light. When the count reaches zero, the contacts open, and the light turns off. This simple sequence demonstrates the core working principle: the relay controls not just whether the circuit conducts, but precisely when it conducts.
The timing mechanism's accuracy determines the relay's reliability. High-quality units deliver consistent, repeatable timing across thousands of cycles. This precision matters in applications where even a fraction of a second affects product quality or safety. The relay's long operational life and low energy consumption further enhance its value, reducing maintenance requirements and operational costs over time.
Engineering Concept
Relay = Switching
Timer Relay = Switching + Time Delay
A timer relay does not just turn a circuit ON/OFF; it also determines when it turns ON/OFF, adding a preset time delay to the switching action.
This distinction separates a standard electromechanical relay from a time delay relay. The former responds instantly to coil energization, making it suitable for general industrial control. The latter introduces programmable delay functions, enabling automated sequences in production lines, lighting systems, and motor starting control. Understanding this working principle helps you select the appropriate device for your specific timing requirements.
Time delay relays come in several functional configurations. Each type serves a distinct purpose in automation and control systems. Understanding these categories helps you select the right device for your specific application. The primary distinction lies in when the delay occurs relative to the trigger signal.
The on-delay timer represents the most common configuration. When you apply power to the input, the timing mechanism begins counting. The output contacts remain in their resting state during this countdown. Only after the preset time elapses do the contacts change position. This function suits applications requiring a pause before equipment starts. For example, you might use an on-delay timer to stagger motor startups on a production line, preventing excessive inrush current that could trip circuit breakers.
The off-delay timer operates differently. The output energizes immediately when you apply the trigger signal. When you remove the input, the timing mechanism starts counting. The output stays active for the preset duration before returning to its normal state. This configuration proves valuable for cooling fans that must run after a machine shuts down, or for stairwell lighting that remains illuminated for a set period after someone leaves.
The internal construction of an off-delay timer often employs a dual-winding latching relay. This design uses two separate coils to control the switching action.
When current flows through the set coil (S), magnetic flux generates in the internal magnetic circuit, creating electromagnetic force to attract the armature. This action closes the normally open contact and opens the normally closed contact, maintaining the set state. When the off-delay ends, current flows through the reset coil (R), causing the closed normally open contact to open and the opened normally closed contact to close again.
This dual-coil arrangement provides reliable state retention without continuous power consumption, contributing to the relay's low energy operation.
The interval timer provides a different switching pattern. When you trigger the input, the output turns on immediately. The timing mechanism then counts down the preset duration. When the count reaches zero, the output turns off. This function works well for applications like conveyor belt lubrication systems that need a brief burst of operation after each cycle.
Cyclic relays continuously repeat an ON/OFF sequence. You set both the ON duration and the OFF duration independently. The relay cycles through these intervals repeatedly until you remove the input signal. This configuration suits applications like flashing warning lights, alternating pump operation, or periodic ventilation systems. The cyclic function eliminates the need for external timing devices, simplifying your control panel design.
Many modern timer relay units combine multiple functions into a single device. You select the desired mode via a rotary dial or DIP switch on the housing. This versatility reduces inventory requirements and simplifies installation. One unit can serve as an on-delay timer, off-delay timer, interval timer, or cyclic timer depending on your configuration.
The working principle remains consistent across all types. A timing mechanism measures the preset interval, then triggers the contact switching. The difference lies in the sequence: before switching, after switching, or continuously. Understanding these sequences helps you match the relay function to your operational requirements. Selecting the correct type ensures your system operates with the precision and reliability you expect from a quality time relay. The time delay relay you choose directly impacts system performance, so consider the timing sequence carefully before making your selection.
You will find a time relay essential in many industrial environments. A production line often requires multiple motors that start in sequence. A timer prevents all motors from energizing simultaneously, which creates a massive current surge. You can use a time delay relay to stagger each motor start. The first motor starts immediately. The timer counts down a preset interval. The second motor engages next. This sequence continues until all motors operate. The working principle of the timing mechanism ensures consistent timing across every cycle. This precision protects your equipment and prevents nuisance tripping. The sequence ensures smooth operation and prevents electrical stress.
A high-power machine draws high inrush current during startup. You can install a relay to delay the machine start. This time delay allows other equipment to stabilize first. The relay also manages emergency shutdown sequences. An emergency stop triggers a timer that ensures specific equipment shuts down in the correct order. This prevents damage and enhances safety. The internal system delivers high-accuracy timing. You benefit from reduced downtime and lower maintenance costs. The long operational life of the relay means fewer replacements. Its low energy consumption also cuts operational expenses. You reduce your overall energy bill.
You encounter timer relays in everyday devices. An HVAC system provides a clear example. The fan must continue running for a short duration after the compressor stops. This clears residual cool air from the ducts. A timer relay controls this fan delay. The relay keeps the fan circuit closed for the preset period. It opens the circuit after the time expires. This simple action improves system efficiency and comfort. You also extend the life of the HVAC components.
Automatic lighting controls also rely on timers. You walk into a hallway and press a light switch. The light turns on immediately. A timer starts counting down. The relay opens the circuit after 60 seconds, and the light turns off. You never need to return to switch it off. This saves energy and adds convenience. The precise timing of the relay ensures consistent operation. The device handles the control automatically.
A washing machine uses a timer to manage each cycle stage. It controls when water fills, when the drum agitates, and when the machine drains. Each stage operates for a specific duration. The relay's timing system ensures accurate timing for every stage. This delivers consistent cleaning results. The low energy consumption of the relay contributes to the appliance's overall efficiency. You also benefit from the long operational life, reducing the need for repairs. This reliability keeps your appliance running smoothly for years.
A time relay remains fundamentally a switching device with a built-in time delay function. You choose between on-delay, off-delay, interval, or cyclic configurations to match your operational sequence. Each type serves a distinct purpose, from staggering motor starts to managing fan shutdown delays.
These devices deliver precision, safety, and automation across industrial systems and everyday appliances. The timing mechanism ensures consistent, repeatable performance you can trust. You reduce maintenance costs and improve system efficiency with every installation.
As automation expands, the humble time delay relay stays essential. You rely on its dependable timing for critical actions. The timer relay proves that simple components often deliver the most significant impact. Choose quality timing control, and your systems operate with confidence.
For reliable timing control in industrial, commercial, and home applications, choosing the right supplier is just as important as selecting the right relay. NCR provides timer relay solutions designed for applications that require accurate, stable, and repeatable time-delay control. Its products can support different timing functions and control requirements, making them suitable for HVAC systems, lighting controls, automation equipment, appliances, and other electrical applications.
With experience in relay manufacturing and electrical control solutions, NCR can provide timer relay options for different control systems and operating conditions. If you are looking for reliable time delay relays for a new project or need help selecting a suitable timing control solution, you can contact NCR to discuss your application requirements and product specifications.
An on-delay relay waits before activating your load. An off-delay relay keeps the load active for a set period after the trigger signal ends. You choose based on whether you need a delay before start or after the stop signal.
Yes. Many modern units combine on-delay, off-delay, interval, and cyclic functions in a single device. You select the mode via a rotary dial or DIP switch, reducing inventory needs.
You need a relay compatible with your system voltage. Our models support AC circuits up to 380V at 50Hz and DC circuits up to 24VDC, ensuring broad compatibility with industrial and commercial power systems.
Our time relay delivers a long operational life with low energy consumption. This design reduces maintenance needs and replacement frequency. You benefit from reliable performance across thousands of cycles.
The internal timer ensures high-accuracy timing control for consistent, repeatable operations. This precision guarantees your automated processes maintain exact intervals cycle after cycle.
