A microswitch is a small, sensitive snap-action switch that activates with minimal physical force. You might press a plunger or lever, and the internal mechanism responds instantly. Despite its compact size, this device serves as a precision component in countless everyday items, from household appliances to industrial machinery.
These micro switches operate on a simple principle: a tiny movement triggers a rapid, reliable change in electrical state. You'll find miniature snap-action switches in door interlocks, vending machines, and safety systems. Their design ensures consistent performance even after millions of cycles.
This post explains the internal mechanism behind that tiny press. You'll learn how a spring-loaded system produces a swift toggle, delivering dependable switching every time. No background history or complex theory—just the practical workings of this essential component.
The heart of every microswitch is its snap-action mechanism, an elegantly simple system that delivers precise, repeatable switching. This mechanism relies on an over-center design, where a spring-loaded blade moves from one stable position to another with a rapid snap. The contact transfer occurs at a defined actuator position, driven by the spring releasing over-center rather than by your hand speed. This design ensures a repeatable operating point and a short electrical arc.
The internal spring is the driving force behind the snap-action process. You press the plunger, and the system begins storing mechanical energy. The spring's design allows it to accumulate energy gradually during the pre-travel phase and then release it all at once. This energy storage and sudden release creates the characteristic snap action. Here is the sequence:
A pretensioned spring, formed as a shaped strip, is held stable against one fixed contact. The system remains in this resting state until you apply force.
The plunger pushes the spring through the pre-travel range. No electrical change occurs during this phase. The spring accumulates potential energy.
At a precise point, the spring passes its center of geometry. This threshold triggers the release of all stored energy.
The moving contact rapidly leaves one fixed contact and lands on the other. This transition happens in milliseconds, independent of how slowly you press the plunger.
Reversing the plunger snaps the spring back at a different point called the differential travel. This hysteresis prevents contact chattering.
This mechanism was patented in the early 1930s, and its fundamental geometry remains largely unchanged. The rapid contact movement minimizes electrical arcing, extending the switch's operational lifespan. You get a clean, bounce-free transition every time.
Standard micro switches contain three terminals: Common (COM), Normally Open (NO), and Normally Closed (NC). Understanding these points is essential for designing any control system that uses micro switches. These micro switches provide precise control in demanding environments.
The COM terminal acts as the shared connection point. It serves as the common return path for both the NO and NC contacts. The NO terminal remains open in the resting state, meaning no current flows through it. When you press the plunger, the snap-action mechanism closes the NO circuit, allowing current to flow. This behavior makes the NO terminal ideal for start signals or trigger functions. The NC terminal behaves in the opposite manner. It stays closed in the resting state, allowing current to flow through it. Pressing the plunger opens the NC circuit, interrupting the current. This makes the NC terminal perfect for safety functions and stop signals, providing fail-safe operation. The fail-safe design ensures that if the switch fails or the wire breaks, the circuit opens by default, protecting equipment and personnel.
The table below summarizes the behavior:
Terminal | Normal State | Pressed State | Function |
|---|---|---|---|
COM (Common) | Shared connection point | Shared connection point | Common return path for both NO and NC contacts |
NO (Normally Open) | Open circuit | Closed circuit | Used for start/trigger signals; closes when actuated |
NC (Normally Closed) | Closed circuit | Open circuit | Used for stop/safety functions; opens when actuated for fail-safe operation |
The snap-action mechanism uses a spring-loaded internal structure. As you depress the plunger, mechanical energy stores in the spring until a critical threshold. At this point, the stored energy releases suddenly, causing the contacts to snap from one position to the other. This release is independent of the plunger's speed. Even a slow press results in an instantaneous contact transition. The entire travel distance is minimal, typically only 1-2mm, and the movement is a single, clean motion that eliminates uncertain contact states. This consistent behavior makes micro switches a trusted component in control systems where reliability is paramount.
The process that transforms a gentle press into a decisive electrical toggle involves a precise sequence of events. Unlike standard switches where your finger speed directly controls contact movement, a microswitch decouples these two actions. The plunger only stores energy; the spring releases it. This separation of functions is the key to the device's reliability in demanding environments.
The following steps illustrate exactly how this transfer occurs:
The external plunger or lever applies force to a pretensioned spring or moving blade. You press the actuator, and the system begins accumulating mechanical energy. The spring compresses or bends, storing potential energy for later release.
The mechanism crosses its operating point, the tipping point. At this exact millisecond, the stored energy releases. The spring passes its over-center threshold, and the geometry shifts dramatically.
This stored energy rapidly drives the moving contact away from one fixed contact toward the other. The transfer happens in milliseconds. No intermediate state exists during this transition.
Releasing the plunger crosses a separate release point. The mechanism snaps back to its original position, restoring the initial circuit state. This hysteresis ensures stable operation without chatter.
A specific operating force applied to the plunger triggers the tipping point, also called the over-travel threshold. At that exact millisecond, the internal contacts snap from one position to another, regardless of pressing speed. This design ensures that the input speed never affects the output speed. You can press the plunger as slowly as you like. The device will still toggle at full speed once the tipping point arrives. This decoupling is what makes micro switches so reliable for precision control applications. The system delivers consistent performance cycle after cycle, even under varying actuation forces.
The snap action delivers three distinct advantages: minimal operating travel, instantaneous switching, and reduced contact bounce. Each benefit directly improves the device's performance in real-world systems. Understanding these advantages helps you select the right component for your specific application.
Operating travel measures how far the plunger must move before the contacts change state. Micro switches require only 1-2mm of travel distance. This short travel allows the device to fit into tight spaces and respond to very small movements. You gain precise control with minimal physical displacement. The short travel also reduces wear on the actuation mechanism over millions of cycles, extending the operational lifespan.
Instantaneous switching eliminates the uncertain intermediate state found in slower mechanisms. The contacts do not hover or pause during transition. They move from one position to the other in a single, clean motion. This guarantees that the electrical circuit sees a definitive open or closed state at every moment. No ambiguous state exists, even for a microsecond. This clean switching protects sensitive electronics from voltage spikes and unintended signals.
Contact bounce, the rapid oscillation of contacts as they settle, is a common problem in mechanical devices. All mechanical switches exhibit some bounce, typically 1-5 milliseconds. In a snap-action mechanism, the rapid motion minimizes this settling time. The spring force drives the contacts to their final position so quickly that intermediate bouncing transitions are eliminated. A healthy micro switch stabilizes within 2-5 milliseconds. If bounce extends beyond 10 milliseconds, the snap-action mechanism is compromised, indicating a fatigued dome or contaminated contacts. The snap action itself is the primary mechanism that reduces bounce. The result is a clean, reliable signal every time you activate the device.
A tipping-point spring system drives this operation. It ensures rapid contact transfer regardless of the plunger's speed. As you press the plunger, a tension spring stores mechanical energy. Once it reaches a specific over-center threshold, the spring violently releases this energy.
The combination of these benefits means you get a reliable, bounce-free response every time you activate the device. This is why micro switches are the preferred choice for safety interlocks, limit sensing, and any application where a single missed signal could cause a problem. The predictable behavior simplifies system design and reduces debugging time during installation.
Selecting the right actuator style determines how your microswitch interfaces with the mechanical system you control. Each actuator type translates physical motion into electrical switching differently, and your choice affects reliability, lifespan, and installation ease. You must match the actuator to the movement pattern of your application.
The plunger actuator accepts direct vertical force. You press it straight down, and the internal mechanism triggers. This style suits simple on/off operations where a component moves perpendicular to the switch surface. Applications include door interlocks and limit sensing on linear slides.

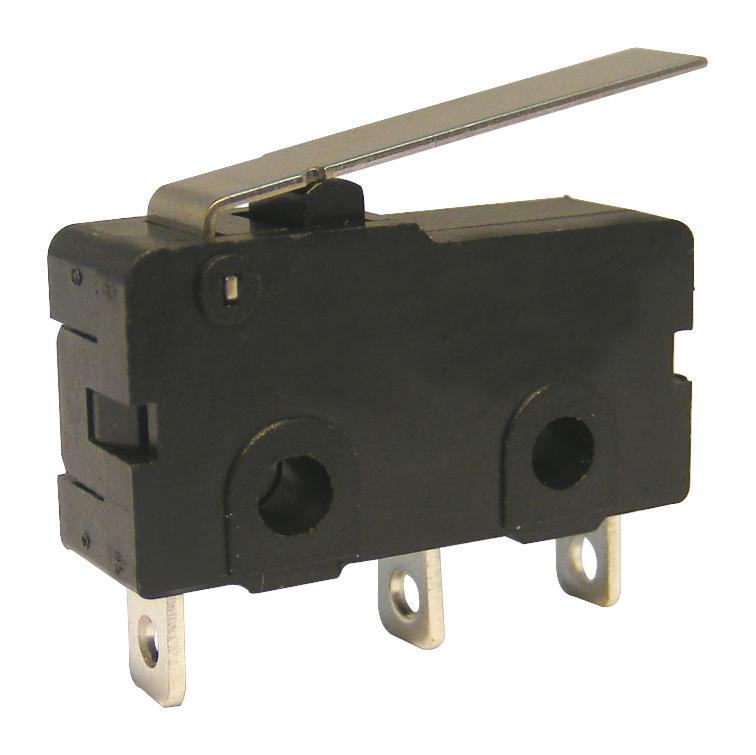

Lever actuators extend your reach. A lever arm provides longer actuation travel and higher torque tolerance, making it ideal for situations with misalignment. You can mount the switch away from the moving part and still trigger it reliably. Large hinged doors often use lever-type micro switches because the door's arc motion would misalign a direct plunger.
Roller actuators combine a lever with a rotating wheel at the tip. This design reduces friction wear on mating cams and moving parts. You use roller types when a rotating cam or sliding component passes across the switch surface. The roller follows the contour smoothly, minimizing drag and extending operational life.
Actuator Type | Key Feature | Best Use Case |
|---|---|---|
Plunger | Direct vertical force | Simple on/off operations |
Lever arm | Longer travel, misalignment tolerance | Large hinged doors |
Roller plunger | Reduces friction wear | High-cycle indexing tables |
Compact sealed | IP67 rated, fully potted | Washdown or marine environments |
Roller levers are specifically designed for cam or moving-part contact. You trigger them when a rotating cam or moving mechanical component slides across the roller, rather than through a direct push or simple lever pull.
NCR organizes its micro switch offerings into three primary families, each tailored to different operational demands. The NS-5 series serves as your standard general-purpose option. You get a compact body with reliable snap-action performance for appliances and light industrial controls. Variants like the NS-5Z and NS-5W offer different terminal configurations to match your wiring layout.
The NL-10 series steps up in electrical rating and mechanical robustness. You use these for higher-current circuits and applications requiring extended mechanical life. The NL-10Z and NL-10G variants provide additional actuator options, including lever and roller configurations for flexible mounting.
The NV-21 series delivers enhanced sealing and environmental protection. You select these for washdown environments or outdoor installations where dust and moisture threaten standard switches. Each family accepts multiple actuator styles, so you can pair the right mechanical interface with the appropriate electrical rating for your specific control system.
Micro switches deliver reliable binary signals across countless control systems. You find them in everyday appliances, safety mechanisms, and industrial equipment. Their snap-action provides a definitive on/off state, critical for precise control.
In household appliances, micro switches enforce safety and functionality. For example, a microwave uses a door interlock to prevent operation when open. A washing machine lid switch stops the cycle if you lift the lid. A refrigerator activates its interior light only when the door opens. The table below summarizes these common applications:
Appliance | Safety Application |
|---|---|
Microwave | Door interlock to prevent operation when open |
Washing Machine | Lid switch to stop operation when lid is open |
Refrigerator | Light activation (ensures door seal and proper operation) |
Even a simple device like a curling iron relies on a micro switch. When you press the external button, the actuator closes internal contacts, completing the power circuit to the heating element. Releasing the button opens the contacts, cutting off power. This switch also detects position, such as rotation or safety lock status, sending a status signal to the circuit.
In industrial settings, micro switches serve as critical components in safety locks, panels, and automation systems. They confirm position, guide movement, and act as safety devices on production lines, conveyors, and robotic arms. These switches prevent machines from exceeding safe operating limits, directly supporting reliable operation.
Application Category | Specific Industrial Uses |
|---|---|
Complex machinery | Safety locks, panels |
Automation systems | Position confirmation, movement control, safety devices on production lines, conveyors, robotic arms, heavy equipment; preventing machines from exceeding safe operating limits |
Automotive systems also depend on micro switches for position sensing. For example, a tailgate or trunk lid sensor uses the switch to detect open or closed state. Airbags and seat belts use micro switches to sense engagement. Power window controls detect window position, door locking mechanisms sense lock status, and gear shift mechanisms confirm the selected gear. These applications require reliable feedback for vehicle operation.
NCR's micro switches combine durability with low activation force. Their design ensures consistent performance in demanding environments. They comply with international standards, making them a trusted choice for engineers.
A microswitch is a small, force-sensitive snap-action switch. Its internal spring mechanism enables rapid, precise operation. This device provides reliable control in countless applications. You find micro switches in household appliances, automotive systems, and industrial machinery. Each switch operates with minimal travel distance. Their simple operation belies a critical role in safety and functionality. These micro switches ensure consistent performance cycle after cycle. The snap-action design eliminates contact bounce and delivers instantaneous switching. This clean transition protects sensitive electronics from voltage spikes. Brands like NiceRelay offer a comprehensive range of models for diverse needs. You can select the exact switch for any control requirement.
Most standard microswitches operate reliably for millions of cycles. The snap-action mechanism minimizes contact arcing, which directly extends mechanical and electrical life. NiceRelay models undergo rigorous testing to confirm consistent performance across their rated lifespan. Your specific cycle count depends on load current and actuation frequency.
Standard plunger-style microswitches require roughly 50 to 100 grams of force. Lever and roller actuators reduce this requirement by providing mechanical advantage. You can press these variants with considerably less effort. NiceRelay designs its switches for low actuation force while maintaining robust contact pressure for reliable switching.
Yes. Microswitches operate in both AC and DC applications. You must verify the contact rating matches your specific circuit voltage and current. DC circuits present a greater challenge because the arc persists longer without a zero-crossing point. NiceRelay provides models with appropriate DC ratings for automotive and industrial use.
First, determine your electrical load and circuit type. Second, identify the actuator style that matches your mechanical motion. Third, consider environmental factors like moisture or dust exposure. Finally, verify the mechanical life requirement. NiceRelay's NS-5, NL-10, and NV-21 families cover most standard applications.
