The operational integrity of modern Electric Vehicle (EV) fast charging stations is contingent upon the sophisticated coordination of power electronics and electromechanical isolation. At the center of this coordination is the High Voltage Relay——specifically the High-Voltage Direct Current (HVDC) Contactor when applied to the primary power path of a DC fast charging station. In the rapid transition from 400V to 800V charging architectures, the demand for precision switching solutions has moved beyond simple load management into the domain of critical system safety. A High Voltage Relay from NCR Industrial is not merely a switch; it is a specialized executive component designed to provide galvanic isolation, emergency fault interruption, and bidirectional load management under extreme thermal and electrical stresses. This guide provides a rigorous engineering analysis of selection criteria, arc dynamics, and compliance protocols for next-generation charging infrastructure.
The movement toward 800V architecture in the EV sector is driven by the necessity to enhance power density and minimize thermal overhead during ultra-fast charging sessions. While theoretical models suggest that doubling voltage allows for current to be halved, engineering reality accounts for conversion losses, battery internal resistance, and dynamic charging curves. However, utilizing a High Voltage Relay capable of managing 800–1000V DC potentials can significantly reduce current under equivalent power conditions. This reduction enables the use of lower-gauge conductors, reducing the total mass and complexity of EV charging system components. Consequently, the switching hardware must provide not only a high rated operational voltage but also superior dielectric withstand capability and impulse voltage resilience to ensure long-term reliability in outdoor environments.
High-voltage DC switching presents a primary physical challenge: the management of the sustained electric arc. Unlike Alternating Current (AC), which has natural zero-crossing points every half-cycle to assist in arc quenching, DC maintains a constant potential. When the contacts of a High Voltage Relay separate under load, the energy density in the gap can ionize the medium, creating a plasma channel that can persist for an extended duration without proper arc suppression. If the arc is not extinguished within milliseconds, it causes rapid contact erosion and localized vaporization of the copper terminals.
The intensity and duration of an arc are dictated by the system voltage, current magnitude, and the dielectric properties of the contact chamber. At voltages exceeding 400V DC, a standard air-break relay is insufficient. Engineers must focus on minimizing the "Arctime"—the interval between contact separation and total plasma extinction. NCR engineering standards utilize hermetically sealed environments where the arc is forced into instability through a combination of gas quenching and magnetic displacement.

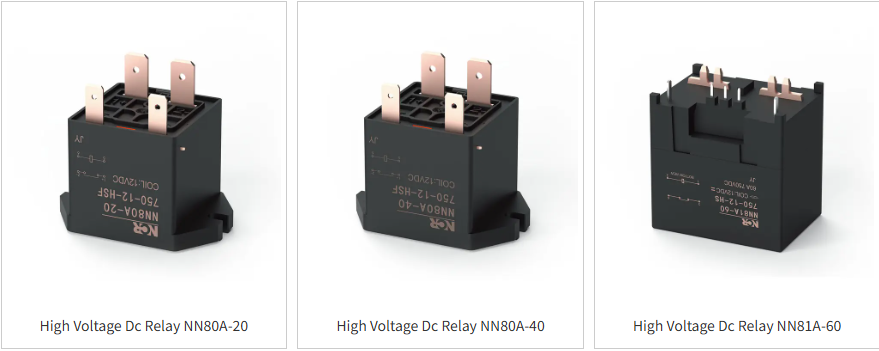

A reliable High Voltage Relay must integrate mechanical precision with advanced material science to meet the safety requirements of industrial EVSE (Electric Vehicle Supply Equipment).
To enhance arc cooling and prevent atmospheric oxidation, the contact assembly of an NCR relay is hermetically sealed within a ceramic chamber. Depending on the specific design and safety requirements, these chambers are filled with hydrogen or nitrogen-based gas mixtures. Hydrogen is utilized for its exceptional thermal conductivity, which facilitates the rapid transfer of heat away from the arc core, promoting faster de-ionization. This ceramic-to-metal bonding technology ensures consistent insulation resistance over a 20-year service lifecycle, meeting the High Voltage Relay standards for zero-leakage isolation.
The "Magnetic Blowout" technique is the most effective passive method for suppressing arcs in a high amperage relay. This method utilizes permanent magnets strategically positioned around the contact gap to generate a Lorentz Force. When an arc forms, the orientation of the magnetic field must be carefully aligned with the current direction to ensure effective arc displacement. The force pushes the arc away from the contact surfaces and into cooling chutes, increasing its electrical resistance until the system voltage can no longer sustain the plasma. This mechanism is critical for ensuring the High Voltage Relay remains operational through thousands of high-load switching cycles.
| Relay Parameter | Engineering Specification | NCR Performance Standard |
|---|---|---|
| Rated Operational Voltage | Maximum continuous working voltage. | 800V – 1500V DC. |
| Dielectric Withstand | Resistance to voltage breakdown. | Up to 4,000V DC (1 min). |
| Arc Suppression | Method of plasma quenching. | Magnetic Blowout + Gas Mix. |
| Current Capacity | Rated continuous and peak current. | 40A – 400A+ DC. |
In the electrical architecture of a DC charging station, a High Voltage Relay does not operate in isolation. To achieve system-level safety, HVDC relays must operate in coordination with upstream protective devices such as high-speed fuses or circuit breakers. While the relay provides control and isolation, the fuse manages short-circuit protection. This synergy ensures that the High Voltage Relay is never subjected to currents exceeding its Short-Time Withstand Current (Icw) before the fuse clears the fault.
If the system detects a vehicle-side short circuit or insulation failure, the High Voltage Relay must be capable of interrupting high current (e.g., 400A at 800V DC) instantaneously. NCR switching solutions undergo rigorous "Make-and-Break" testing to ensure the high current relay does not weld shut or suffer dielectric failure during a fault event. This reliability is vital for maintaining the safety integrity of the charging station as defined by IEEE standards for power switching equipment.
Even a 0.5 milliohm contact resistance in a power switching relay can lead to significant heat generation (P = I²R) at high current levels. NCR utilizes oxygen-free high-conductivity copper and specialized silver-alloy contact materials to minimize voltage drop. Low contact resistance is the primary defense against thermal runaway, ensuring that the high voltage relay maintains its mechanical integrity even when installed in unventilated outdoor enclosures.
Compliance with international engineering standards is a non-negotiable requirement for High Voltage Relay procurement. Adhering to these codes ensures global interoperability and minimizes engineering risk.
IEC 61851: The core standard for electric vehicle conductive charging systems.
ISO 6469: Standards for the safety of electrically propelled road vehicles.
UL 2202: Standard for safety of EV charging system equipment.
IEC 60947-4-1: Specifies the performance of electromechanical contactors in DC-utilization categories.
By adhering to these rigorous frameworks, NCR components are verified to withstand extreme vibration, high-frequency transients, and wide temperature swings characteristic of industrial charging environments.
When selecting a High Voltage Relay for a project, engineers must focus on the following critical parameters:
Short-Time Withstand Current (Icw): The relay’s capacity to carry high currents until the upstream protection clears the fault.
Auxiliary Contact Feedback: Integrated "Mirror Contacts" provide a physical confirmation signal to the MCU, essential for Functional Safety (ISO 26262) logic.
Coil PWM Economization: Reduces holding current and energy consumption, effectively lowering the operating temperature of the relay coil.
Polarity Sensitivity: For contactors utilizing magnetic blowout, correct alignment of P1 and P2 is mandatory. Incorrect polarity can cause the magnetic field to push the arc *toward* the contacts, resulting in immediate failure.
The High Voltage Relay is the foundational Executive element of the modern electrified infrastructure. As 800V and 1000V systems become the industry norm, the technical demands on switching safety will continue to intensify. By integrating advanced arc-suppression technologies—including Lorentz force optimization, ceramic sealing, and precision gas quenching—NCR Industrial provides the reliability required for the next generation of global transport. Accurate component selection, grounded in a rigorous understanding of DC physics and system-level coordination with protective devices, is the only methodology for ensuring grid integrity. For detailed datasheets and customized technical support, please consult the NCR High Voltage Relay documentation.
Rated operational voltage is the maximum voltage at which the high voltage relay can safely switch loads. Dielectric strength is the relay's ability to resist voltage breakdown between isolated circuits (e.g., coil to contacts).
In a polarized high current relay, the internal magnets are aligned to push the arc away from the contacts. If the current direction is reversed, the arc is pulled *into* the relay mechanism, causing catastrophic failure.
Yes. NCR offers non-polarized power switching relays designed specifically for Energy Storage Systems (BESS) where current flows in both charging and discharging directions.
While mechanical life can exceed 200,000 cycles, electrical life depends on the load. Under standardized DC-1 conditions, NCR contactors typically achieve between 30,000 to 50,000 cycles at full rated voltage and current.
Consult with NCR's specialists for high-voltage switching specifications, certification data, and system integration support.CONTACT NCR ENGINEERING TEA！！！
