NHN-RC3/4/7/8 POWER RELAY MODULE

loading

●The input and output adopts European terminal or spring type screw free terminal
●NPN / PNP is bipolar compatible
●Working status indication with indicator light
●With input protection , multiple output protection types
Availability:

FEATURES

●The input and output adopts European terminal or spring type screw free terminal
●NPN / PNP is bipolar compatible
●Working status indication with indicator light
●With input protection , multiple output protection types

APPLICATION

It is applicable to CNC systems such as FANUC , Mitsubishi and Siemens , as well asvanous industral and agncultural machinery and equipment such as automationequipment , processing machinery and welding equip

SUITABLE WIRE

1

SPECIFICATIONS

INPUT COIL PARAMETERS

●Driving mode

NPN/PNP Compatible

●Rated voltage

12VDC/ 24VDC/ 220VAC

●Single power consumption

DC:0.53W AC:1.0VA

●Action voltage

X70% Rated voltage

●Release voltage

X10% Rated voltage

●Action time

≤15ms

●Release time

≤10ms


OUTPUT CONTACT PARAMETERS

●Contact type

1Z NO: 15A 277VAC/3OVDC

2Z: 8A 277VAC/30VDC 1/3HP

●Electrical life

1x105

●Mechanical life

1x107

●Contact material

Silver alloy

●Contact resistance

≤100mΩ [6VDC 1A]

●Protection circuit

RC, varistor fusing optional


CONNECTOR

●Strip length

6mm

●Torque

0.4Nm/[3.54Lb-in)

●Input terminal type

European wiring terminal, spring type direct plug terminal

●Output terminal type

●Input wire diameter

0.2-2.5mm /26-14AWG

●Output wire diameter

0.2-2.5mm /26-14AWG

WORKING TEMPERATURE

-10~55°C

STORAGE TEMPERATURE

-40~ 70°C

MODEL ANALYSIS

2

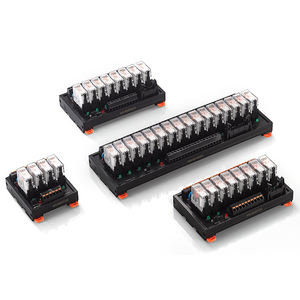

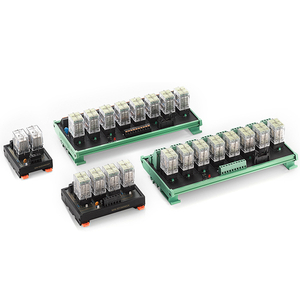

RELATED PRODUCTS

3

WIRING DIAGRAM AND DIMENSIONS

4

56
