The most important advantage of an electric latching relay is its bistable operation. It maintains its contact state without continuous coil energization, thereby reducing holding power consumption. This makes it ideal for smart meters and other low-power applications.
This device changes state through a control pulse and remains in that state after pulse removal, distinguishing it from conventional non-latching relays.
Selection of a suitable relay requires balancing switching capacity, coil energy, contact reliability, and total system cost. You should base the correct relay selection on the actual load and control circuit. Do not select a smart meter relay by its headline current rating alone.
The latching relay advantage in smart metering becomes clear in battery-powered smart energy meter designs. A latching relay provides the low power consumption needed for smart metering applications. Smart meter technology benefits significantly from this approach.
A latching relay is a bistable device. It changes contact state when it receives a control pulse and holds that state after the pulse ends. A permanent magnet inside the relay maintains the contact position. The coil draws power only during a short switching pulse, typically around 20 ms. This behavior defines the latching relay advantage in smart metering.
Bistable operation is essential for battery-powered smart meters. A monostable relay draws 1–3 W continuously to hold its state. A latching relay draws 0.0 W in standby. This zero standby power eliminates heat buildup and component aging. It also extends battery life over a 15+ year operational life. The design further avoids contact welding during high-fault events up to 10 kA, UC3 compliant.
A high-performance bistable relay for energy-sensitive devices uses a permanent magnet to hold its state and draws zero standby power. Latching relays are available with current ratings from 16 A to 120 A. The magnetic latching design ensures stable state retention across many switching cycles.
You will encounter two main types of relays used in smart meters: single-coil and dual-coil designs. A single-coil latching relay uses one coil. A positive pulse sets the contacts, and a negative pulse resets them. This design saves space and simplifies wiring. A dual-coil latching relay uses two separate coils. One coil sets the contacts, and the other resets them. This design offers simpler driver circuits because each coil needs only a unidirectional pulse.
Both designs appear in smart meter relay applications. Your choice depends on your driver circuit and available board space. A single-coil unit requires an H-bridge driver to reverse polarity. A dual-coil unit works with two simple transistor switches. For a magnetic latching relay in a smart energy meter, the dual-coil type often simplifies control logic. The single-coil type reduces component count.
Consider the role of relays in smart meters when you evaluate these options. The electric latching relay you select must match your control scheme. Both configurations are available from various suppliers. Each supports reliable state retention for smart metering duties.
You must define the switching application and load characteristics before you evaluate any latching relay. This step prevents costly mistakes later. A relay that works perfectly in one smart meter design may fail in another because the load behaves differently.
Start by clarifying what the relay will do inside the smart meter. Most smart meters use latching relays for main load switching, remote load control and disconnection, or both. A two-coil latching relay eliminates coil power consumption after switching. This reduces overall energy waste in the smart energy meter. The relay holds its state with zero standby current, which is critical for battery-powered designs.
You should also confirm whether the application requires a single-coil or dual-coil topology. This decision affects your driver circuit and board layout. For relay selection for smart meter applications, map the control sequence first. Determine when the relay must set, when it must reset, and whether the meter needs state feedback after a power interruption.
The load type drives your technical specifications for smart meter relay selection. You cannot rely on the nominal current alone. You must evaluate the actual load curve and duty cycle.
Critical Specification | Selection Guidance for Latching Relays in Smart Meters |
|---|---|
Rated current | Category references span approximately 16–100 A; PCB or bolted terminals depending on model. Use the actual load curve and duty cycle rather than nominal current alone. |
Contact arrangement | Confirm single-coil or dual-coil topology, set/reset pulse polarity and duration, and whether power-up state detection or feedback is required. |
Load type | Specify AC or DC, resistive or inductive load, expected switching frequency, and inrush current for motors, lamps, transformers, and capacitive loads. |
Additional constraints | Most conventional latching relays handle AC or low-voltage DC (often ≤60 VDC). Do not use them to interrupt high-voltage, high-current DC unless the model is specifically designed for it. |
Inrush current deserves special attention. Motors, transformers, lamps, and capacitive inputs can draw current far above steady-state value. This surge can erode or weld contacts even when normal current appears within the relay rating. You must provide inrush current and switching duration when you request a quotation.

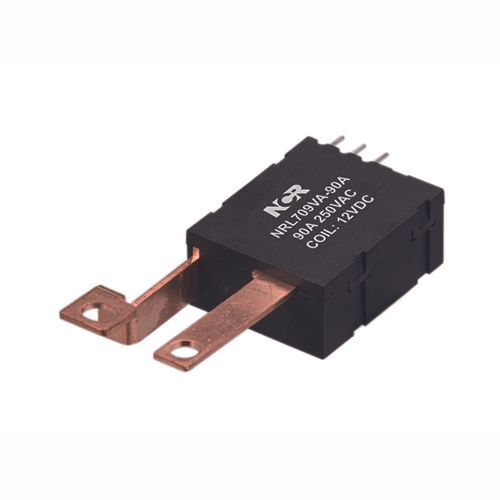

A heavy-duty magnetic latching relay handles high current loads in smart metering applications. These devices support rated current and overload capacity requirements that standard relays cannot meet. For a three phase magnetic latching relay, verify that the contact arrangement matches your phase configuration.
Before you request a quotation, gather these details: load voltage and current, AC or DC type, resistive or inductive load, expected switching frequency, coil voltage, contact arrangement, installation method, ambient temperature, required approvals, annual quantity, and target delivery schedule. This preparation streamlines your selection process.
The coil driver must match the required pulse polarity and duration. A driver designed for a continuously energized coil will not correctly control a polarity-sensitive pulse-driven relay. This mismatch is a common failure point in smart metering designs.
Among the types of relays used in smart meters, the electric latching relay offers the lowest standby power. That advantage only materializes when you match the relay to the real load. A smart meter relay chosen by headline current alone will underperform. Careful load analysis ensures reliable operation over the meter's service life.
You must match the coil voltage and pulse requirements to your driver circuit. A typical latching relay operates with a short pulse, often around 20 ms. The coil draws current only during this brief switching window. After the pulse ends, the permanent magnet holds the contacts in place. This behavior eliminates continuous power draw and extends battery life in a smart energy meter.
Pulse width matters for reliable switching. A pulse that is too short may fail to fully transfer the contacts. A pulse that is too long wastes energy and heats the coil. You should verify the minimum and maximum pulse duration from the relay datasheet. Your driver circuit must deliver the correct polarity for set and reset operations.
Contact ratings define the load your relay can switch safely. You must evaluate rated current and overload capacity together. The table below shows typical contact specifications for a magnetic latching relay in smart metering.
Parameter | Specification |
|---|---|
Contact rating | 120A at 220VAC |
Maximum switching power | 26400VA |
Maximum switching voltage | 220VAC |
Maximum switching current | 120A |
UC3 making capacity | 3kA/10ms |
UC3 withstand capacity | 6kA/10ms |
Standard compliance | IEC62055-31 UC3 |
These figures demonstrate the switching capacity required for demanding smart meter applications. The UC3 ratings confirm the relay can handle high fault currents without contact welding.
High reliability and resistance to vibration and shock ensure dependable performance in harsh environments. This durability supports mechanical and electrical endurance over the meter's service life. Compliance with metering standards such as IEC 62052-31 is mandatory for smart meter relay selection. These standards govern relay performance and metering accuracy in utility deployments.
The driver circuit you choose must match the specific coil voltage and pulse requirements of your relay. A mismatch between driver and coil represents a common failure point in smart metering designs. When you select a smart meter relay, confirm that your driver can deliver the correct polarity, voltage level, and pulse duration for both set and reset operations. A smart meter relay that matches your driver circuit ensures reliable switching over the meter's service life.
A step-by-step checklist simplifies your relay selection process. Start with rated current: verify the relay's contact rating exceeds your maximum load current including any inrush surge. Next, confirm the coil voltage matches your available supply. Then determine the contact arrangement: single-pole or double-pole depending on your phase configuration. Choose the latching method: single-coil requires an H-bridge driver, while dual-coil works with two transistor switches. Finally, identify the load type: resistive, inductive, or capacitive, and account for any inrush current.
Three common pitfalls can undermine your design. First, overlooking pulse width requirements: a pulse that is too short fails to transfer the contacts fully, while a pulse that is too long wastes energy and may damage the coil. Your driver must deliver a pulse within the datasheet window, typically around 20 ms. Second, ignoring contact bounce: mechanical bounce causes momentary arcing that erodes contact surfaces. Design your control logic to account for the mechanical bounce period. Third, underestimating temperature extremes: high ambient temperature increases coil resistance, reducing the current available to generate magnetic force. A driver marginal at room temperature may fail to switch the relay at 70°C. Always derate your driver across the full temperature range of your application.
A latching relay offers a long service life because the coil energizes only during state changes. This reduces wear on the coil and its insulation system. Less heat generation also slows aging of surrounding components on your circuit board.
Your smart meter must know the relay's contact state after every power interruption. You cannot assume the relay retains its previous position. A brief power loss may reset the relay if the permanent magnet loses its hold momentarily. Include a state detection circuit that reads the contact position on power-up.
Feedback signals from auxiliary contacts or current sensing provide this information. The control system then issues the appropriate set or reset pulse to restore the correct state. This step is critical for remote load control and disconnection applications. If the meter cannot confirm the relay state, it may attempt to switch an already disconnected load, causing unexpected arcing or driver stress. For load control and disconnection functions, state feedback becomes essential.
For relays in smart meters operating under utility control, state feedback supports tamper detection and outage reporting. The smart meter logs unexpected state changes and reports them to the central system. This capability enhances grid reliability and reduces manual inspection costs.
The driver circuit must also handle the energy required for both set and reset operations across the relay's operating life. Repeated pulsing at temperature extremes stresses the driver components. Use components rated for at least the full operating temperature range of your smart meter enclosure.
An electric latching relay that integrates seamlessly with your control circuit provides dependable switching for years. The initial effort to match driver characteristics, verify state control, and plan for environmental extremes pays dividends in field reliability. Skip these steps, and you risk premature failures that require expensive meter replacements.
Your smart meter operates outdoors, inside utility cabinets, or in industrial facilities. These locations expose the relay to wide temperature swings, high humidity, and mechanical stress. You must verify that your chosen relay survives these conditions across its full service life.
Temperature extremes affect relay performance in several ways. High heat increases coil resistance, which reduces the current your driver can deliver during switching. Low temperatures can make mechanical parts stiffer and slower to move. Select a relay rated for the full ambient temperature range of your installation. Check the datasheet for both operating and storage temperature limits.
Humidity accelerates corrosion on contacts and metal parts. Moisture can also create leakage paths that degrade insulation. Choose a relay with appropriate sealing or conformal coating for your environment. In coastal or tropical installations, this protection becomes critical.
Vibration and shock appear in transportation, installation, and normal operation. A latching relay with a permanent magnet holds its state firmly against these forces. A latching relay with a permanent magnet holds its state firmly against these forces. Mount the relay securely and follow the manufacturer's torque specifications for terminals.
Insulation protects users and equipment from electrical hazards. You must evaluate dielectric strength and creepage distance for your smart meter relay. Dielectric strength measures how much voltage the insulation withstands without breaking down. Creepage distance measures the shortest path along the insulation surface between conductive parts. Both parameters must meet your application's voltage and pollution degree requirements.
The coil voltage you apply also affects insulation stress. A higher coil voltage demands greater isolation between the coil and contacts. Verify that the relay's insulation system handles your maximum coil voltage plus any transient overvoltage. Compliance with metering standards such as IEC 62052-31 confirms that the relay meets mandatory safety and performance requirements for smart meters.
Always confirm the relay's rated impulse voltage and pollution degree. These ratings tell you whether the relay suits your specific installation environment. When in doubt, choose a relay with higher insulation ratings than your minimum requirement. This margin protects against unexpected surges and extends reliable operation.
You must verify that your chosen relay complies with the mandatory metering standards for your market. The two critical standards for smart meter relay selection are IEC 62052‑31 and IEC 62055‑31. Both standards define the safety and performance requirements for relays in electricity metering equipment.
IEC 62055‑31 specifies the UC3 rating for latching relays. This rating confirms the relay handles severe fault conditions without contact welding. The UC3 making capacity is 3 kA for 10 ms. The withstand capacity is 6 kA for 10 ms. A compliant relay also maintains a contact gap of at least 5.5 mm to ensure safe isolation. Contact resistance below 0.4 mΩ minimizes power loss at the contacts. The relay draws 0.0 W standby power due to its bistable design. These parameters align with the low-power requirements of a modern smart meter.
IEC 62052‑31 serves as a key reference for product safety requirements in smart meter tenders. It covers safety tests and performance verification. Confirm that the manufacturer provides documented compliance to both standards. UC3 certification gives you confidence in fault handling capability and simplifies your product approval process with utility customers.
Your application may require compliance with additional standards beyond IEC 62052‑31 and IEC 62055‑31. Different countries impose their own regulations for metering equipment. The Indian market requires compliance with IS 16444 for smart meters and their components. A relay certified to both IEC 62055‑31 and IS 16444 simplifies your market entry.
You must also verify low-voltage safety regulations for your installation location. These regulations govern enclosure ratings, insulation coordination, and component approvals. They often reference parameters such as dielectric strength and creepage distance for safe coil-to-contact isolation.
Application-specific requirements may mandate environmental testing beyond standard benchmarks. Your relay must pass humidity cycling, salt fog exposure, and temperature shock tests for your deployment environment. Confirming compliance to international standards and local regulations protects your design from certification delays. It also ensures that relay performance and metering accuracy hold across the full range of expected conditions.
Some regions require third-party certification from accredited laboratories. Confirm that your relay manufacturer holds valid certificates from recognized bodies. For smart meters deployed across multiple territories, selecting a relay with broad compliance coverage reduces your qualification effort.
The contact material and coil design determine how long your smart meter relay delivers reliable switching. AgSnO₂ contacts are specified for their superior resistance to arc erosion and contact welding. This material keeps contact resistance below 2.0 mΩ. Low resistance minimizes power loss and heat generation at the contact interface.
Parameter | Specification |
|---|---|
Contact material | AgSnO₂ |
Contact resistance | < 2.0 mΩ |
Electrical life | > 10,000 cycles |
Mechanical life | > 100,000 cycles |
Coil power (single-coil) | 3.0 W |
Coil power (dual-coil) | 6.0 W |
Minimum pulse duration | ≥ 100 ms |
Pickup/release time | ≤ 30 ms |
Thermal performance requires evaluation under both steady-state and transient conditions. On-state voltage drop creates continuous heat. The switching transition produces the most severe thermal stress due to brief arcing. When a relay runs hot, identify the root cause first. Check for excessive load current, high voltage drop, slow switching speed, or inadequate coil drive voltage. A correctly selected relay with matched driver circuitry operates within its thermal limits without additional cooling.
The relay delivers over 10,000 electrical cycles and more than 100,000 mechanical cycles. This combination of mechanical and electrical endurance ensures long service life in smart metering applications. The coil draws power only during the switching pulse. This approach minimizes thermal aging of the coil insulation system. Proper cooling time between switching events prevents cumulative heat buildup.
Your smart meter must survive physical stresses during transport, installation, and field operation. The relay withstands functional shock of 10G without unintended state change. It withstands destructive shock of 100G without mechanical damage. This robustness prevents failures from accidental impacts and ensures continuous operation in vibration-prone locations.
The operating temperature range covers -40°C to +70°C. High temperatures increase coil resistance and accelerate contact oxidation. Low temperatures stiffen moving parts and increase switching time. Your driver circuit must deliver adequate energy across this full range. Margin testing at the extremes reveals potential weaknesses before deployment.
Insulation integrity protects users and equipment in humid environments. The relay provides 1000 MΩ insulation resistance at DC 500V. Dielectric strength exceeds 4000 VAC between coil and contacts. These ratings ensure safe operation even after years of moisture exposure and temperature cycling.
Reliable state retention under vibration, shock, and extreme temperatures gives confidence that your smart meters will function correctly throughout their deployment life in residential and industrial installations.
You must verify that the relay's electrical parameters align with every part of your system. Start with the coil voltage and confirm your driver circuit delivers the correct set and reset polarity. A smart meter relay with a single coil needs an H-bridge driver to reverse polarity. A dual-coil model works with two simple transistor switches. Your driver must supply a pulse within the datasheet window, typically around 20 ms. A pulse that is too short fails to transfer contacts fully. A pulse that is too long wastes energy and heats the coil.
Next, compare the contact rating against your actual load profile. The relay must handle steady-state current plus any inrush surge from motors, transformers, or capacitive inputs. For a smart meter, confirm the relay meets IEC 62055-31 UC3 requirements. This standard ensures the relay withstands fault currents without contact welding. Also check that the insulation resistance and dielectric strength exceed your system's maximum voltage stress. A relay rated for 1000 MΩ insulation resistance at DC 500V and over 4000 VAC dielectric strength between coil and contacts provides a solid safety margin.
Physical fit and environmental tolerance determine whether your relay survives real-world deployment. Measure your available board space and confirm the terminal layout matches your PCB footprint. Verify the mounting method, whether PCB-mounted or bolted, suits your assembly process. Check the torque specifications for terminal connections. Over-tightening damages the relay body. Under-tightening creates resistance that generates heat.
Your smart meters will face temperature swings, humidity, and vibration throughout their service life. The relay must operate from -40°C to +70°C to handle outdoor cabinets and industrial installations. High temperatures increase coil resistance and reduce switching force. Low temperatures stiffen moving parts. Confirm the relay withstands 10G functional shock and 100G destructive shock without state change. For humid or coastal environments, verify the sealing protects against moisture ingress. These checks ensure the relay maintains reliable state retention across your full operating envelope.
Many engineers choose a latching relay by matching its headline current rating to the load. This approach leads to failures in the field. A relay rated for 100 A may still weld its contacts when switching a motor with high inrush current. The steady-state current tells only part of the story.
You must evaluate the full load profile before you commit to a relay. Consider the inrush surge from capacitive inputs, transformers, and lamp loads. These devices can draw current far above their normal operating level during startup. A relay that handles the steady-state current may fail under this brief surge. Always request the inrush current and switching duration from your supplier. For smart meters, verify the relay meets IEC 62055-31 UC3 requirements for fault current withstand. This standard confirms the relay handles severe fault conditions without contact welding.
A latching relay needs a specific pulse to change state. The coil draws power only during this brief window, typically around 20 ms. A driver designed for a continuously energized coil will not control a pulse-driven relay correctly. This mismatch represents a common failure point in smart metering designs.
You must match your driver circuit to the relay's coil requirements. Confirm the driver delivers the correct polarity for set and reset operations. A single-coil relay needs an H-bridge driver to reverse polarity. A dual-coil model works with two simple transistor switches. Check that your driver supplies a pulse within the datasheet window. A pulse that is too short fails to transfer contacts fully. A pulse that is too long wastes energy and heats the coil. Verify your driver components operate across the full temperature range of your application. High temperatures increase coil resistance and reduce the current available for switching.
You should work through a structured checklist before you commit to a latching relay for your smart meter design. This approach prevents costly oversights and ensures the relay matches your complete application.
Start with the electrical parameters. Verify the rated current exceeds your maximum load current, including any inrush surge from motors, transformers, or capacitive inputs. Confirm the coil voltage matches your available supply. Determine whether you need a single-coil or dual-coil topology. A single-coil relay requires an H-bridge driver to reverse polarity. A dual-coil model works with two simple transistor switches. Check that your driver delivers a pulse within the datasheet window, typically around 20 ms.
Next, evaluate the contact arrangement and load type. Confirm the contact configuration matches your phase requirements. Identify whether your load is resistive, inductive, or capacitive. Account for inrush current and switching frequency. For smart meters, verify the relay meets IEC 62055-31 UC3 requirements for fault current withstand.
Checklist Item | What to Verify |
|---|---|
Rated current | Exceeds maximum load current plus inrush surge |
Coil voltage | Matches available supply and driver output |
Contact arrangement | Single-pole or double-pole per phase configuration |
Latching method | Single-coil with H-bridge or dual-coil with transistor switches |
Load type | Resistive, inductive, or capacitive with inrush data |
Pulse width | Within datasheet window, typically around 20 ms |
Standards | IEC 62055-31 UC3 and IEC 62052-31 compliance |
Environmental range | Operating temperature from -40°C to +70°C |
Mechanical fit | Terminal layout matches PCB footprint and torque specs |
Finally, confirm the mechanical and environmental compatibility. Measure your available board space and verify the terminal layout. Check the operating temperature range covers your installation environment. Confirm the relay withstands vibration and shock without state change. Verify insulation resistance and dielectric strength meet your safety requirements. Document all compliance certificates before you finalize your selection.
Every latching relay application demands a different balance of priorities. A residential smart meter requires low coil energy and compact dimensions. A three-phase industrial meter needs higher fault current handling and robust thermal management. Your selection process must weigh these competing factors.
Residential meters typically carry current ratings between 16A and 60A. A suitable model fits this range with its compact PCB footprint. Coil energy consumption becomes the primary constraint in battery-powered designs. A dual-coil configuration simplifies the driver circuit by using two transistor switches instead of an H-bridge. Pulse width requirements stay around 20 ms to minimize energy draw for each switching event.
Contact reliability takes priority for infrequent switching operations. AgSnO₂ contacts resist erosion over the typical lifetime of a few thousand cycles. Thermal performance poses less concern because the relay draws zero standby current. The relay must still meet IEC 62055-31 UC3 fault current withstand for utility compliance. Insulation resistance above 1000 MΩ at 500 VDC ensures safety inside residential enclosures.

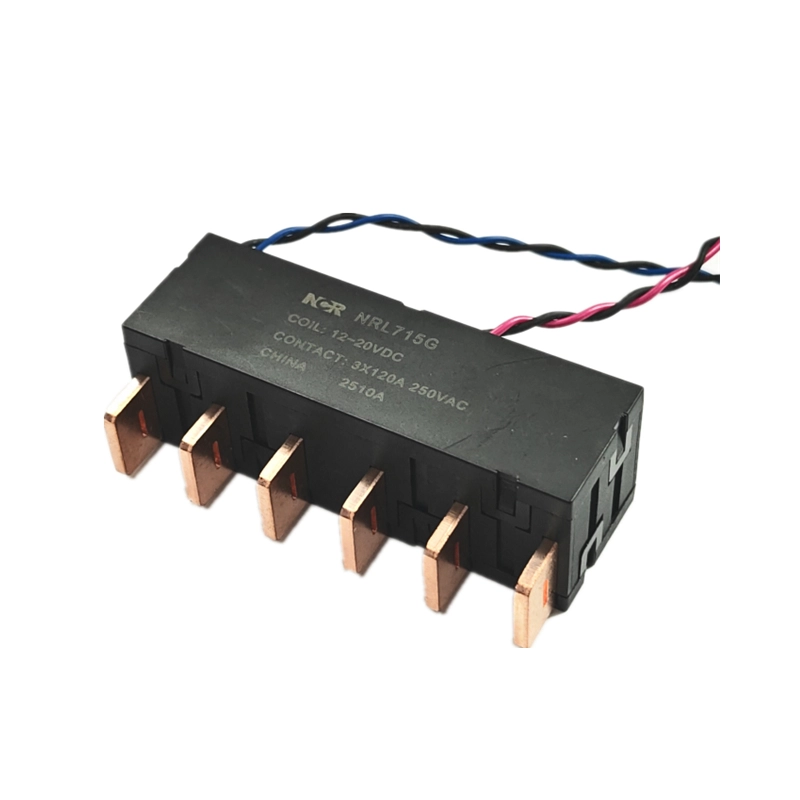

Three-phase installations require current ratings from 60A to 120A. A suitable model handles this range with bolted terminals for secure high-current connections. Contact voltage drop becomes critical at these higher currents. Resistance below 2.0 mΩ minimizes heat generation and power loss at the contact interface.
Environmental requirements tighten considerably for industrial installations. The relay must operate from -40°C to +70°C to survive outdoor cabinet exposure. Vibration resistance of 10G functional shock prevents unintended state changes near heavy machinery. Mechanical life exceeding 100,000 cycles supports frequent switching for demand-response programs. UC3 fault current withstand at 6 kA protects against grid disturbances common in industrial zones.
EV charging stations and renewable energy inverters impose unique requirements. DC load switching demands relay models specifically rated for DC interruption. Standard latching relays handle AC or low-voltage DC only. You must verify the relay datasheet explicitly states DC switching capability at your required voltage and current.
Thermal cycling frequency increases dramatically in solar inverter applications. The relay may switch multiple times daily as solar output fluctuates. Choose a relay with electrical life ratings exceeding 10,000 cycles for these conditions. Confirm the manufacturer provides test data for the expected switching frequency and documented reliability evidence.
Latching relays for smart metering use AgSnO₂ contacts, achieve contact resistance below 2.0 mΩ, draw zero standby power, and comply with IEC 62055-31 UC3 and IEC 62052-31. The UC3 rating confirms the relay withstands fault currents of 3 kA making and 6 kA withstand for 10 ms, with a contact gap of at least 5.5 mm. Insulation resistance exceeds 1000 MΩ at DC 500V, and dielectric strength exceeds 4000 VAC between coil and contacts.
Models are available for current ratings from 16A to 120A. The magnetic latching design ensures stable state retention across many switching cycles. The coil energizes only during the brief switching pulse, typically around 20 ms. This behavior extends battery life in smart meters and reduces thermal aging of surrounding components.
You should request the full datasheet for your target model before finalizing your design. Verify the coil voltage, pulse width, contact arrangement, and operating temperature range against your application. Confirm the terminal layout matches your PCB footprint or bolted connection scheme. Ask for test data on electrical life and mechanical life under your expected load profile. These steps ensure the relay you choose delivers reliable performance over the full service life of your equipment.
You should select a latching relay for the complete application, not a single parameter. Three core considerations guide your choice: low coil energy, reliable switching performance, and sufficient electrical and mechanical life. These factors directly affect power consumption, switching reliability, service life, and total system cost.
Before you finalize your selection, verify load characteristics, driver compatibility, environmental conditions, mechanical integration, standards, and production consistency. Careful relay selection improves the long-term reliability and cost-effectiveness of smart meters and other low-power switching equipment.
For applications that require reliable latching performance, NCR provides magnetic latching relay solutions for smart metering and other low-power switching applications. Its product range includes multiple latching relay configurations and current ratings, allowing engineers to match relay performance with different load and system requirements. NCR also has in-house R&D and manufacturing capabilities and can develop electromagnetic relay solutions according to customer drawings or samples. For project-specific requirements, customers can provide details such as load type, voltage, current, pulse requirements, installation conditions, and applicable standards to help the NCR team identify a suitable solution.
A latching relay draws zero standby power. It consumes energy only during a brief switching pulse, typically 20 ms. This low-power operation extends battery life and reduces heat buildup inside the meter enclosure.
A single-coil relay requires an H-bridge driver to reverse polarity for set and reset operations. A dual-coil unit uses two separate transistor switches. Choose single-coil for compact board space. Choose dual-coil for simpler driver circuits.
Your relay must meet IEC 62055-31 UC3 for fault current withstand and IEC 62052-31 for general safety. Local regulations such as IS 16444 may also apply. Always verify third-party certification before final selection.
Rated current tells only part of the story. Inrush current from motors, transformers, or capacitive loads can exceed steady-state current and weld contacts. Always provide the full load profile, including surge and duration, to your supplier.
