Electromechanical relays remain one of the most widely used switching devices in electrical and industrial systems. Even as solid state technologies continue to develop, electromechanical relays still play an important role in control panels, home appliances, automotive systems, power equipment, and industrial automation.
Their value comes from a simple but highly effective principle: a small electrical signal can control a larger electrical circuit safely and reliably. This makes them useful in systems that require isolation, dependable switching, and straightforward circuit control.
At NCR, electromechanical relays are part of a broader portfolio of relays for industrial and electrical applications. In this article, we will explain what an electromechanical relay is, how it works, the main types available, and where it is commonly used. We will also look at its advantages, limitations, and the key factors buyers should consider when selecting a relay for a real application.

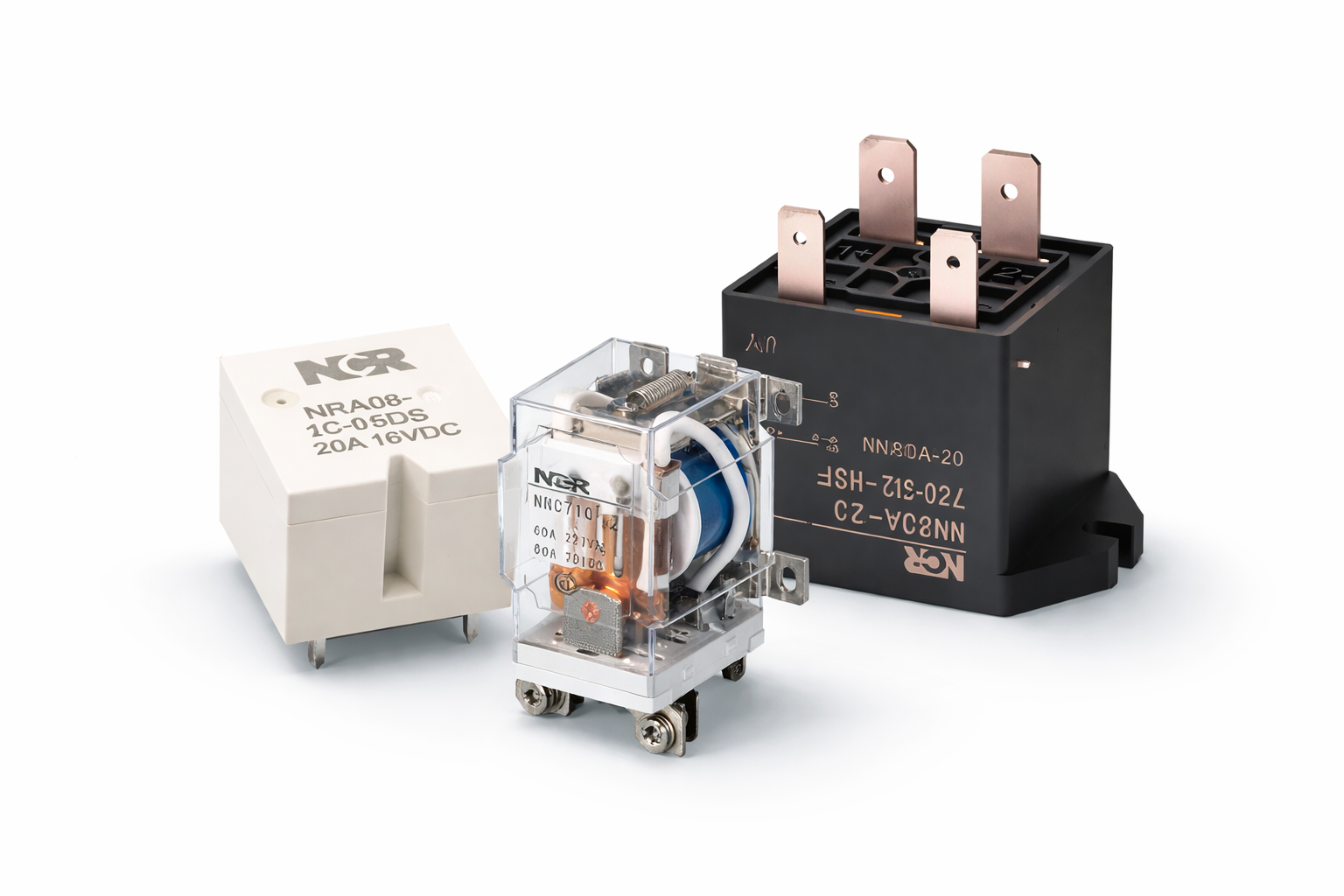

An electromechanical relay is an electrically operated switch that uses an electromagnetic coil and mechanical contacts to open or close a circuit. When current flows through the relay coil, it creates a magnetic field. That magnetic force moves an internal armature, which changes the state of the contacts. As a result, the relay can switch another circuit on or off.
In simple terms, an electromechanical relay allows a low-power control signal to operate a higher-power load circuit. This is one of the reasons relays are so common in electrical design. They make control systems safer, more flexible, and easier to manage.
You may also see the term electromagnetic relay used in many articles and product descriptions. In most practical industrial contexts, it refers to the same basic device category. The term electromechanical relay is often preferred because it highlights that the switching action depends on both electromagnetic force and mechanical movement.
For buyers, engineers, and equipment manufacturers, electromechanical relays remain a practical solution because they offer reliable switching, strong electrical isolation, and broad compatibility across many applications. If you want to explore specific models, you can visit NCR’s electromechanical relay product selection.
The working principle of an electromechanical relay is not complicated, but it is very effective.
A standard relay contains a coil, an armature, a spring, and one or more sets of electrical contacts. When voltage is applied to the coil, current flows through it and generates a magnetic field. This magnetic field pulls the armature toward the coil. As the armature moves, it changes the position of the contacts.
If the relay is designed with normally open contacts, those contacts stay open when the relay is not energized and close when the coil is energized. If the relay has normally closed contacts, the opposite happens. Some relays include both types in one device, allowing more flexible control logic.
When the coil is de-energized, the magnetic field disappears. The spring then returns the armature to its original position, and the contacts go back to their default state.
This switching action makes relays extremely useful in circuits where a low-voltage signal from a controller, sensor, timer, or switch must control a different load. That load might be a motor, heater, lamp, solenoid, compressor, fan, or other electrical device.
In many systems, the relay also provides electrical isolation between the control side and the load side. This helps protect sensitive control electronics and improves the overall safety of the design.
Although relay designs can vary by type and application, most electromechanical relays include the following core parts.
Coil: The coil is the component that creates the magnetic field. When energized, it provides the force needed to move the armature. Different relays are designed for different coil voltages, such as 5V, 12V, 24V, 48V, or other AC and DC values.
Armature: The armature is the moving mechanical part inside the relay. It responds to the magnetic field generated by the coil. Once attracted, it changes the state of the contacts.
Contacts: The contacts are the conductive parts that open or close the load circuit. Their configuration determines how the relay switches the external circuit. Common forms include normally open, normally closed, and changeover contact arrangements.
Spring: The spring returns the armature to its default position after the coil is de-energized. This ensures the relay resets correctly and consistently.
Terminals: The terminals provide connection points for the coil circuit and the switching circuit. Proper terminal design is important for reliable installation and current handling.
Housing: The housing protects internal components from dust, accidental contact, vibration, and environmental conditions. Depending on the application, housings may be open, sealed, or specially designed for harsher operating environments.
Electromechanical relays are available in many forms. The right type depends on the required switching load, mounting style, space constraints, and application environment.
General Purpose Relays: These are widely used in control systems, automation equipment, home appliances, and electrical panels. They are versatile, cost-effective, and suitable for many standard switching tasks.
Power Relays: Power relays are designed to switch higher current or voltage loads. They are often used in industrial equipment, HVAC systems, power distribution devices, and heavy-duty machinery.
PCB Relays: PCB relays are mounted directly on printed circuit boards. They are commonly used in electronic devices, communication equipment, smart control products, and compact power control applications.
Automotive Relays: Automotive relays are designed for vehicle systems and related mobile equipment. They are used in lighting, starting circuits, fans, fuel pumps, and other automotive electrical functions where durability and stable switching are essential.
Time Relays: Time relays introduce a delay in switching action. They are useful in applications where sequence control, start delay, stop delay, or timed protection is needed. If your application requires timing control, you can also explore NCR’s high-precision time relays.
Relay Sockets: In many control cabinets and industrial installations, relay sockets improve replacement efficiency and simplify maintenance. For related accessories, you can browse NCR’s professional sockets for relays.

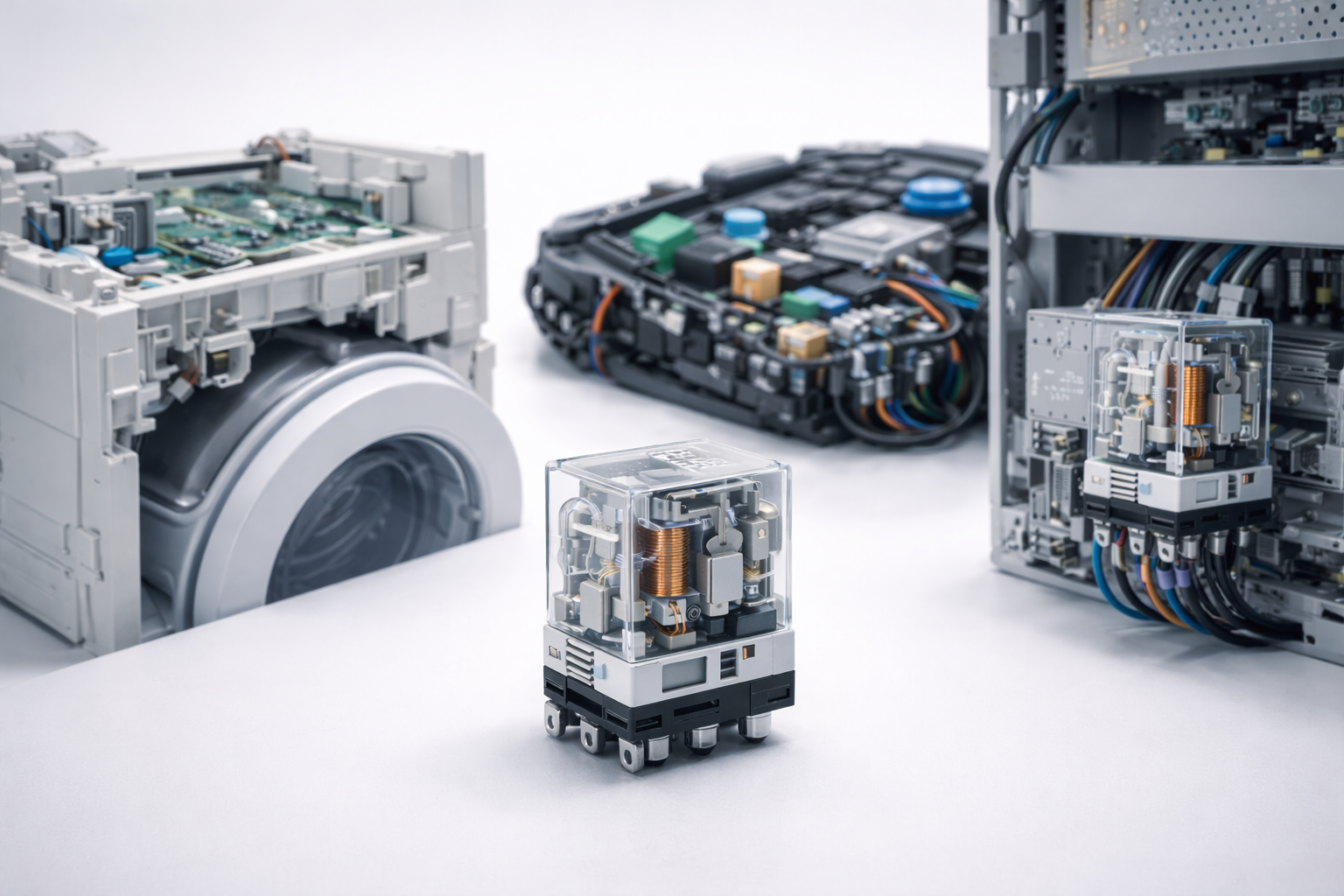

One reason electromechanical relays remain so important is their wide application range. They are not limited to one industry or one type of equipment.
Industrial Automation: In industrial automation systems, relays are used to switch motors, contactors, alarms, solenoids, heaters, and control circuits. They help connect low-power logic systems with real operating equipment in a simple and dependable way.
Control Panels and Power Systems: Electrical panels often use relays for logic control, load switching, protection functions, and signal interfacing.
Home Appliances: Household products such as air conditioners, washing machines, and refrigerators rely on relays for internal switching. For compact designs, industrial-grade micro switches may also be used.
Automotive Systems: In vehicles, relays are used for lighting, fan control, horn systems, and battery-related switching.
Building and Facility Equipment: Relays are commonly found in elevators, security systems, emergency controls, and HVAC systems.
Smart Devices and Metering Equipment: Many smart systems use relay-based switching because of its predictable behavior. In smart metering, products such as energy-efficient latching relays are widely used.
Despite the growth of electronic switching technologies, electromechanical relays still offer several clear advantages.
One important advantage is electrical isolation. The control circuit and the load circuit are physically separated, which can improve safety and help protect sensitive electronics.
Another benefit is strong load switching capability. Many electromechanical relays can handle substantial current and voltage levels, making them suitable for practical industrial tasks.
They also offer clear switching states and simple operating logic. For many applications, relay-based control remains easy to understand, troubleshoot, replace, and maintain.
Cost is another reason these relays remain popular. In many conventional switching applications, an electromechanical relay is still a cost-effective and proven solution.
No switching technology is perfect, and electromechanical relays also have limitations.
Because they rely on moving parts, they experience mechanical wear over time. Contact surfaces can degrade after repeated switching cycles. They are also generally slower than solid state alternatives. For applications requiring extremely fast switching, a high-performance solid state relay may be more suitable.
Another limitation is contact arcing, which can occur when switching certain loads. Electromechanical relays can also produce a noticeable clicking sound during operation, and they may take up more space than semiconductor-based alternatives in compact designs.
Electromechanical relays use physical contacts and moving parts, while solid state relays use semiconductor components. Because of this, solid state relays are generally faster, quieter, and better suited for high-frequency switching.
However, electromechanical relays often provide better visible isolation, simpler replacement, and strong compatibility. If your system requires high-speed switching or silent operation, a solid state relay may be the better option. If the system requires straightforward mechanical contact switching and dependable isolation, an electromechanical relay often remains the better fit.
Choosing the right relay involves several factors: coil voltage must match your control system, contact configuration (NO/NC) must suit your logic, and the load rating must handle the specific current and voltage requirements. You should also consider mounting methods (PCB vs Socket) and the operating environment.
For long-term reliability, evaluate the electrical and mechanical life. Finally, think about the supplier’s technical support. You can start by reviewing NCR’s company profile and browsing our comprehensive product catalog.
Relay quality directly influences the stability, safety, and service life of the entire system. A poorly made relay may suffer from inconsistent switching or shorter life. By contrast, working with an experienced company that understands real application requirements can provide more practical support. If you want to learn more about our capabilities, you can visit the about us page or get in touch through the contact us page.
Electromechanical relay is a practical and proven switching device that uses electromagnetic force and mechanical contact movement to control electrical circuits. Although newer switching technologies continue to develop, electromechanical relays remain essential in many industrial, commercial, automotive, and household applications.
Their continued popularity comes from a strong combination of benefits: reliable switching, good isolation, wide application range, and relatively simple system integration. At the same time, engineers and buyers still need to understand their working principle, contact structure, load compatibility, and application limits in order to choose the right model.
If you are evaluating relay options for industrial equipment, automation systems, appliances, or specialized electrical products, understanding the basics of electromechanical relays is the first step toward better product selection.
To learn more about available relay solutions, you can explore NCR’s electromechanical relay models, browse our full range of relays, or get in touch through our contact page for support.
What is the function of an electromechanical relay?
The main function of an electromechanical relay is to use a small electrical signal to control a larger electrical circuit. It acts as a switch and can also provide isolation between control and load circuits.
How does an electromechanical relay work?
When voltage is applied to the relay coil, it creates a magnetic field that moves the armature. This movement opens or closes the contacts, allowing the relay to switch another circuit.
What is the difference between an electromechanical relay and an electromagnetic relay?
In most practical usage, these two terms usually refer to the same type of relay. Electromechanical relay emphasizes both the electromagnetic actuation and the mechanical contact movement.
Where are electromechanical relays used?
They are commonly used in industrial automation, electrical control panels, home appliances, automotive systems, building equipment, and many other electrical control applications.
