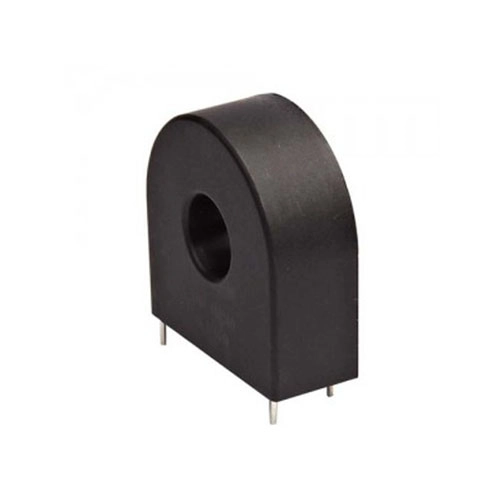

A current transformer is an instrument transformer designed to step down high primary alternating current into a proportional, lower secondary current. You rely on this specialized component to scale high system loads for safe operational monitoring. This core mechanism enables standard electrical meters, control circuits, and protective devices to monitor high-amperage systems safely. High primary current in heavy industrial lines makes direct electrical monitoring extremely hazardous for delicate instrumentation. A robust current transformer provides vital electrical isolation between primary power infrastructure and secondary components. Consequently, you maintain safe, accurate current measurement across your industrial grid infrastructure while fully safeguarding downstream operators and sensitive control devices.
Industrial power systems rely on strong magnetic fields to step down dangerous energy levels safely. A current transformer operates on the basic laws of electromagnetic induction. You place a primary conductor inside the transformer core to monitor high levels of alternating current without opening the main circuit. This design lets you analyze live power flows dynamically. Plant engineers inspect system performance continuously without interrupting main utility operations. You can gather operational metrics efficiently across complex facility networks.
Every current transformer relies on physical magnetic coupling between two separate electrical paths. The operational process follows four distinct physical steps:
An alternating current (e.g., 500A) flows through the primary conductor, creating a changing magnetic field around it.
The magnetic core concentrates this magnetic flux, providing a low-resistance path.
The changing magnetic field induces a current in the secondary winding.
The secondary signal is proportional to the primary load, determined by the CT ratio (e.g., 500A/5A yields 5A secondary when primary is 500A).
This inductive coupling provides solid electrical isolation. You can sample massive energy loads while keeping downstream operators completely safe. The magnetic core continuously transfers electromagnetic energy from the primary line to the secondary wire loops. High primary flow creates proportional magnetic lines of force. These magnetic lines sweep across the tightly wrapped secondary turns. The secondary wire then outputs a reduced signal for accurate analysis. Robust physical insulation protects expensive measurement tools from severe electrical disturbances and heavy power surges. Proper magnetic isolation prevents severe ground loops across sensitive monitoring panels.
You need standardized output levels to operate digital monitoring equipment reliably. Standard equipment designs scale secondary output levels down to 5 A or 1 A for safe current measurement. This consistent step-down standard allows you to connect standardized panel meters, monitoring devices, and protective equipment directly to high-voltage lines.
The CT ratio is defined as Primary Current ÷ Secondary Current. For example, a CT rated 600A/5A means when primary current is 600A, secondary output is 5A. If primary current is 300A, secondary becomes 2.5A.
The physical turns ratio determines this scaling performance. The secondary output equals the primary load multiplied by the turns ratio, where turns ratio equals primary turns divided by secondary turns (I_s = I_p * a, where a = N_p/N_s). Ideal transformers change output inversely with voltage. Therefore, the turns ratio directly scales the primary load down to produce the lower output signal. You count secondary wire turns wrapped around the core structure to calculate exact conversion factors accurately. This simple linear relationship makes system calibration straightforward for field technicians.
Common industrial systems utilize standardized primary ratings. You will frequently encounter primary ratings such as 100 A, 250 A, 500 A, and 800 A in factory installations. Selecting the correct primary rating ensures precise current sensing across your entire operational range. Precise signal tracking prevents system saturation during unexpected power surges. Modern energy networks require continuous sensing to maintain system balance. Safe measurement components provide the foundation for precise control across modern industrial facilities. Proper component sizing ensures smooth operations throughout demanding electrical distribution grids.
Modern industrial facilities rely on precise electrical monitoring to control operational costs and maintain continuous system stability. You deploy a current transformer across main distribution panels to step down dangerous alternating current safely. This essential component provides vital electrical isolation between high-voltage power lines and sensitive secondary measurement equipment. You can monitor high-power industrial motors, heating furnaces, and facility HVAC systems dynamically without exposing panel operators to hazardous voltage levels.
Modern energy infrastructure requires reliable data collection for utility billing and facility control systems. Current transformers support several core applications across smart industrial sites:
Energy cost allocation across facility production lines
Motor load monitoring for heavy pumps and air compressors
Real-time performance tracking for EV charging infrastructure
Operational quality monitoring in smart grid automation
Utility networks specify Class 0.2 and Class 0.5S units for accurate energy metering. These high-precision instruments deliver the minimal measurement error required for financial revenue billing and primary grid calibration systems.
Protective electrical infrastructure prevents catastrophic grid failures and severe equipment damage across utility lines. You connect current transformer outputs directly to protective relay input terminals. The protective relay continuously monitors the incoming current flow and compares the output signal against predefined safety thresholds. The relay sends an immediate trip signal to open a circuit breaker when the measured current exceeds safe operational limits. This automated protection routine isolates dangerous overcurrent conditions instantaneously or through calculated time delays.
Modern power networks pair current sensing components with heavy-duty switching hardware to optimize overall system reliability. Industry providers like NCR manufacture specialized magnetic latching relays for smart grid automation, including robust components like the 40/50A NRL708C, 60A/80A NRL709HC, 100A NRL715B, and 120A NRL711C models. Intelligent current monitoring empowers grid operators with real-time fault detection and remote diagnostics across distributed power networks. Rapid fault detection minimizes unexpected system downtime while keeping downstream utility infrastructure fully protected.
You must evaluate specific system requirements to select the optimal current transformer for your electrical panel. Engineers review several technical parameters before choosing a unit for power monitoring.
Conductor Size & CT Window Size
Installation Type — Solid-Core or Split-Core
Primary Current
Secondary Output
Accuracy Class
Connection Type
Certification Requirements
Custom Design & Engineering Support
You align these parameters with your project goals to ensure reliable performance across your facility.
You can choose between solid-core and split-core designs based on your installation needs. Solid-core units offer high accuracy and robust short-circuit withstand ratings. However, you must disconnect system conductors during installation. Split-core models feature a clamp-on design. You install them without shutting down equipment or disconnecting service.
Aspect | Solid-Core | Split-Core |
|---|---|---|
Installation | Requires disconnecting conductors | Clamp-on design; no service interruption |
Accuracy | Higher accuracy | Slightly lower accuracy due to air gap |
Price | Lower price | Higher price point |
Labor & downtime | Higher labor costs and longer downtime | Reduces labor costs and eliminates downtime |
You prefer split-core units during retrofit projects where shutting down power feeder lines is operationally expensive. Solid-core designs fit new installations where workers easily thread cables through core windows.
You select specific accuracy classes based on your measurement goals. Split-core options vary by model performance tier.
Split-Core Model Type | Current Range | Accuracy Class |
|---|---|---|
Budget (uncalibrated) | 100–300A | Class 3.0 |
Mid-tier (UL-listed) | 100–1200A | Class 0.5–1.0 |
Premium (nanocrystalline) | 200–5000A | Class 0.2–0.5 |
IEEE C57.13 defines accuracy designations for transformer design verification.
Designation | Meaning | Application |
|---|---|---|
C | Calculated rating - equally distributed windings | Values derived mathematically |
T | Tested rating - non-equally distributed windings | Actual laboratory testing required |
L | Low-reactance design (CSA) | Calculated performance permissible |
You must also manage total burden rating within secondary circuits. Secondary burden includes winding resistance, connecting wire resistance, and connected meter impedance. Excessive burden degrades measurement accuracy and forces current sensing components into core saturation during fault conditions.
A current transformer bridges high-power grid infrastructure and delicate control devices. You achieve safe, precise current measurement by converting heavy alternating current into manageable output signals. Selecting the proper form factor, such as solid-core or split-core designs, ensures smooth installation for your operations. You must also evaluate accuracy classes and system compatibility to protect downstream equipment effectively. Modern smart grids require advanced components with digital IoT integration for real-time monitoring and automation. Quality current transformer units feed accurate signal data directly into protective relays and SCADA systems. This precise control isolates grid faults quickly, supports revenue metering, and ensures overall power grid reliability.
Selecting the right current transformer requires more than matching a current ratio. Your project may also require specific accuracy classes, installation configurations, certification requirements, and secondary output specifications. Working with an experienced manufacturer helps ensure that these parameters are properly matched to your electrical system.
NCR provides current transformer solutions for industrial power monitoring, circuit protection, smart grids, and energy management applications. Its product range supports different current ratings, accuracy requirements, and installation configurations, helping engineers select suitable components for both new installations and retrofit projects.
For projects with specific conductor sizes, space limitations, accuracy requirements, or certification needs, a standard current transformer may not provide the best fit. NCR can support customized current transformer requirements based on your application parameters and electrical system configuration.
If you are planning a new power monitoring system, upgrading an existing electrical panel, or sourcing current transformers for a large industrial project, contact NCR to discuss your requirements and find a suitable current transformer solution for your application.
You create extremely high voltage across the open secondary terminals when primary current flows. This high voltage destroys equipment insulation and poses dangerous shock hazards to operators. Always short the secondary terminals before disconnecting any connected meter.
Standardized ratings allow you to safely match industrial meters and protective relays with high-voltage power lines. Lower output values reduce physical wire size requirements and keep panel control environments safe for monitoring technicians.
You can install solid-core units in retrofits only if you disconnect the primary power cables. Split-core designs offer a faster installation path for existing panels because you clamp them directly around conductors without shutting down system power.
A current transformer measures energy flow by scaling down high primary current levels. In contrast, a potential transformer steps down high system voltages for safe voltage measurement devices. Both instrument transformers isolate monitoring panels from high primary power levels.
