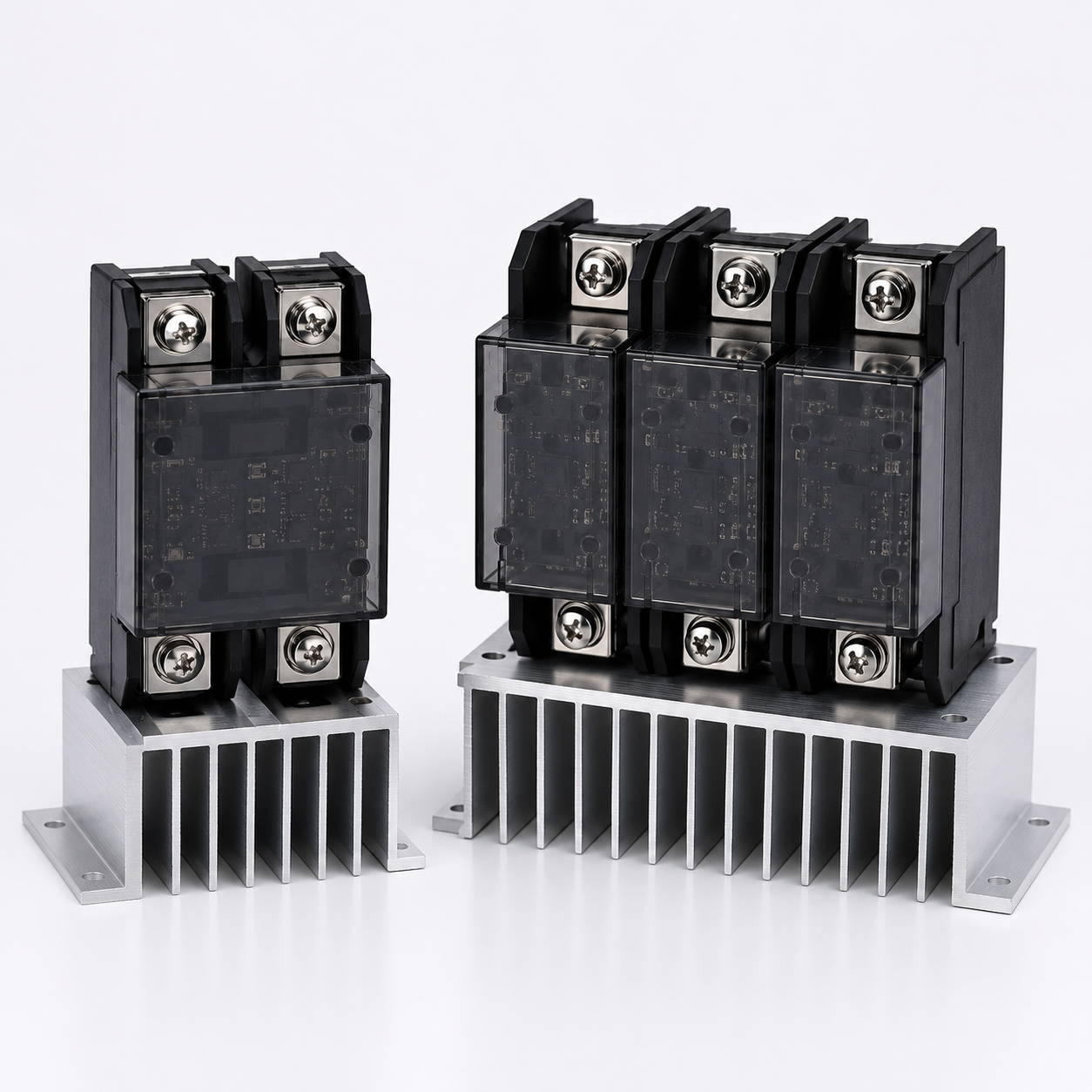

Choose a single phase SSR for heaters and small AC loads, and choose a three phase SSR for industrial machinery and three-phase power control. The right choice depends on load phase, current rating, voltage, control signal, load type, heat dissipation, and panel installation conditions.
For industrial buyers, the difference is not only about whether the load is single phase or three phase. A solid state relay must also match the real operating environment. Load current, starting current, ambient temperature, switching frequency, wiring space, and heat sink design can all affect long-term reliability. If the SSR is selected only by its nominal current rating, the system may still face overheating, unstable switching, or premature failure.
A single phase solid state relay is normally used to control one-phase AC loads. It is common in heater control, temperature control systems, lighting control, and small automation equipment. A three phase solid state relay is designed for three-phase loads, especially where industrial equipment requires stable and contactless switching.
Comparison | Single Phase SSR | Three Phase SSR |
|---|---|---|
Best For | Single-phase AC loads | Three-phase industrial loads |
Typical Loads | Heaters, lighting, small machines, temperature control systems | Three-phase heaters, industrial ovens, machinery, power control systems |
Wiring Complexity | Simpler wiring structure | More complex wiring and phase matching |
Panel Space | Usually more compact | Requires more space for wiring and heat dissipation |
Selection Tip | Choose it when the load is clearly single phase | Choose it when the load uses three-phase power |
A solid state relay, often called an SSR relay, is an electronic switching device that controls a load without mechanical contacts. Instead of using a moving armature like an electromechanical relay, it uses semiconductor components to turn the output circuit on and off.
This structure gives SSRs several advantages in suitable applications. They operate silently, switch quickly, and are well suited for frequent switching. Because there are no mechanical contacts to wear out, SSRs are often used in temperature control, heating equipment, industrial automation, and control panels where long service life and stable switching are important.
However, SSRs also require careful selection. They generate heat during operation and must be matched with the correct load type, voltage, current rating, and heat dissipation method. For related products, you can view NCR solid state relays.
A single phase solid state relay is used to switch a single-phase load. It is commonly applied in AC heating circuits, temperature controllers, lighting systems, small industrial equipment, and control cabinets. In many temperature control systems, the controller sends a low-voltage signal to the SSR, and the SSR switches the heater on and off according to the control demand.
Single phase SSRs are often selected when the load current is moderate and the wiring structure needs to remain simple. They are also suitable for compact equipment where panel space is limited. In heater control applications, a single phase SSR can provide frequent and stable switching without the contact wear normally associated with mechanical relays.
A three phase solid state relay is designed to switch three-phase AC loads. It is used in industrial equipment where higher power and balanced three-phase control are required. Typical applications include three-phase heaters, industrial ovens, plastic machinery, packaging machinery, and other heavy-duty automation systems.
Compared with a single phase SSR, a three phase SSR usually involves more wiring, higher power levels, and stronger heat dissipation requirements. It must be selected according to the load current of each phase, the working voltage, the control input signal, and the installation environment inside the control cabinet.
For buyers and engineers, the most important difference is the power system that the SSR needs to control. A single phase SSR should not be used as a simple substitute for a three phase SSR when the load requires three-phase switching. The SSR type must match the electrical system and the way the load operates.
Selection Factor | Single Phase SSR | Three Phase SSR | Buyer’s Note |
|---|---|---|---|
Load Phase | Controls one phase | Controls three phases | Confirm the power supply and load wiring before selection. |
Typical Load Type | Heater, lighting, small AC load | Three-phase heater, machinery, industrial equipment | Match the SSR with the actual load type. |
Wiring Method | Relatively simple | More complex | Incorrect phase wiring can cause system failure. |
Current Rating | Selected by single-phase load current | Selected by three-phase load current | Leave enough current margin for continuous operation. |
Heat Generation | Depends on current and duty cycle | Usually higher in larger industrial loads | Heat sink and ventilation are critical. |
Control Signal | Often connected to PLC or temperature controller | Also controlled by PLC or industrial controller | Input voltage must match the control device. |
Cost | Usually lower | Usually higher | Choose based on system need, not only price. |
Choosing the right SSR should follow the actual electrical and mechanical conditions of the project. A product that works well in one control panel may not be suitable for another system if the load type, current level, heat dissipation, or control signal is different.
The first step is to confirm whether the load uses single-phase or three-phase power. If the load is a single-phase heater, lighting circuit, or small AC load, a single phase SSR is usually suitable. If the equipment uses three-phase power, such as a three-phase heater or industrial machine, a three phase SSR should be considered.
The SSR current rating should not be selected only according to the normal running current. Industrial loads may run continuously, operate in hot environments, or generate inrush current during start-up. A proper safety margin helps reduce overheating risk and improves reliability.
The output voltage range of the SSR must match the load voltage. If the voltage rating is not suitable, the relay may fail to switch correctly or may be damaged during operation. Buyers should check both the nominal voltage and the actual voltage fluctuation in the system.
The SSR input side is usually controlled by a PLC, temperature controller, or other control device. The input voltage range must match the controller output. Before purchasing, it is important to confirm whether the control signal is DC or AC and whether the voltage range is compatible.
Resistive loads, such as heaters, are usually easier for SSRs to control. Inductive loads and motor-related loads may generate higher inrush current or electrical stress. In these applications, the SSR should be selected with more attention to surge capacity, switching type, protection design, and heat dissipation.

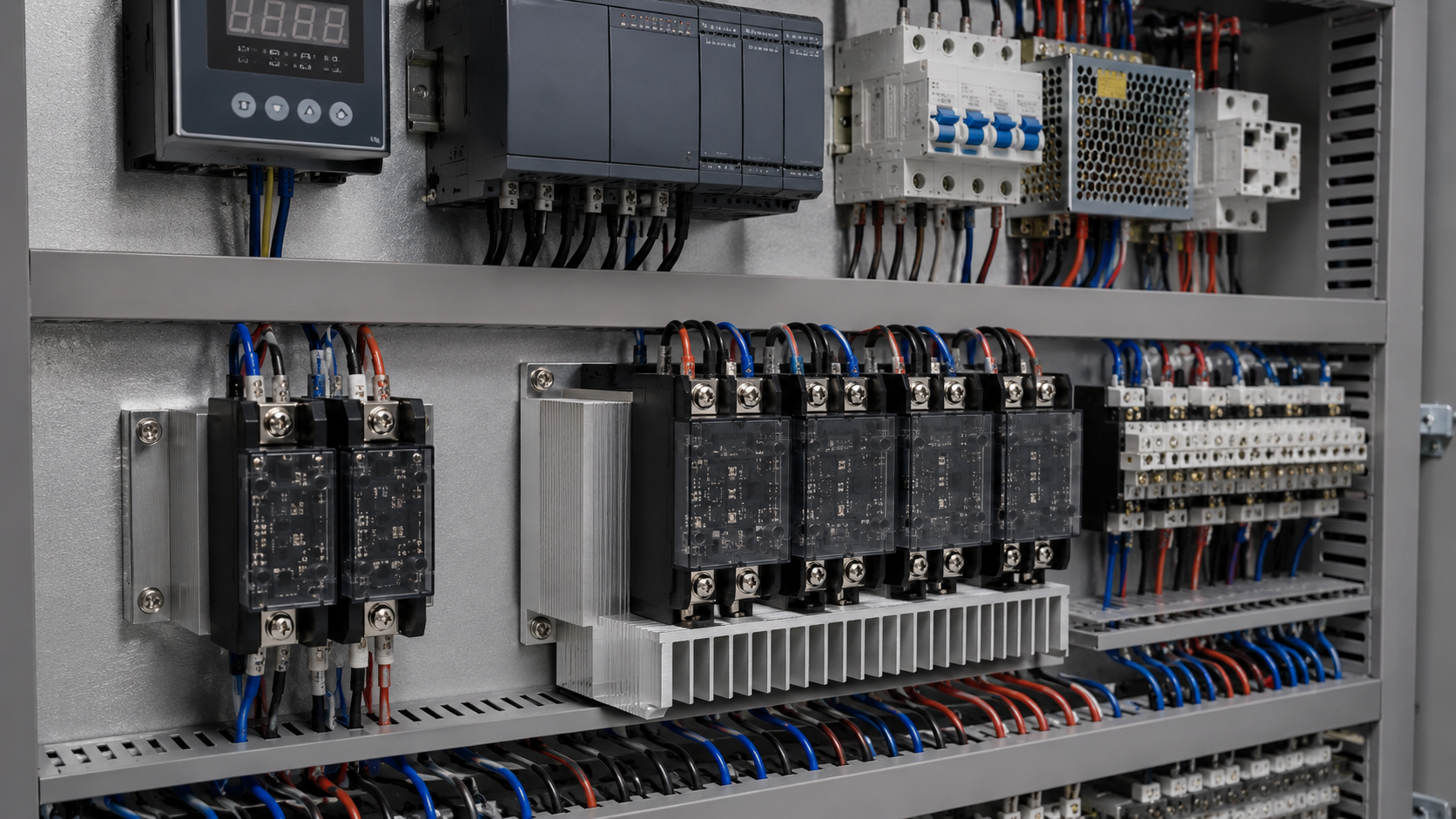

SSR installation space affects wiring, maintenance, and cooling. High-current SSRs may require a heat sink and enough ventilation space. When several SSRs are installed in the same cabinet, the layout should avoid excessive heat concentration.
Need help selecting a single phase or three phase solid state relay for your industrial load? Contact Us
Current rating is one of the most important factors in SSR selection. Common SSR current ratings include 10A, 15A, 20A, 25A, 30A, 40A, 60A, and 80A. However, the correct choice is not simply the smallest rating above the load current.
In real applications, the SSR must handle heat, continuous operation, ambient temperature, and possible current peaks. For example, a heater may have a stable current after warming up, but the control cabinet may operate at a higher internal temperature. In this case, a larger current margin and better heat dissipation may be necessary.
For inductive or motor-related loads, current margin becomes even more important because starting current can be much higher than normal running current. If the SSR is selected too close to the rated load current, the device may overheat or fail during repeated operation.
Switching type is another important selection factor. In many industrial control systems, SSRs are available as zero-crossing types or random turn-on types. The correct choice depends on the load and control requirement.
Switching Type | Best For | Advantage | Selection Note |
|---|---|---|---|
Zero-Crossing SSR | Heaters, lighting, resistive loads | Reduces electrical noise and switching stress | Often preferred for temperature control and heating applications. |
Random Turn-On SSR | Fast switching or special control applications | Turns on immediately after receiving the control signal | Useful when precise phase control or fast response is required. |
For most heater control applications, zero-crossing SSRs are commonly used because they provide smoother switching and lower electrical noise. For special loads or control methods, random turn-on SSRs may be more suitable. Buyers should check the controller type and the load behavior before making the final decision.
Unlike mechanical relays, SSRs have a voltage drop during conduction, and this voltage drop creates heat. The higher the load current, the more important heat dissipation becomes. If heat cannot be removed effectively, the internal semiconductor components may be damaged.

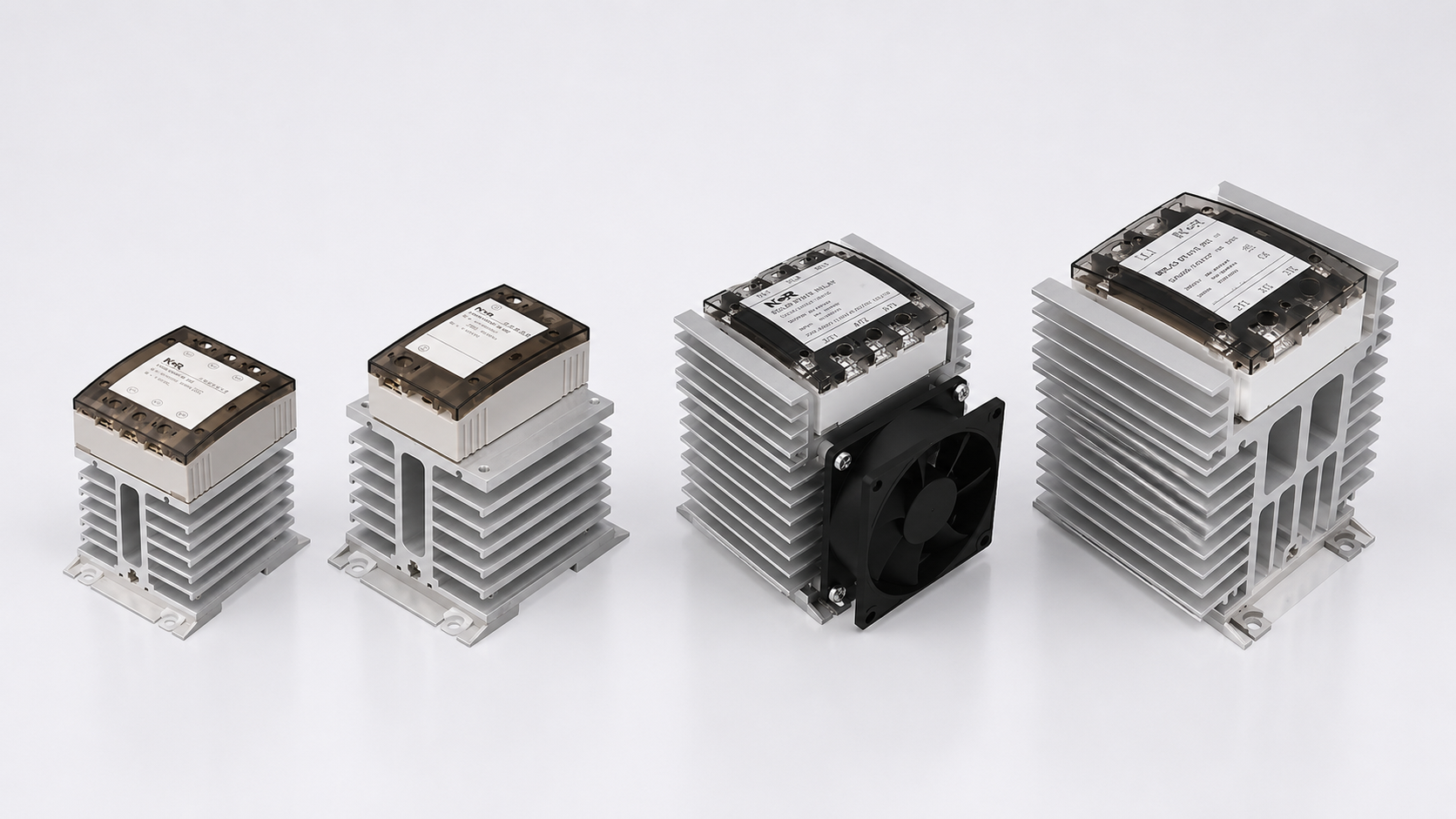

High-current SSRs often need a suitable heat sink, a flat mounting surface, thermal grease, and enough airflow inside the control panel. In a compact cabinet, multiple SSRs should not be installed too closely without considering heat accumulation. Poor ventilation, high ambient temperature, and continuous operation can all reduce the real usable current capacity of the SSR.
For long-term reliability, heat dissipation should be considered at the design stage, not only after failure occurs. A properly selected SSR with adequate cooling can provide more stable operation in industrial systems.
Different applications require different SSR types. The following table gives a practical reference for common industrial loads.
Application | Recommended SSR Type | Key Selection Factor |
|---|---|---|
Single-phase heater | Single phase SSR | Current rating, heat sink, zero-crossing switching |
Temperature controller | Single phase SSR | Input control voltage and switching frequency |
Lighting control | Single phase SSR | Load current and switching noise |
Small AC load | Single phase SSR | Voltage range and installation space |
Three-phase heater | Three phase SSR | Phase matching, current margin, heat dissipation |
Industrial oven | Three phase SSR | Continuous operation and thermal management |
Packaging machinery | Single phase or three phase SSR | Load type and control frequency |
Plastic machinery | Three phase SSR | High-current load and cabinet cooling |
Motor-related control | Application-dependent SSR | Inrush current and inductive load behavior |
One common mistake is using a single phase SSR for a load that actually requires three-phase control. This may lead to incomplete switching, unsafe wiring, or equipment malfunction. The SSR type must match the load phase and circuit design.
Another mistake is choosing the current rating with no safety margin. A 40A SSR does not always mean it can operate safely at 40A in every environment. Real operating capacity depends on heat sink quality, ambient temperature, installation spacing, and duty cycle.
Ignoring heat sink requirements is also a major cause of SSR failure. High-current SSRs should not be installed without proper thermal management. If the mounting surface is uneven or ventilation is poor, the relay may overheat even when the load current appears acceptable.
Other common mistakes include using the wrong output voltage, mismatching the control voltage, ignoring inrush current, choosing the wrong switching type, installing SSRs too closely in a hot panel, and failing to check the product datasheet before installation.
A single phase SSR controls one-phase loads, while a three phase SSR controls three-phase loads. The choice depends on the power supply, wiring method, and load type.
In most cases, it is better to use an SSR type designed for the actual load. A three phase SSR is intended for three-phase systems, while a single phase SSR is usually more suitable for single-phase loads.
Many SSRs, especially high-current models, require a heat sink. The need depends on load current, ambient temperature, duty cycle, installation method, and cabinet ventilation.
Choose the SSR current rating according to the load current, starting current, operating time, heat dissipation condition, and ambient temperature. A safety margin is usually needed for stable long-term operation.
Zero-crossing SSRs are commonly used for heater control because they help reduce switching noise and electrical stress in resistive load applications.
Yes. Many SSRs can be controlled by PLC output signals, but the SSR input voltage range must match the PLC output type and voltage.
Single phase SSRs are suitable for single-phase heaters, temperature control systems, lighting, and small AC loads. Three phase SSRs are better for three-phase heaters, industrial machinery, ovens, and higher-power power control applications.
When choosing between a single phase and three phase solid state relay, buyers should confirm the load phase, current rating, voltage range, control signal, load type, switching type, heat dissipation condition, and panel installation space. A suitable SSR can improve switching stability, reduce maintenance needs, and support reliable long-term operation in industrial control systems.
