In industrial control systems, relays are often treated as standardized components selected mainly by rated voltage and current. However, in real engineering environments, temperature and altitude are two of the most critical factors that directly determine whether a relay performs reliably or fails prematurely.
For B2B buyers working on industrial automation, power distribution, EV charging systems, or renewable energy projects, relay failure is rarely caused by “bad quality alone.” Instead, it is usually the result of improper derating under harsh environmental conditions. High ambient temperature, enclosed control cabinets, and high-altitude installations can significantly reduce switching stability, shorten electrical life, and increase failure risks.
This is why professional selection must go beyond catalog specifications and include real environmental conditions from the project site.
Relays operate through electromagnetic or semiconductor switching mechanisms, both of which are sensitive to thermal and atmospheric conditions.
In control cabinets, internal heat accumulation is often much higher than ambient temperature due to power losses from PLCs, power supplies, and switching devices. When combined with external heat sources, the relay may operate continuously near or beyond its rated thermal limit.
Altitude introduces another layer of complexity. As elevation increases, air density decreases, which reduces heat dissipation efficiency and dielectric strength. This directly impacts insulation performance and arc extinguishing capability in electromechanical relays.
Typical high-stress environments include steel plants, mining operations, solar power stations, and outdoor electrical distribution systems.
High temperature is one of the most common causes of relay degradation in industrial applications.
For electromechanical relays, coil resistance increases as temperature rises. This leads to higher pickup voltage requirements and potential failure to actuate under marginal control signals. At the same time, contact surfaces oxidize faster, increasing contact resistance and accelerating electrical wear.
In high-current applications, arc energy becomes more difficult to control, which may result in contact pitting or welding over time.
For solid state relays (SSR), temperature affects semiconductor junctions directly. Increased junction temperature leads to higher conduction losses and reduced efficiency. Without proper heat dissipation, SSRs may enter thermal runaway conditions, especially in high-frequency switching environments.
This is why proper thermal design is not optional but essential in industrial relay applications.

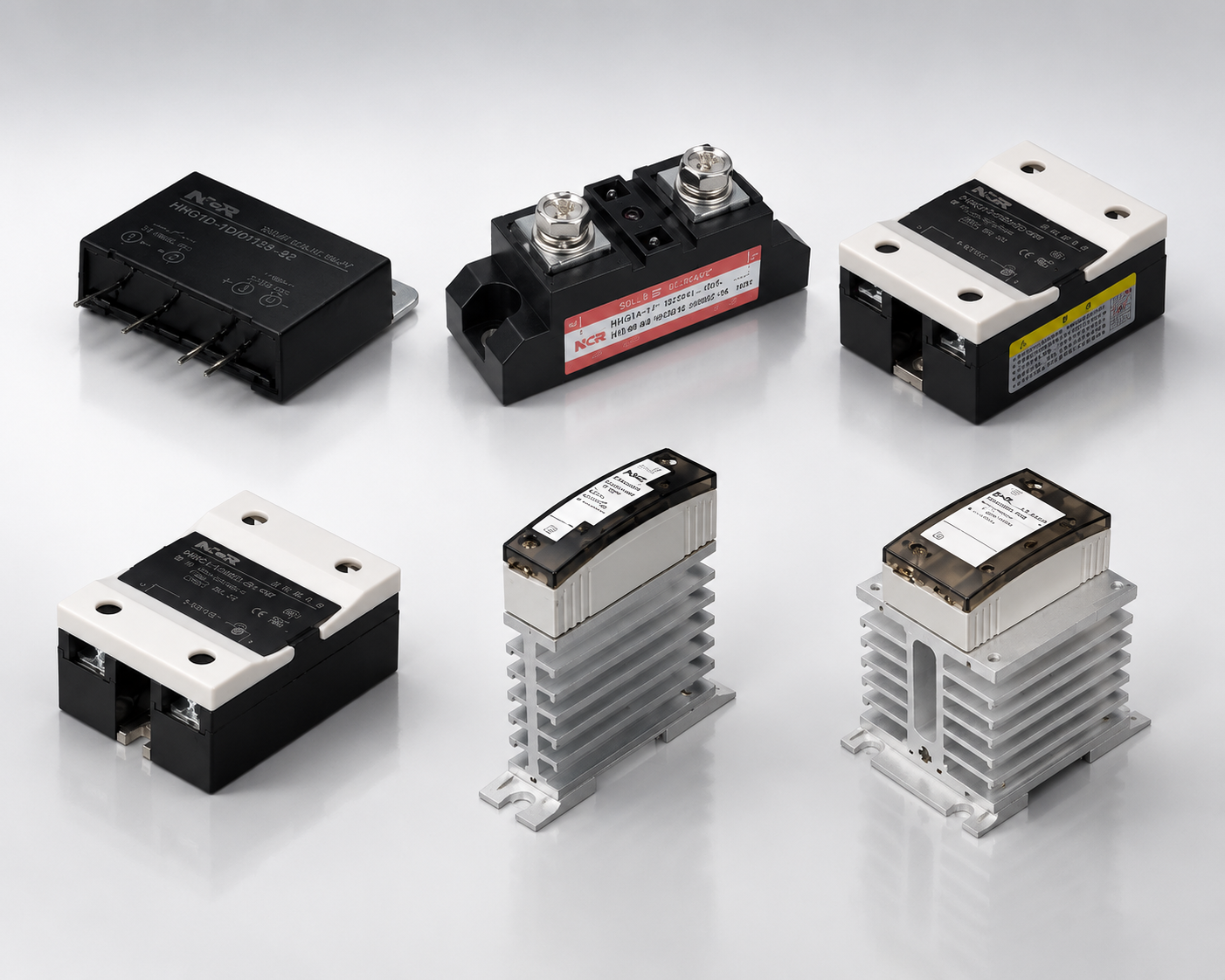

For more SSR-related solutions, you can explore the NCR Relay solid state relay product range designed for industrial-grade switching applications, including high-load control, automation systems, and temperature-sensitive environments.
Low temperature environments are often underestimated, especially in northern regions or high-altitude outdoor installations.
At low temperatures, coil response time in electromechanical relays increases, which may cause delayed or unstable switching. Lubrication materials inside mechanical structures can also become less effective, reducing mechanical smoothness and consistency.
Another important risk is cold-start current surge. When systems are powered up in low temperatures, inrush current can be significantly higher, placing additional stress on relay contacts.
In critical applications such as outdoor control panels or unattended systems, these effects must be considered during design.
Altitude has a direct influence on both electrical insulation and thermal performance.
As altitude increases, air pressure decreases, which reduces the dielectric strength of air. This means that the same voltage level has a higher risk of electrical breakdown or arcing at high altitude compared to sea level conditions.
Arc extinction becomes less effective in electromechanical relays, increasing the likelihood of contact damage under load switching.
At the same time, reduced air density lowers convective cooling efficiency, making it harder for both relays and control cabinets to dissipate heat.
Industry standards typically require derating above 1000 meters, and engineering correction factors must be applied during system design.
Derating is not a theoretical concept—it is a practical engineering requirement for safe operation.
When selecting relays for industrial systems, engineers must evaluate temperature-based current derating curves. As ambient temperature increases, the maximum allowable load current must be reduced to maintain safe operation.
Altitude derating is equally important. Above certain elevations, both insulation distance and heat dissipation capacity are reduced, requiring conservative design margins.
Load type also plays a major role. Inductive loads such as motors and transformers generate switching surges that require higher safety margins compared to resistive loads.
In harsh environments, solid state relays are often preferred for high-frequency switching applications due to their lack of mechanical wear, while electromechanical relays remain preferred for cost-sensitive and general-purpose control circuits.
Proper thermal management at the system level is critical for extending relay lifespan.
Control cabinet design should ensure effective airflow paths, avoiding heat accumulation around high-power components. In many industrial failures, relays are not the root cause—the actual issue is poor cabinet thermal design.
For SSR applications, heat sinks and thermal interface materials such as conductive pads or grease are essential to maintain safe junction temperatures.
Relay layout should also avoid thermal stacking, where multiple heat-generating components are placed too closely together.
In sealed or high-IP-rated enclosures, internal heat accumulation must be carefully calculated during system design.
Temperature and altitude challenges are particularly relevant in several industrial sectors.
In photovoltaic inverter systems and outdoor power distribution units, relays operate under continuous thermal cycling and direct environmental exposure.
Mining and metallurgical industries present extreme dust, vibration, and heat conditions that significantly shorten component lifespan.
EV charging infrastructure introduces high power switching loads combined with outdoor temperature variation, making relay reliability a critical safety factor.
High-altitude power infrastructure projects also require special attention due to reduced air pressure and cooling efficiency.
These applications demand carefully selected relay solutions designed for environmental robustness rather than standard laboratory conditions.
For B2B procurement teams and system integrators, relay selection should always start with environmental mapping.
Key parameters include rated operating temperature range, maximum continuous load current, insulation strength, and altitude compatibility. These specifications should be matched against real installation conditions rather than nominal lab ratings.
Electromechanical relays are typically preferred for general control applications with moderate switching frequency, while solid state relays are better suited for high-cycle or high-temperature switching environments.
For industrial-grade relay solutions covering electromechanical, SSR, and high-voltage applications, you can explore our industrial relay product range covering electromechanical relays, solid state relays, and high-voltage applications.
Q1: Can relays operate continuously at 60°C?
Yes, but only if derating is applied based on load current and enclosure thermal conditions.
Q2: Do installations above 2000m require special relay selection?
Yes. Reduced air density affects insulation and heat dissipation, requiring altitude derating.
Q3: Are SSRs always better than electromechanical relays in high temperature environments?
Not always. SSRs handle heat differently, but require effective heat dissipation systems.
Q4: What typically fails first in an overheated control cabinet?
Relays, power supplies, and terminal connections are often the first affected components.
Temperature and altitude are not secondary environmental factors—they are primary design constraints in industrial relay applications. High temperature reduces lifespan and switching stability, while high altitude affects both insulation strength and thermal performance. Proper derating and system-level thermal design are essential for ensuring long-term reliability.
