In modern renewable energy systems such as solar inverters, wind turbine control units, and battery energy storage systems (BESS), relay selection is no longer a simple component-level specification task; instead, it has evolved into a system-level engineering decision that directly influences safety performance, energy efficiency, and long-term operational stability.
Unlike conventional industrial control environments where switching conditions are relatively stable, renewable energy applications are exposed to highly dynamic electrical stress conditions including high inrush current during capacitor charging, frequent load switching under variable generation conditions, and long-term outdoor environmental exposure such as temperature cycling, humidity, and altitude-related derating effects.
From a procurement and design perspective, selecting the wrong relay type does not merely lead to reduced performance; in many cases, it can trigger cascading failures such as contact welding in pre-charge circuits, unexpected inverter shutdowns, or even grid disconnection events that result in system downtime and financial loss.
This is why engineering teams must evaluate relay selection not only based on rated voltage and current, but also based on real-world operating stress conditions, switching duty cycles, and system-level integration requirements.
Although relays are often treated as auxiliary components within power conversion systems, their functional role in renewable energy infrastructure is significantly more critical than it may initially appear, as they are deeply embedded in both safety protection logic and energy flow control pathways.
In solar inverter systems, relays are commonly used to manage pre-charge circuits that control the initial charging of DC link capacitors, a process that involves extremely high transient current levels which must be carefully controlled to avoid damaging power semiconductor devices.
In wind turbine control systems, relays are frequently integrated into yaw control, pitch adjustment, and auxiliary braking circuits, where they must maintain reliable switching performance under continuous vibration and wide temperature variation conditions.
In both cases, relays also serve as safety isolation components that disconnect the system from the grid or internal power buses during fault conditions, ensuring compliance with international safety standards and preventing backfeed risks that could damage upstream infrastructure.
One of the most common challenges faced by maintenance engineers in renewable energy systems is that relay failures are often misdiagnosed as system-level inverter or controller faults, when in reality the root cause is usually related to electrical stress or environmental derating issues.
For example, contact welding is frequently observed in solar inverter pre-charge circuits, particularly when inrush current exceeds the relay’s design tolerance during repeated startup cycles, leading to gradual degradation of contact surfaces until permanent adhesion occurs.
Similarly, overheating issues inside sealed inverter cabinets are often attributed to poor ventilation, but in many cases the actual root cause is excessive coil power dissipation or improper relay selection that does not account for ambient temperature accumulation inside compact enclosures.
In wind energy systems, mechanical fatigue caused by continuous vibration can lead to micro-movement of relay contacts, which over time increases contact resistance and introduces intermittent signal instability that is difficult to detect during standard maintenance checks.
These failure modes highlight the importance of selecting relays based on application stress profiles rather than nominal datasheet values alone.
Solar inverter systems present one of the most demanding environments for relay operation due to the combination of high DC voltage levels and severe inrush current conditions generated during capacitor charging events.
During system startup, DC link capacitors can draw current spikes that are multiple times higher than steady-state operating current, which places extreme stress on relay contacts and significantly increases the risk of contact welding if the relay is not properly rated for such conditions.
For this reason, engineers must carefully evaluate not only the rated current capacity of the relay, but also its surge current handling capability, contact material composition, and arc suppression characteristics under DC load conditions.
In many high-power inverter designs, electromechanical relays are preferred for pre-charge circuits due to their superior ability to withstand transient surge conditions, while solid state relays are often used in control logic circuits where switching frequency is higher and mechanical wear must be minimized.
In contrast to solar applications, wind power systems introduce a completely different set of design constraints that are dominated by mechanical stress, environmental variability, and long-term unattended operation requirements.
Relays used in wind turbine control systems must be capable of maintaining stable performance under continuous vibration caused by rotor movement and mechanical transmission systems, which can gradually loosen internal structures and affect contact stability over extended operational cycles.
In addition, wind turbines often operate in extremely wide temperature ranges, from sub-zero conditions during winter operation to elevated temperatures in generator enclosures, which creates continuous thermal expansion and contraction cycles that accelerate material fatigue.
Offshore wind installations further introduce challenges such as salt fog corrosion and high humidity exposure, making sealed relay structures and high-reliability contact materials essential for ensuring long service life without maintenance intervention.
One of the most misunderstood aspects of relay selection in renewable energy systems is the assumption that electromechanical relays and solid state relays are interchangeable, when in reality they serve fundamentally different functional roles within system architecture.
Solid state relays offer significant advantages in terms of switching speed, silent operation, and long electrical lifespan under high-frequency switching conditions, making them ideal for control logic circuits and low-to-medium load switching applications.
However, they also introduce continuous conduction losses and require effective thermal management solutions, such as heat sinks or forced cooling, especially in high-power applications.
Electromechanical relays, on the other hand, provide superior surge current handling capability and near-zero conduction losses during steady-state operation, which makes them more suitable for high-power switching and pre-charge circuit applications where transient overload conditions are expected.
Therefore, optimal system design typically involves a hybrid approach where both relay types are used strategically based on functional requirements rather than attempting to standardize on a single technology.
In real-world renewable energy deployments, environmental factors often become the hidden root cause behind relay performance degradation, particularly when systems are installed in outdoor or semi-exposed environments without fully accounting for thermal and atmospheric stress conditions.
High ambient temperatures inside inverter cabinets can significantly accelerate insulation aging and reduce contact life expectancy, especially when combined with poor airflow design or high component density.
Humidity and condensation cycles can introduce leakage currents and corrosion on contact surfaces, which gradually degrade switching reliability over time.
In high-altitude installations such as mountain-based solar farms, reduced air density not only affects cooling efficiency but also reduces dielectric strength, requiring additional derating of voltage and insulation parameters.
These environmental variables must be integrated into relay selection criteria at the design stage rather than treated as external assumptions.
Beyond environmental conditions, electrical stress is the most dominant factor influencing relay degradation in renewable energy systems, particularly in applications involving frequent switching of capacitive or inductive loads.
In photovoltaic systems, inrush current generated during capacitor charging events can exceed nominal operating current by several multiples, creating significant thermal and mechanical stress on relay contacts.
In wind energy systems, inductive load switching can generate voltage spikes that increase arc energy and accelerate contact erosion if not properly managed through circuit design.
DC arc suppression remains one of the most challenging aspects of relay design in renewable systems, since DC circuits lack natural zero-crossing points, making arc extinction more difficult compared to AC systems.
For this reason, contact material selection, particularly silver alloy compositions, plays a critical role in determining long-term relay performance under high-stress conditions.
From a practical engineering perspective, relay selection should always begin with application segmentation rather than product catalog comparison, as different functional blocks within renewable energy systems impose fundamentally different requirements.
For solar inverter pre-charge circuits, high-power electromechanical relays are typically preferred due to their ability to handle extreme inrush currents.
For control logic and signal switching applications, solid state relays are often more suitable due to their long electrical lifespan and fast switching characteristics.
For safety isolation and grid disconnection functions, high-voltage relays are required to ensure compliance with regulatory standards and system protection requirements.
Ultimately, the most effective design approach is not to minimize unit cost, but to optimize total system lifecycle cost by balancing reliability, energy efficiency, and maintenance requirements.
Q1: Can standard industrial relays be used in solar inverters?
A: Not recommended, because solar inverters have high DC voltage and surge current that exceed standard relay design limits.
Q2: Why do relays fail in photovoltaic systems?
A: Most failures are caused by high inrush current, thermal stress, and insufficient derating.
Q3: Which is better for renewable energy systems: EMR or SSR?
A: EMR is better for high-power switching, SSR is better for high-frequency control applications.
Q4: Why is derating important in relay selection?
A: It ensures relay stability under high temperature, DC stress, and long-term operation.
Q5: What causes relay contact welding?
A: Excessive inrush current during switching, especially in capacitive load circuits.
Q6: What is the most important factor in relay selection?
A: Surge current handling capability and thermal reliability under real operating conditions.
Relay selection in renewable energy systems is a multidisciplinary engineering decision that directly impacts electrical performance, thermal behavior, and environmental durability across the entire system lifecycle.
Solar systems are primarily challenged by surge current and DC switching stress, wind systems are dominated by mechanical vibration and environmental exposure, while energy storage systems require a balance between high-frequency control and long-term stability.
A correctly designed relay architecture not only improves system reliability but also reduces maintenance costs and extends operational lifespan, making it a critical factor in the overall success of renewable energy projects.
For engineers and procurement teams designing high-reliability renewable energy systems, selecting the right relay architecture is essential for ensuring long-term stability and safety performance.

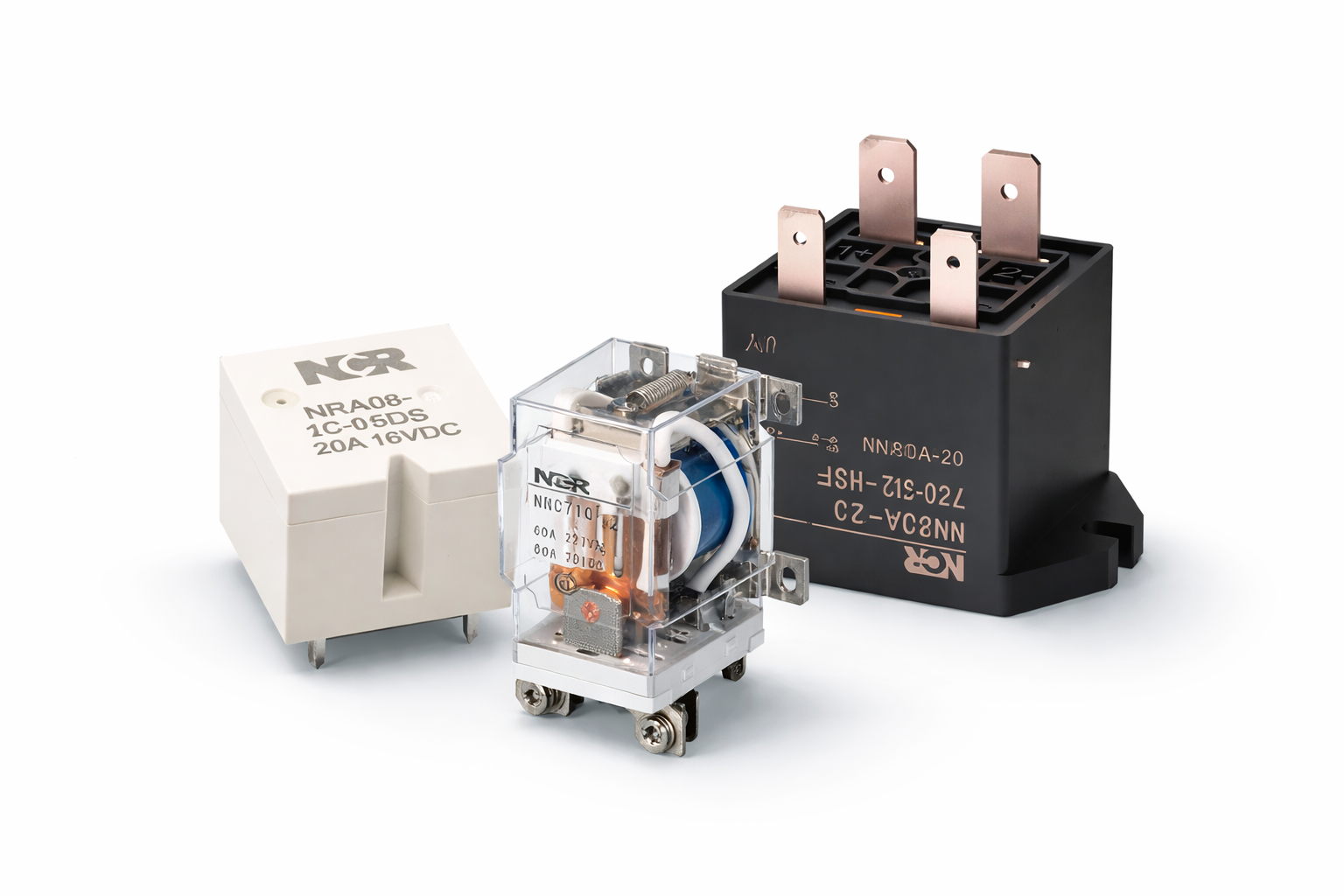

Explore NCR Relay electromechanical relay solutions designed for high-power solar inverter and wind energy applications:NCR Relay Electromechanical Relay Solutions
