In smart metering systems, relay selection is not a minor component decision—it directly affects battery life, communication reliability, and long-term operational stability of the entire device. Unlike general industrial control systems, smart meters must operate continuously for 10–15 years, often in sealed environments with strict energy consumption limits.
This creates a fundamental design constraint: every milliwatt matters.
For OEMs and utility equipment manufacturers, the key question is not just “which relay works,” but “which relay minimizes lifetime energy consumption while ensuring safe and reliable switching.”
This is where the choice between magnetic latching relays and non-latching relays becomes critical.
The core engineering difference is not structural—it is energy behavior.
A non-latching relay requires continuous coil energization to maintain its state. In other words, as long as the relay is ON, it continuously consumes power.
A magnetic latching relay, on the other hand, only consumes power during switching. Once it changes state, it retains that state mechanically or magnetically without additional energy input.
From a system design perspective, this means:
Non-latching relay = continuous power consumption + constant thermal load
Latching relay = pulse control only + zero holding power
This difference also affects MCU design in smart meters. Latching relays require pulse-driven control logic (SET/RESET), while non-latching relays only require sustained output signals.
There are specific cases where latching relays are not optional—they are mandatory for system feasibility.
In modern smart metering infrastructure, especially AMI (Advanced Metering Infrastructure) systems, relays are used for remote connect/disconnect functionality. These meters often operate in battery-powered or ultra-low power environments where continuous coil energization is unacceptable.
You must use magnetic latching relays when:
The meter operates in long standby or battery-powered mode
Remote load switching (disconnect/reconnect) is required
The system must retain switching state after power loss
Revenue protection and tamper-control functions are implemented
The meter is part of a smart grid AMI architecture
In these scenarios, a non-latching relay would continuously drain power and significantly reduce system lifespan or require a larger power supply design, which increases cost and size.
Despite the advantages of latching relays, non-latching relays still have practical value in certain applications.
They are suitable when:
The system has stable and continuous power supply
Switching events are infrequent and non-critical
Cost is the primary design constraint
No state memory is required after power loss
The application is a simple measurement or control system without remote switching
In these cases, the simplicity of non-latching relays can reduce control circuit complexity and BOM cost.
However, in modern smart metering design, these scenarios are becoming less common.
Power consumption is the most important technical reason why latching relays dominate smart meter applications.
A non-latching relay consumes coil power continuously during operation. Even if the current is relatively small, over a 24/7 operating cycle, this becomes a significant energy burden.
In contrast, a magnetic latching relay only consumes energy during switching events, which typically occur very rarely in metering applications.
From a system engineering perspective, this leads to:
Significant reduction in standby power consumption
Lower thermal stress inside sealed meter enclosures
Improved battery life in portable or remote meters
Easier compliance with energy efficiency regulations
In smart meters designed for long-term deployment, eliminating continuous coil consumption is a major architectural advantage.
In long-term deployments, reliability is more important than initial cost.
Non-latching relays experience continuous thermal stress due to constant coil energization. This accelerates insulation aging and increases long-term failure probability.
Magnetic latching relays avoid this issue entirely because the coil is only energized during switching events. This reduces heat accumulation and extends operational stability.
From a lifecycle perspective:
Mechanical wear is similar in switching events
Thermal aging is significantly lower in latching relays
Long-term failure rates are typically lower in latching-based designs
Maintenance requirements are reduced in utility-scale deployments
For smart meters deployed at scale, even small reliability improvements translate into significant operational cost savings.
The dominance of magnetic latching relays in smart meters is not accidental—it is driven by system architecture requirements.
Modern smart meters must support:
Low-power or battery-assisted operation
Remote load control (connect/disconnect functionality)
Long service life without maintenance
Stable operation under grid fluctuations
Compliance with utility efficiency standards
Non-latching relays are incompatible with these constraints due to continuous energy consumption.
As a result, most utility-grade smart meter manufacturers have standardized on magnetic latching relay architectures as the default design choice.
From an engineering integration perspective, the two relay types also differ in control complexity.
Magnetic latching relays require pulse-driven circuits, meaning the MCU must generate precise SET and RESET signals. This introduces slightly higher design complexity but significantly improves energy efficiency.
Key considerations include:
Pulse width control accuracy
Avoiding unintended switching due to noise
Ensuring reliable state detection in firmware
Designing protection circuits against mis-triggering
Non-latching relays, while simpler to control, require continuous output drive, which increases power consumption and thermal load on driving circuits.
From a procurement standpoint, the decision is not only about unit price—it is about total lifecycle cost.
Non-latching relays may appear cheaper initially, but they introduce:
Higher energy consumption over product lifetime
Increased power supply requirements
Potential thermal management costs
Shorter system efficiency lifespan
Magnetic latching relays, while slightly more expensive per unit, reduce long-term system cost by minimizing energy usage and improving reliability.
For smart meter OEMs, the real optimization metric is not BOM cost, but lifecycle cost per deployed unit.
Q1: Why can’t smart meters use only non-latching relays?
Because continuous coil power consumption significantly reduces battery life and violates low-power design requirements.
Q2: Are magnetic latching relays more expensive?
Yes per unit, but they reduce total system cost over the product lifecycle.
Q3: Does a latching relay maintain state after power loss?
Yes, this is one of its key advantages in metering applications.
Q4: Does latching relay increase control complexity?
Slightly, due to pulse control logic, but this is offset by energy savings.
Q5: How large is the power difference in real applications?
In continuous operation systems, non-latching relays consume orders of magnitude more energy due to constant coil energization.
For smart meter applications, magnetic latching relays are the preferred and industry-standard solution. Their ultra-low power consumption, state retention capability, and long-term reliability make them ideal for modern AMI and utility metering systems.
Non-latching relays are only suitable for low-cost or non-critical switching applications where energy efficiency is not a primary constraint.
Smart metering systems require components designed for long-term stability, low power consumption, and high reliability under continuous operation conditions.

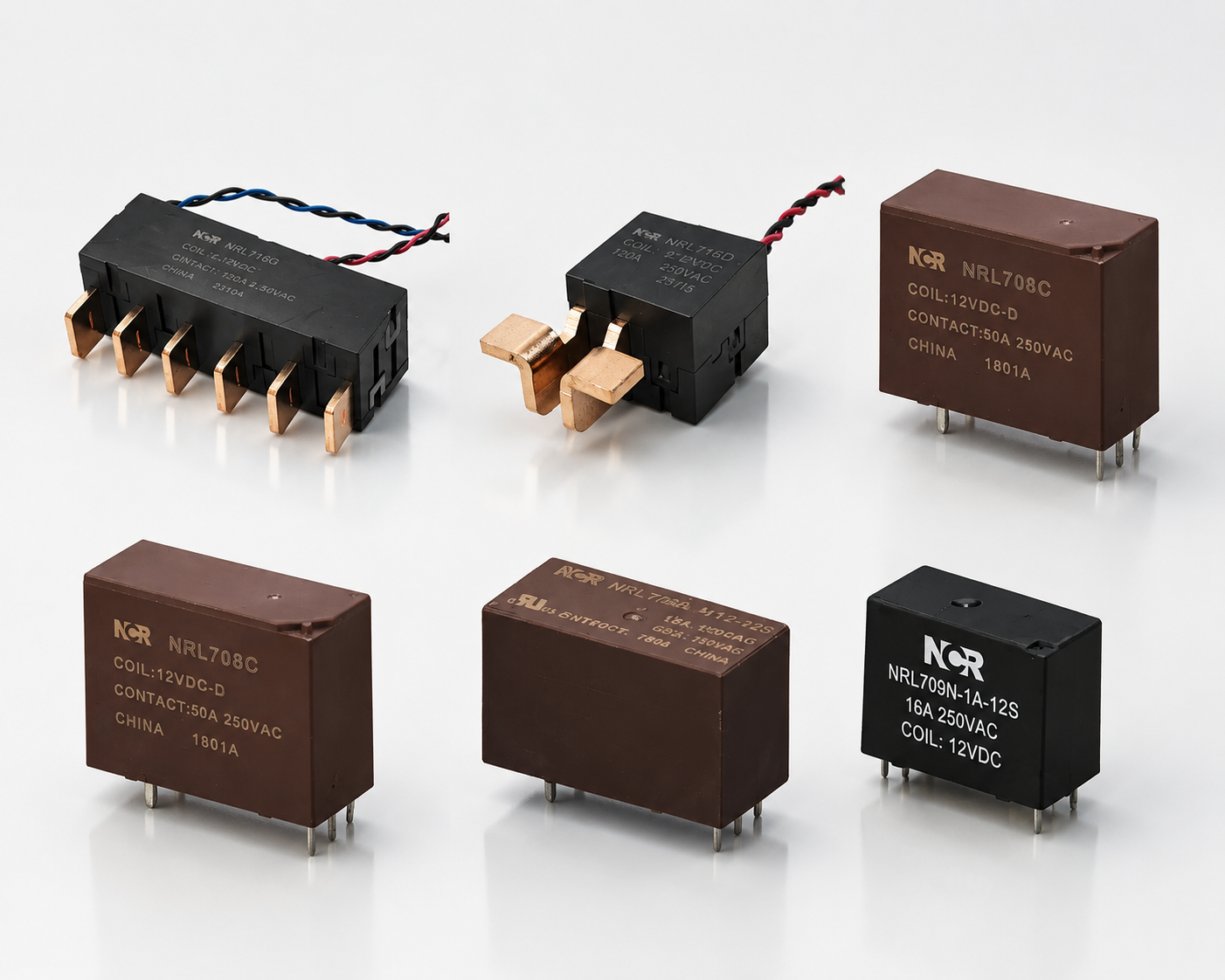

Explore NCR Relay magnetic latching relay solutions for smart meter and energy metering applications in our NCR Relay latching relay product range, designed for low-power, high-reliability metering systems.NCR Relay Latching Relay Solutions.
