The global transition toward decentralized power systems and Advanced Metering Infrastructure (AMI) has elevated the latching relay from a simple switching component to a mission-critical guardian of grid stability. Unlike conventional relays that bleed energy to maintain their state, the magnetic latching relay utilizes a bistable mechanism to "lock" its position without a continuous power supply. This breakthrough in energy efficiency and state retention is why it has become the non-negotiable standard for Smart Meter Components worldwide. As a specialist in high-performance switching, NCR (Nicerelay) provides the robust architecture needed to sustain millions of remote connections with zero idle power consumption.
The operational mechanism of a magnetic latching relay relies on a permanent magnet integrated within the electromagnetic circuit. This design allows for two stable contact positions without a continuous flow of current.
The switching process is driven by short pulses of DC voltage:
The Set Pulse: An electrical pulse energizes the coil, creating a magnetic field that overcomes the permanent magnet's force, moving the armature to close the contacts.
State Retention: Once the armature moves, the permanent magnet holds it in place. The coil power can be removed immediately, yet the contacts stay closed.
The Reset Pulse: A pulse of opposite polarity (or to a second coil) reverses the magnetic field, allowing the armature to return and open the contacts.
In a smart grid environment, every milliwatt counts. Standard relays consume significant power (often 0.5W to 1W) just to stay engaged. When multiplied by millions of smart meters in a utility network, the energy waste is staggering.
Latching relay energy efficiency is derived from its pulse-driven nature. Since the coil is only energized for 50ms to 100ms during a state change, the average power consumption is effectively zero. This prevents the meter from self-heating, ensuring the accuracy of metrological components and extending the lifespan of the entire unit.

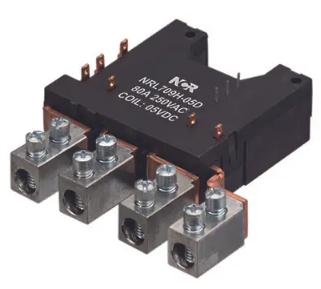

One of the most critical functions of modern energy meters is the smart meter remote disconnect. This allows utility companies to manage prepayments, handle grid emergencies, or disconnect non-paying customers without onsite visits. For this, a high-current relay like the NCR NRL709H series is required.
Reliability in remote disconnection is non-negotiable. If a relay fails to disconnect due to contact welding, it poses a severe safety risk. NCR's relays use advanced AgSnO2 (Silver Tin Oxide) contact materials to resist welding even under high inrush currents, ensuring that the remote command is executed successfully every time.
International standards such as IEC 62055-31 define the rigorous testing phases for relays used in prepayment meters.
UC2 Requirement: The relay must withstand a short-circuit current of up to 3000A and continue to function correctly.
UC3 Requirement: The highest standard, requiring the relay to handle short-circuits of 6000A to 7000A without the contacts welding or the casing rupturing.
NCR's magnetic latching relays are engineered to meet and exceed these standards, providing peace of mind for meter manufacturers and utility providers alike.
Choosing between single and dual coil designs depends on the complexity of your control circuit:
Type | Operation Mechanism | Best For... |
|---|---|---|
Single Coil | Requires polarity reversal of the DC pulse to switch states. | Compact designs and simplified wiring. |
Dual Coil | Separate coils for 'Set' and 'Reset' functions. No polarity change needed. | Systems where the control circuit cannot easily reverse DC polarity. |
When selecting a relay for a 100A smart meter, engineers must evaluate more than just the current rating. Key factors include:
Contact Resistance: Should be <1mΩ to minimize heat generation during full load.
Pulse Width: Ensure your MCU can provide the required 50-100ms pulse for reliable latching.
Dielectric Strength: High insulation between the coil and contacts (e.g., 4kV) is vital for safety.
Mounting: PCB-mounted terminals must be robust enough to handle high torque during installation.

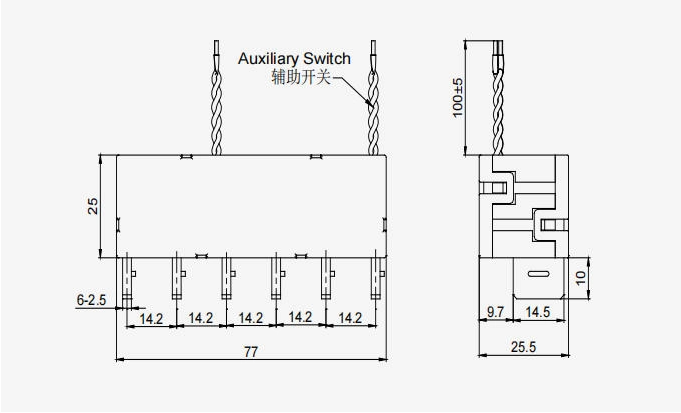

For high-power applications, the NRL715G series offers unparalleled durability.
To understand why latching relays are the "Gold Standard," we must compare them to conventional monostable relays:
Feature | Latching Relay (NCR) | Non-Latching Relay |
|---|---|---|
Power consumption | Zero (except during switching) | Continuous during ON state |
Heat production | Negligible | Significant (coil heating) |
State on power loss | Maintains last state | Returns to default position |
Design complexity | Medium (Permanent magnet) | Simple |
Application focus | Smart meters, Battery devices | General automation, Automotive |
Because it only consumes energy during the few milliseconds it takes to switch states. Once switched, it uses no power to stay in that position, unlike standard relays which require constant current to hold the armature.
Yes, NCR produces specialized relays like the NRL715G that are rated for 120A, specifically for heavy-duty residential and industrial smart meters.
Mechanical life can reach over 1,000,000 operations, while electrical life at full load (100A) typically exceeds 10,000 operations, compliant with utility standards.
