In the era of smart agriculture and industrial automation, the demand for precision, efficiency, and resource conservation has never been higher. Whether you are managing a large-scale commercial farm or a sophisticated HVAC system, the ability to control equipment with surgical timing is the difference between operational excellence and wasted resources. Among the various control components available, the Cycle Timer Relay (and its broader category, the Time Delay Relay) stands out as a fundamental yet versatile solution for automating repetitive tasks.
This comprehensive guide explores how integrating a Repeat Cycle Timer within an Automatic Irrigation System and greenhouse ventilation setup can drastically improve performance, reduce energy costs, and ensure optimal environmental conditions.
Before diving into specific applications, it is essential to understand the technical foundation of these devices. A Cycle Timer Relay is a specialized type of Time Delay Relay designed to turn a load ON and OFF at regular, repeated intervals. Unlike a standard "one-shot" timer that triggers once and stops, a Repeat Cycle Timer continues its loop as long as power is applied to the coil.
A Time Delay Relay is an electromechanical or solid-state device that opens or closes its contacts after a preset time interval. In industrial and agricultural control panels, these components are often mounted using a DIN Rail Timer Switch format. For those looking for a specific hardware solution, exploring professional time relays is the first step in building a reliable control circuit. This standardized mounting allows for easy integration into existing electrical enclosures, ensuring that the control system remains organized and easy to maintain.
Most high-quality cycle timers, such as those manufactured by NCR (Anxun), offer two primary modes:
Symmetrical Cycling: The "ON" time and "OFF" time are identical. For example, a fan runs for 10 minutes and stays off for 10 minutes.
Asymmetrical Cycling: The "ON" and "OFF" times can be set independently. This is critical for an Automatic Irrigation System, where you might need a water pump to run for 5 minutes but remain off for 2 hours.

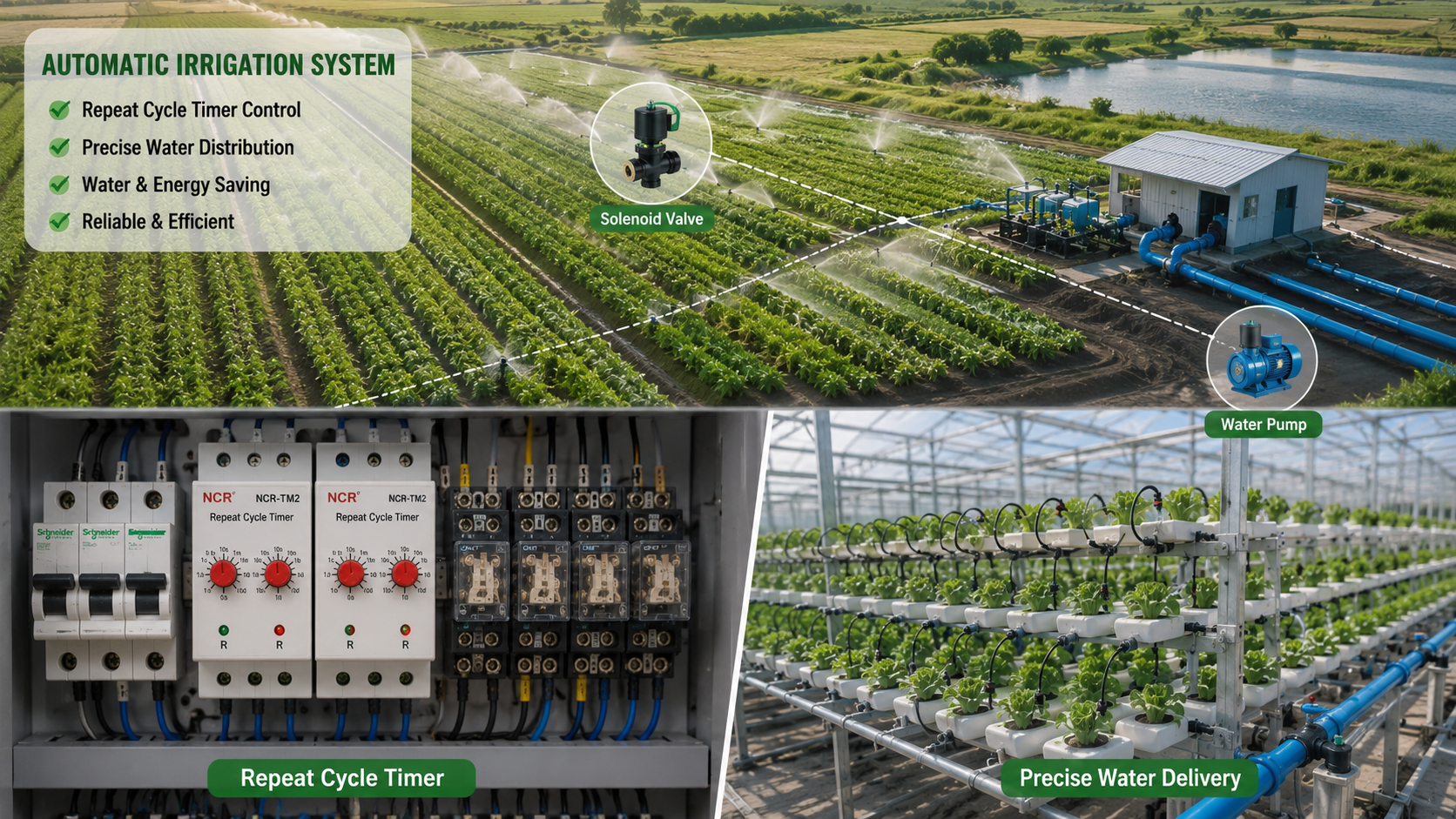

Water management is perhaps the most significant challenge in modern farming. Over-watering leads to root rot and wasted resources, while under-watering stunts growth. An Automatic Irrigation System powered by a Cycle Timer Relay provides a "set-and-forget" solution that ensures plants receive the exact amount of hydration they need.
In drip irrigation or hydroponic setups, water must be delivered in small, frequent bursts. Using a Repeat Cycle Timer, engineers can program the system to activate the solenoid valves for precise durations. Because the Cycle Timer Relay handles the repetition, there is no need for a complex PLC (Programmable Logic Controller) for simple timing tasks, making the system more cost-effective and less prone to software glitches.
Water pumps are the heart of any Automatic Irrigation System. Continuous operation can lead to overheating and premature motor failure. By using a Time Delay Relay to introduce "rest periods," the pump has time to cool down. Furthermore, a DIN Rail Timer Switch can be integrated with sensors to ensure that if a water source runs dry, the relay cuts power, preventing the pump from running dry and burning out.
In hydroponic vertical farming, plant roots are often suspended in air or a neutral medium. They require a "Flood and Drain" cycle. An asymmetrical Repeat Cycle Timer is perfect here: it can be set to "Flood" for 15 minutes (ON) and "Drain" for 45 minutes (OFF), maintaining the perfect balance of moisture and oxygen for the root system.

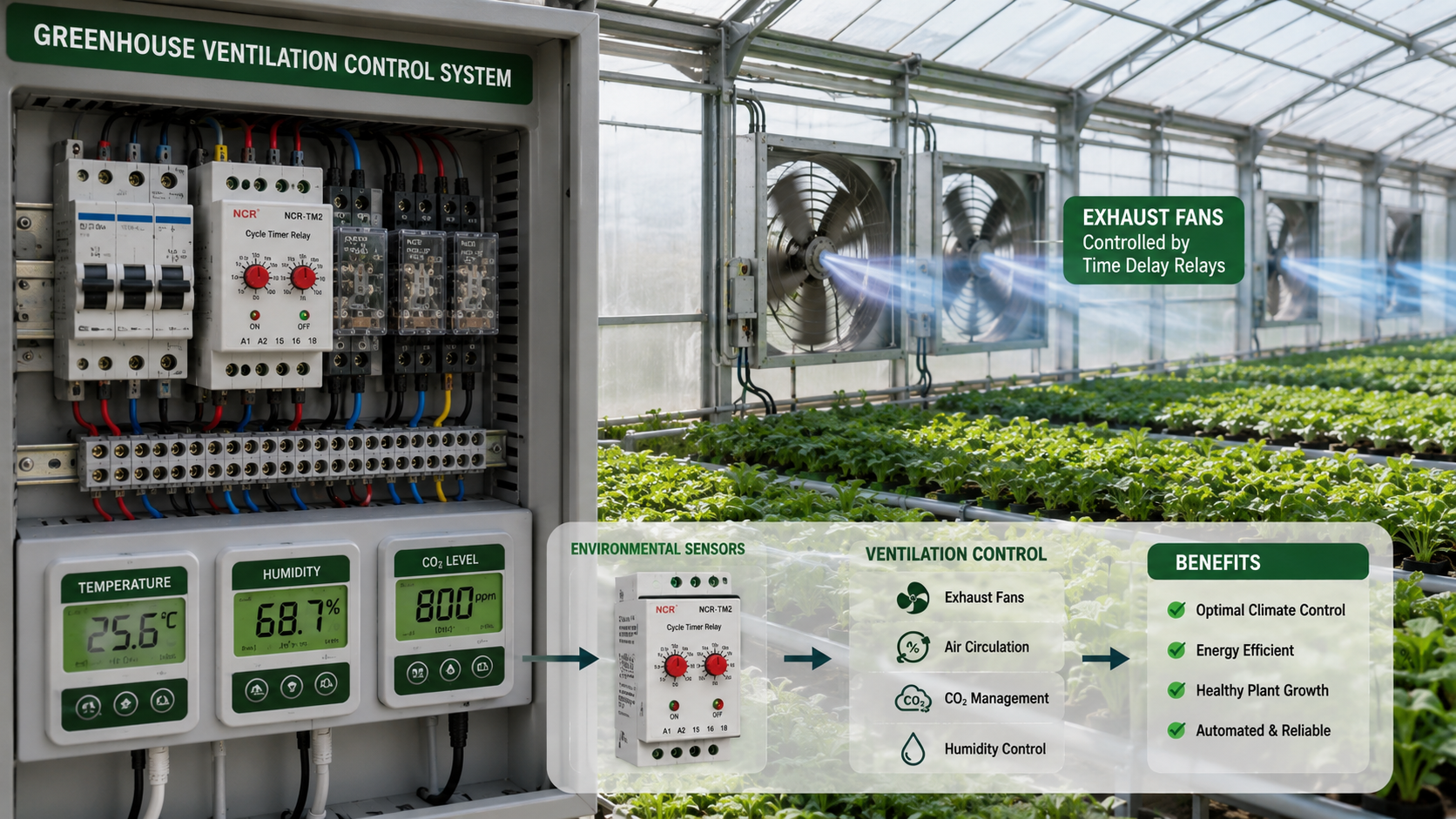

Greenhouses are closed ecosystems where temperature, humidity, and CO2 levels must be tightly regulated. Natural ventilation is often insufficient, requiring powered fans and shutters. This is where the Cycle Timer Relay becomes an indispensable tool for climate optimization.
Stagnant air in a greenhouse promotes the growth of mold and fungi. However, running large circulation fans 24/7 is energy-intensive and can cause excessive drying of leaves. By installing a DIN Rail Timer Switch configured as a Repeat Cycle Timer, growers can ensure that air is moved for, say, 10 minutes every hour. This periodic "purging" of air maintains a fresh environment while slashing electricity bills.
In the heat of the day, humidity levels can spike. A Time Delay Relay can be linked to an exhaust fan. When humidity reaches a certain threshold, the timer ensures the fan runs long enough to clear the moist air but turns off once the environment has stabilized. Understanding when an off-delay relay provides the time delay can be particularly useful here to keep fans running for a set period even after the sensor signal has stopped.

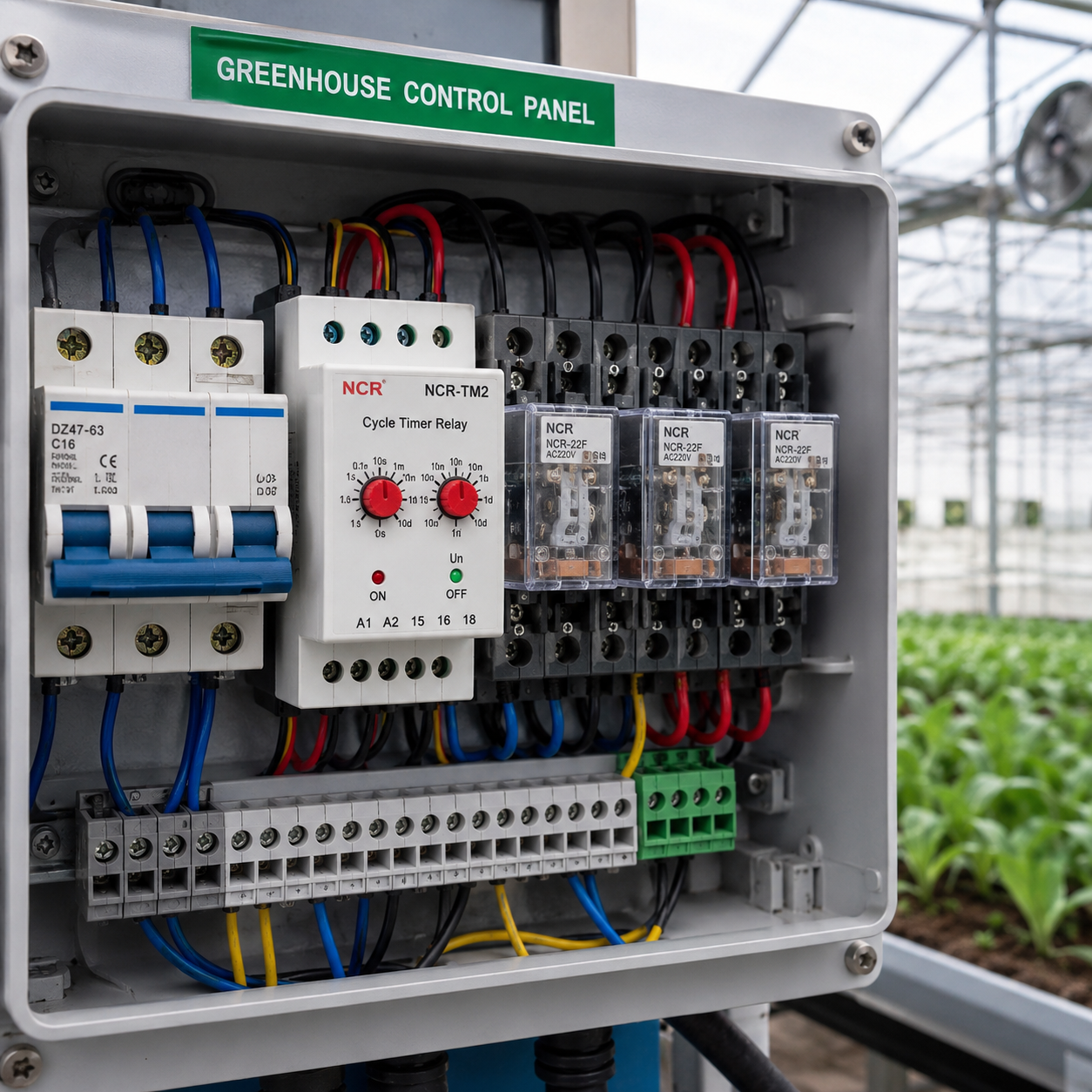

For industrial applications, the physical form factor of the timing device is just as important as its internal logic. The DIN Rail Timer Switch is the industry standard for several reasons:
Space Efficiency: DIN rail mounting allows for high-density component placement within a control box.
Ease of Maintenance: If a Cycle Timer Relay needs to be replaced or upgraded, it can be snapped off the rail and replaced in seconds without rewiring the entire panel.
Durability: Industrial-grade Time Delay Relays designed for DIN rail mounting are usually built to withstand the vibrations and temperature fluctuations common in pump houses and greenhouse environments.
When selecting a Cycle Timer Relay for your project, consider the following technical specifications to ensure long-term reliability:
Ensure the relay supports the specific intervals required for your Automatic Irrigation System. Some timers offer ranges from 0.1 seconds to 100 days. For most agricultural uses, a range that covers minutes to hours is ideal.
What are you switching? A small solenoid valve requires very little current, but a high-horsepower irrigation pump will require a Time Delay Relay with a high contact rating (e.g., 16A) or the use of an external contactor.
Since irrigation and greenhouse environments are often humid, look for relays with high-quality contact materials (such as silver alloy) that resist oxidation and arcing.
Ensure the DIN Rail Timer Switch matches your power supply (e.g., 12V DC for solar-powered setups, or 110V/220V AC for standard grid-tied systems).
Investing in a high-quality Cycle Timer Relay from a reputable manufacturer like NCR (Anxun) offers a rapid Return on Investment (ROI) through three main channels:
Reduced Labor Costs: Automation eliminates the need for manual switching of pumps and fans.
Resource Conservation: An optimized Automatic Irrigation System can reduce water usage by up to 30-50% compared to manual or non-timed watering.
Energy Savings: By preventing fans and pumps from running unnecessarily, the Repeat Cycle Timer significantly lowers monthly utility costs.
To ensure the safety and longevity of your Time Delay Relay, follow professional installation guidelines. If you are new to the electrical setup, referring to a step-by-step guide on how to connect a timer relay can prevent common wiring errors.
Use a Proper Enclosure: Always house your DIN Rail Timer Switch in an IP65-rated waterproof enclosure, especially in irrigation areas where water spray is common.
Incorporate Circuit Protection: Use a circuit breaker or fuse before the timer to protect the sensitive electronic components from power surges.
Label Your Wires: In complex systems with multiple Cycle Timer Relays, clear labeling of "ON" and "OFF" trigger wires will save hours of troubleshooting later.
As we move toward 2026 and beyond, the integration of simple, reliable components like the Cycle Timer Relay remains the backbone of successful automation. While IoT and AI-driven systems are gaining traction, the localized reliability of a Time Delay Relay or a Repeat Cycle Timer ensures that even if the internet goes down, your Automatic Irrigation System keeps running and your greenhouse stays ventilated.
By choosing a high-quality DIN Rail Timer Switch, you are investing in the stability and productivity of your operation. Whether it is managing the delicate balance of a hydroponic farm or the heavy-duty demands of industrial HVAC, the right timing solution makes all the difference.
A standard relay simply acts as a switch controlled by an electrical signal. A Cycle Timer Relay includes an internal timing circuit that allows it to open and close its contacts automatically at preset intervals (Repeat Cycle) without needing a continuous external trigger for every flip.
Directly, no. Most Time Delay Relays are designed for control signals or small loads (typically up to 16A). For high-power 3-phase pumps used in an Automatic Irrigation System, the timer should be used to trigger the coil of a larger AC contactor or a specialized electromechanical relay designed for heavy industrial loads.
You should look for an "Asymmetrical" Cycle Timer Relay. These devices feature two separate adjustment knobs or digital settings—one for the "T1" (ON time) and one for "T2" (OFF time)—allowing for maximum flexibility in applications like irrigation.
While the internal components are high-quality, the housing of a standard DIN Rail Timer Switch is usually IP20 rated. For greenhouse use, it is mandatory to install the timer inside a sealed, waterproof electrical distribution box to prevent moisture from causing short circuits.
