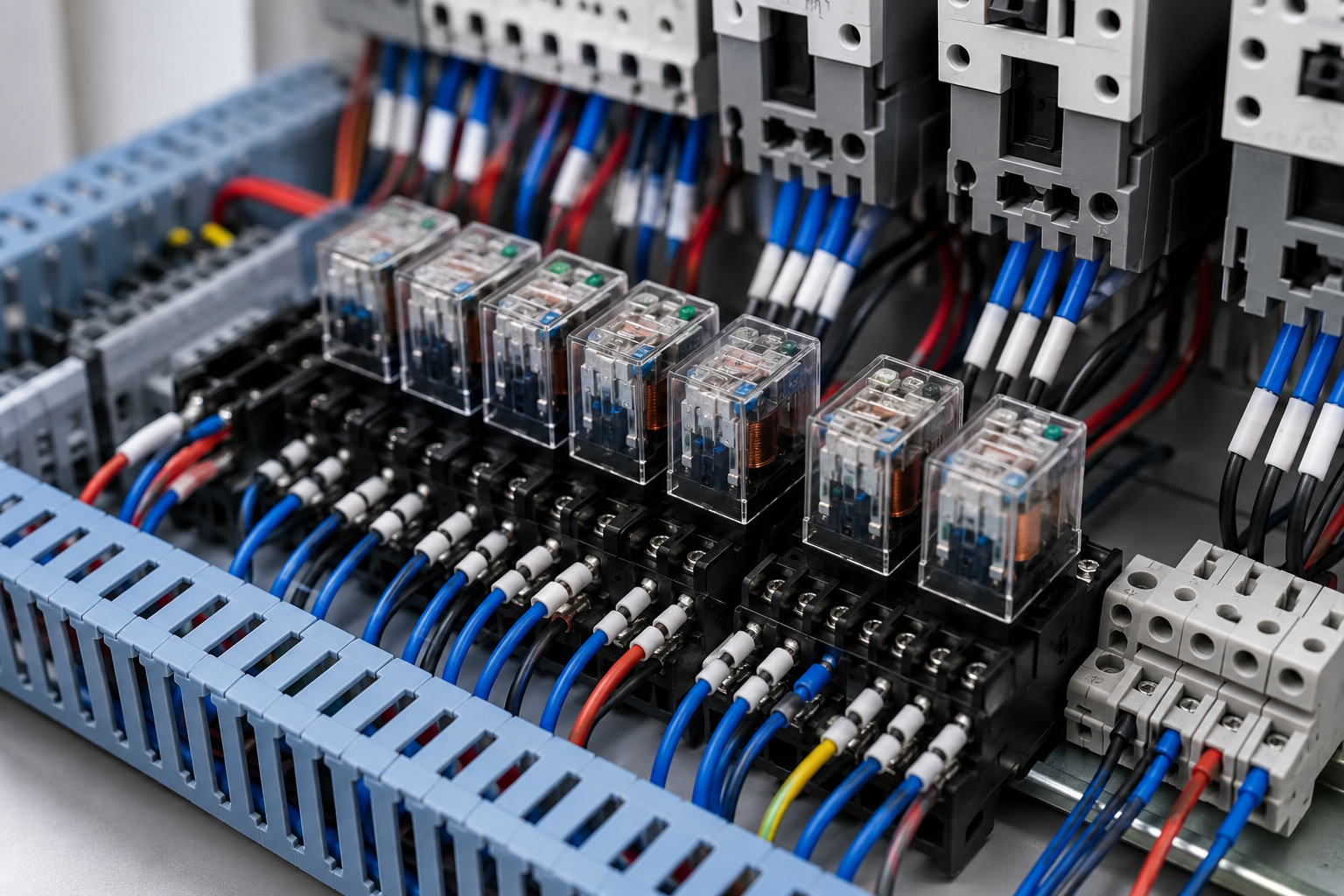

Common Mistakes in Relay Control Circuit Design and How to Avoid Them

You often encounter mistakes in relay control circuit design, such as incorrect relay settings, unnecessary feeder trips, equipment damage, poor relay coordination, and complete loss of selectivity. Using a quality relay from NCR reduces errors and ensures reliable relay isolation. Evaluate your relay, circuit, and control circuit choices to improve performance.

Relay Selection Mistakes

Selecting the right relay for your relay control circuit is essential for reliable operation and safety. Many mistakes occur during this stage, often leading to circuit failures or even equipment damage. You can avoid these errors by understanding the most common pitfalls and how to address them.

Wrong Voltage or Current Rating

You must always match the relay’s voltage and current ratings to your application. Using a relay with the wrong rating can cause overheating, which damages the internal components. Excessive current may heat up the contacts and coil, while voltage spikes can wear or weld the contacts together. Coil burnout is another risk, as overvoltage leads to overheating and undervoltage causes erratic operation. These failures compromise circuit performance and create safety hazards in your design.

Ignoring Contact Type (NO/NC)

You should pay close attention to the contact type when choosing a relay. Normally Open (NO) and Normally Closed (NC) contacts serve different functions in a control circuit. Selecting the wrong type can disrupt the intended operation. For example, using NO contacts where NC contacts are required may prevent the circuit from activating at the right time. Always review your circuit diagram and application needs before making a selection.

Choosing Quality Relays

You improve reliability and safety by selecting relays from reputable brands like NCR. High-quality relays ensure consistent performance and longer service life. The table below highlights frequent errors made during relay selection in industrial and commercial applications:

By understanding these mistakes, you can make better choices and ensure your relay control circuit operates safely and efficiently.

Wiring Errors in Relay Control Circuits

Reversing Terminals 30 and 87

You often see mistakes when connecting relay terminals, especially with terminals 30 and 87. These terminals play a critical role in the relay control circuit. Terminal 30 usually connects to the power source, while terminal 87 links to the load. If you reverse these connections, you risk causing operational errors or even damaging the relay. Always check wiring diagrams before making connections. This step helps you avoid common wiring mistakes and ensures the relay functions as intended.

How to Wire a Control Relay Correctly

You must understand how to wire a control relay to prevent failures in your design. Start by reviewing the manufacturer's instructions for your relay. Use wiring diagrams to guide each connection. Here are the recommended steps for how to wire a control relay:

1. Review the manufacturer's instructions before installation.

2. Inspect all wiring connections and test the circuit after wiring.

3. Avoid common wiring mistakes by checking pin assignments and using the correct voltage relay.

4. Connect ground wires to clean surfaces for reliable operation.

5. Select the correct wire gauge based on current needs.

6. Use a multimeter to test the relay after installation.

Following these steps reduces mistakes and improves the reliability of your relay control circuit.

Using Proper Wire Size

You must choose the right wire size for each relay connection. Undersized wires can overheat and cause failures in the control circuit. Always refer to wiring diagrams and current ratings when selecting wire gauge. Proper grounding also prevents intermittent operation and protects your relay from damage. By focusing on these details, you avoid common wiring mistakes and ensure safe, efficient wiring in every relay control circuit.

Protection Component Mistakes

Omitting Fuses in Design

You must always include fuses in your relay control circuit. Fuses protect your relay and other components from overcurrent events. If you skip fuses, you risk permanent damage to the relay and connected devices. A fuse acts as a safety barrier. It interrupts the circuit when current exceeds safe limits. You should select a fuse with the correct rating for your application. This simple step prevents costly repairs and downtime.

Missing Flyback Diodes

You need to install flyback diodes across relay coils, especially in DC circuits. When you turn off the relay, the coil releases stored energy as a voltage spike. This spike can damage sensitive electronics and reduce relay life. A flyback diode provides a safe path for this energy. It protects your circuit from unexpected failures. Always check your wiring diagram to confirm the diode is present and correctly oriented.

Skipping Snubber Circuits

You should not ignore snubber circuits in your design. Snubber circuits play a critical role in relay isolation and protection. They prevent voltage spikes caused by inductive kickback when you de-energize the relay. If you skip snubber circuits, you may face several problems:

• High-voltage transients can arc across switches.

• Driving transistors may fail due to excessive voltage.

• Electrical noise can enter your system and disrupt operation.

You improve relay isolation and extend component life by adding snubber circuits. Always evaluate your relay application to determine if a snubber is necessary.

Isolation and Grounding Issues

Poor Isolation in Relay Circuits

You must prioritize isolation in every relay control circuit. Isolation prevents unwanted electrical interaction between the relay and other circuit components. If you neglect isolation, you risk exposing sensitive devices to voltage spikes or electrical noise. You should use relays with proper isolation ratings, especially when switching high-voltage loads. Isolation barriers protect both the relay and the control side from faults. Always review your design to confirm that isolation meets the requirements for your application.

Risks of Bad Grounding

Bad grounding creates serious hazards in relay circuits. You may encounter electric shock risks if current escapes its intended path and flows to the ground. Mixing neutral and ground connections often worsens grounding problems. You should avoid this mistake in your wiring. In wet areas, you can use ground fault circuit interrupter (GFCI) outlets to prevent ground faults. Poor grounding also leads to erratic relay operation and unreliable circuit performance. You must inspect all ground connections and ensure they follow industry standards.

• Electric shock risks increase with ground faults.

• Mixing neutral and ground connections causes unpredictable circuit behavior.

• GFCI outlets help prevent ground faults in wet environments.

Best Practices for Safe Design

You improve safety and reliability by following best practices in relay control circuit design. Always use relays with adequate isolation. Inspect wiring for correct ground connections. Install GFCI outlets where moisture may affect the circuit. You should test the relay and circuit after installation to verify proper operation. Regular maintenance keeps your relay system safe and efficient.

Tip: Document your wiring and grounding procedures. This helps you troubleshoot issues quickly and ensures compliance with safety standards.

Power Supply Oversights

Underestimating Coil Current

You must never overlook the current requirements of the relay coil in your relay control circuit. If you underestimate the relay coil current, you risk unstable operation and unexplained resets. The relay coil draws a specific amount of current to activate the contacts. If your power supply cannot deliver enough current, the relay coil may chatter or fail to pull in. This leads to communication dropouts, nuisance alarms, or corrupted readings. You may find yourself replacing boards or power supplies prematurely, only to discover the real issue was insufficient relay coil current. Always check the relay coil specifications and ensure your design provides adequate current.

• Control instability can result from an underpowered relay coil.

• Intermittent diagnostics often trace back to transient relay coil issues.

• False root causes waste time and resources.

Not Accounting for Voltage Drops

You must consider voltage drops in your relay control circuit. Voltage drops across long wiring runs or undersized wires can prevent the relay coil from receiving the correct voltage. This causes the relay coil to operate unreliably or not at all. The table below shows how voltage drops impact relay and circuit reliability:

You should always measure voltage at the relay coil terminals during commissioning.

Ensuring Reliable Power

You ensure reliable relay coil operation by selecting a robust power supply and following best practices. The table below outlines effective methods for maintaining power integrity in your relay control circuit:

Tip: Always verify that your power supply can handle the total relay coil load, especially in multi-relay designs. This step prevents unexpected downtime and extends the life of your relay coil and circuit.

Environmental and Placement Mistakes

Ignoring Temperature and Humidity

You must consider environmental factors when working with any relay control circuit. Temperature and humidity can have a direct impact on relay performance and lifespan. High heat damages insulation materials, which increases electrical stress and leads to early equipment failure. Humidity causes corrosion, reduces insulation resistance, and creates leakage currents. These issues lower reliability and shorten the lifespan of your relay. Always check the specifications for your relay and ensure the environment matches the recommended operating conditions.

• Heat can damage insulation, causing electrical stress.

• Humidity leads to corrosion and leakage currents, reducing reliability.

Poor Relay Placement

You should pay close attention to relay placement within your circuit or control panel. Poor placement can cause several problems. Misplaced relays or sensors may not detect faults, which increases the risk of electrical incidents. If you position an optical sensor incorrectly, it might not protect critical areas because arc light cannot pass through barriers like steel or cable bundles. Sometimes, a relay that works during testing fails in real service due to incorrect voltage or worn components. Proper placement ensures your relay operates as intended and protects your circuit.

• Misplaced relays can miss faults, raising safety risks.

• Incorrect sensor placement leaves areas unprotected.

• Relays may fail in service if not placed or maintained correctly.

Designing for the Environment

You improve the reliability of your relay control circuit by designing for the actual environment. Choose relays rated for the expected temperature and humidity. Use enclosures that shield your relay from dust, moisture, and heat. Plan wiring routes to avoid exposure to harsh conditions. Regularly inspect your relay and circuit for signs of wear or environmental damage.

Tip: Always match your relay and enclosure to the specific needs of your application. This step prevents unexpected failures and extends the life of your design.

Testing and Maintenance in Relay Design

Skipping Thorough Testing

You must never overlook thorough testing in your relay control circuit. Testing ensures that every relay operates as intended and that the circuit responds correctly to faults. If you skip this step, you expose your design to several risks:

• Potential misoperations of protective devices

• Equipment damage

• Extended outages

• Production losses

• Increased maintenance costs

• Serious safety hazards

Proper commissioning and testing are essential to ensure that the system operates reliably and safely.

Testing verifies that your wiring and relay configuration meet the requirements of your application. You catch errors early and prevent costly failures.

Neglecting Regular Maintenance

You need to schedule regular maintenance for your relay control circuit. Neglecting maintenance leads to failures in auxiliary components, which are crucial for reliable relay operation. For example, a dead battery in the control cabinet can cause a recloser to be inoperable. This simple oversight compromises the reliability of your circuit and puts your entire control system at risk. Maintenance keeps your relay and wiring in optimal condition and prevents unexpected downtime.

Steps for Reliable Operation

You improve the reliability of your relay control circuit by following a few key steps. Inspect all relay connections and wiring regularly. Clean contacts and check for signs of wear or corrosion. Effective heat management is crucial for the reliability of relay control circuits. Relays generate heat during operation, and without proper heat management, you risk overheating, which can lead to equipment failure and reduced service life. Document your maintenance procedures and schedule routine checks to ensure your design continues to perform safely.

You avoid mistakes in relay control circuit design by following clear guidelines and using high-quality relay components. Review circuit diagrams for all applications and check wiring for accuracy. Apply guidelines for relay selection and circuit diagnosis.

If you are looking for dependable relay solutions, NCR provides a wide selection of industrial relays, including electromagnetic relays, solid state relays, time relays, relay sockets, and relay modules. Backed by strict quality control and extensive industry experience, our products help improve the reliability and efficiency of industrial control circuits across manufacturing, energy, transportation, and automation applications.

Use NCR relays for reliable control and efficient fault diagnosis in diverse applications. Share your circuit diagrams and diagnosis experiences in the comments.

Regular maintenance and circuit diagram review improve relay performance in all applications.

FAQ

What is the most important factor when choosing a relay?

You must match the relay’s voltage and current ratings to your application. Quality relays, like NCR, ensure reliable performance and safety.

How often should you test and maintain relay control circuits?

You should test and inspect relay circuits every six months. Regular maintenance prevents unexpected failures and extends service life.

Why do you need a flyback diode in DC relay circuits?

A flyback diode protects sensitive electronics from voltage spikes when you turn off the relay coil. It prevents circuit damage and improves reliability.
