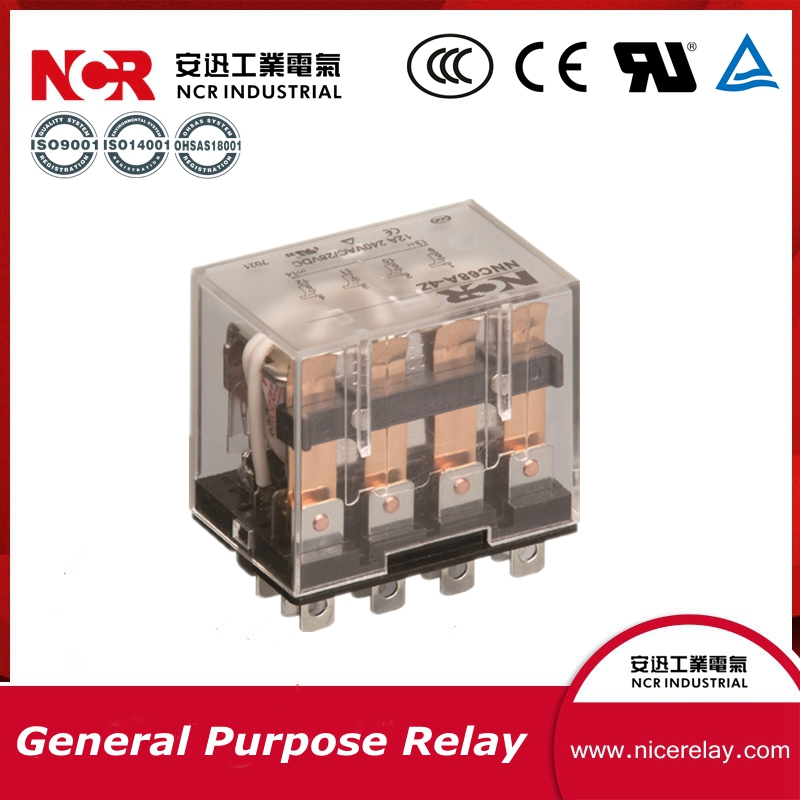

What Is a General Purpose Relay and How Does It Work in 2026

A general purpose relay is an electrical switch that uses an electromagnet to control one or more circuits. This device allows a small electrical signal to operate a larger load safely. Engineers and technicians rely on a general-purpose relay to automate processes and protect equipment. Relays play a critical role in modern electrical systems by enabling efficient control and reliable operation.

Key Takeaways

· A general purpose relay acts as an electrical switch, allowing small signals to control larger loads safely.

· These relays provide electrical isolation, protecting sensitive components from high voltages and currents.

· General purpose relays are versatile and used in various applications, including industrial automation and smart home systems.

· Choosing the right relay involves considering load requirements, environmental conditions, and performance specifications.

· Regular maintenance and proper installation can extend the lifespan of relays and prevent failures.

General Purpose Relay Basics

What Is a General Purpose Relay

A general purpose relay acts as an electrical switch that uses an electromagnet to control a circuit. This device allows a small signal to operate larger electrical loads. The basic function of a relay centers on its ability to isolate and protect sensitive components while managing the flow of electricity. Engineers use a general-purpose relay in control circuits to automate processes and ensure safety.

The main role of a general purpose relay in control circuits includes several key functions. The table below outlines these primary functions and their descriptions:

Function	Description
Electrical Isolation	Prevents dangerous voltage levels from affecting operators or sensitive components.
Protection of Sensitive Components	Shields delicate equipment from high currents or voltages.
Implementation of Control Logic	Facilitates the execution of control logic within the circuit.
Amplification of Signals	Enhances signals to drive larger loads effectively.

A general-purpose relay uses contacts to open or close circuits. These contacts respond to the movement of the armature, which the electromagnet activates. This process forms the basic function of a relay and ensures reliable operation in many applications.

Core Function and Features

The versatility of a general purpose relay sets it apart from specialized relays. The table below compares general purpose relays with specialized relays in terms of application range and core features:

Feature	General Purpose Relays	Specialized Relays
Application Range	Wide range, from home appliances to industrial	Narrow, specific functions
Electrical Isolation	Yes	Varies
Signal Amplification	Yes	Limited or none
Compatibility with Control Signals	High	Limited to specific types
Examples of Use	Thermostats, motor control, lighting systems	Specific applications only

General purpose relays offer flexibility and compatibility with many control signals. They work in thermostats, motor control, and lighting systems. Specialized relays serve narrow functions and may not provide the same level of versatility.

Modern general-purpose relay designs include several common features. These features improve performance, safety, and reliability. The list below highlights the most common features found in general purpose relays manufactured in 2026:

1. High-quality Construction and Durability

2. Versatility and Compatibility with Various Systems

3. Enhanced Performance and Reliability

4. Energy Efficiency Features

5. Enhanced Safety Measures

6. Predictive Maintenance

General purpose relays also differ from other relay types in their core function. The table below shows the main differences:

Relay Type	Core Functionality	Durability	Expandability
General Purpose Relay	Operates as an electromechanical switch for various applications.	Economical, easy to replace	Limited
Machine Control Relay	Heavy-duty relay for controlling industrial components with added accessories.	More durable	High (with accessories)
Reed Relay	Compact, fast-operating switch with hermetically sealed contacts for reliability.	High life expectancy	N/A

A general-purpose relay provides economical operation and easy replacement. Machine control relays offer more durability and expandability. Reed relays deliver fast switching and long life.

The lifespan of a general purpose relay in industrial applications can reach impressive numbers. The electrical lifespan typically exceeds 100,000 operations. The mechanical lifespan often reaches one million operations or more, with some relays achieving 10 or even 100 million operations.

General purpose relays perform reliably under many conditions. High humidity can cause corrosion of contacts and metal components. Moisture may lead to condensation inside the relay, which can result in short circuits. Manufacturers use sealed enclosures in some relays to protect against humidity and ensure long-term performance.

A general-purpose relay remains a vital component in control circuits. Its basic function of a relay, combined with versatility and durability, makes it suitable for a wide range of applications.

How a Relay Works

Main Components

A general purpose relay contains several essential parts that work together to control a circuit. Each component plays a specific role in the operation of this electromechanical switch. The main components include:

· Electromagnet: This part generates a magnetic field when current flows through its coil. The electromagnet is the driving force behind the movement inside the relay.

· Movable Armature: The armature responds to the magnetic field. It moves to open or close the contacts, which changes the state of the electrical switch.

· Contacts: These metal pieces control the flow of electricity. When the contacts close, current passes through the relay. When they open, the circuit breaks and current stops.

The table below shows the typical materials used for each component in a general purpose relay:

Component	Materials
Coil	Copper wound, foil, bifilar coils
Armature	Soft iron, hard iron, balanced armature
Contacts	Silver, Gold, Silver Cadmium Oxide

Engineers select these materials for their durability and conductivity. Copper coils provide efficient magnetic fields. Silver and gold contacts resist corrosion and ensure reliable operation. Iron armatures respond quickly to magnetic forces.

Working Principle

The working principle of a universal relay involves a series of steps that allow it to act as an electrical switch in a control circuit. The process starts when an electrical current enters the coil. The coil creates a magnetic field, which pulls the armature toward the contacts. This movement closes the contacts and allows current to flow through the relay.

The step-by-step operation of a general purpose relay follows this sequence:

1. An electrical current is applied to the electromagnetic coil.

2. The coil generates a magnetic field that attracts the moving armature.

3. The armature moves and closes the contacts, allowing current to flow through the relay.

4. When the current to the coil is removed, the magnetic field dissipates.

5. The spring-loaded armature returns to its original position, opening the contacts and interrupting the current.

This process enables the relay to control a circuit with precision and reliability. The relay acts as an electromechanical switch, responding quickly to changes in the control circuit.

The table below compares the working principle of a general purpose relay with a solid-state relay:

Relay Type	Working Principle
Electromechanical Relay	Utilizes a coil to create a magnetic field that moves mechanical contacts to open/close a circuit.
Solid-State Relay	Employs semiconductor devices (like thyristors or transistors) to switch electrical current without mechanical movement.

A general purpose relay uses mechanical movement to operate contacts, while a solid-state relay relies on electronic components. Both types serve as electrical switches, but their internal mechanisms differ.

Tip: Engineers often choose a general purpose relay for applications that require physical isolation and reliable switching. The mechanical contacts provide clear separation between control and load circuits.

A general purpose relay remains a key component in many control circuits. Its simple design and effective operation make it a popular choice for automating electrical systems.

Types of General-Purpose Relays

Common Relay Types

Engineers and technicians can choose from several general purpose relay types to meet different needs. Each type offers unique features and benefits for control circuits. The table below shows the most prevalent relay types available in the market in 2026:

Relay Type	Description
General Purpose Relay	Commonly used for various applications
Power Relay	Handles high power loads
Contactor	Used for switching electrical circuits
Time-Delay Relay	Delays the operation of a circuit
Others	Includes various specialized relays

Relay technology continues to evolve. In 2026, solid-state relays gain popularity because they improve reliability and energy efficiency. Miniaturization and integration with IoT systems also influence the market. Technicians often use electromechanical relays, solid-state relays, hybrid relays, and reed relays in modern electrical systems.

Magnetic latching relays represent a significant innovation. Unlike traditional electromagnetic relays, magnetic latching relays do not require continuous power to maintain their state. This feature reduces energy consumption and supports energy-saving goals. NCR’s Magnetic Latching Relay stands out as a modern solution for applications that demand efficiency and reliability.

Note: Magnetic latching relays help conserve energy by holding their position without constant power. This advantage makes them ideal for smart metering, home automation, and automotive systems.

Configurations and Variations

General purpose relays come in different configurations to suit various control requirements. The arrangement of contacts and mounting style determines how the relay operates in a circuit. The table below outlines key contact types and their applications:

Contact Type	Description	Applications
Normally Open (NO)	Contacts remain open until the relay is energized. Ideal for turning on devices.	Controlling motors, lights, or process equipment.
Normally Closed (NC)	Contacts maintain a closed circuit until energized. Crucial for safety applications.	Emergency stop circuits, fault monitoring systems.
SPDT	Combines NO and NC contacts. Allows control of two circuits with one relay.	Switching power sources, reversing motor directions.
DPDT	Provides two sets of SPDT contacts for complex control schemes.	Switching multiple circuits simultaneously.

Mounting styles also vary. Panel mount, DIN rail mount, and plug-in types offer flexibility for installation. Engineers select the best configuration based on the application and environment.

General purpose relay types provide versatility for many electrical switch applications. The use of an electromagnet and reliable contacts ensures safe and efficient operation. NCR’s Magnetic Latching Relay demonstrates how modern relays combine innovation with proven technology to meet the demands of 2026.

Applications and Selection

Where General Purpose Relays Are Used

General purpose relays serve many industries and systems. The table below highlights the top five application areas in 2026:

Application Area	Description
Industrial Automation	Increased automation in manufacturing processes drives demand for relays.
Automotive Applications	Growth in electric vehicles necessitates advanced relay systems for vehicle manufacturing and charging.
HVAC Systems	Smart control systems in heating, ventilation, and air conditioning require reliable relay solutions.
Smart Grid Technologies	The transition to renewable energy creates a need for advanced relay systems in power distribution.
Healthcare Facilities	Digital transformation in healthcare leads to increased demand for smart building and control systems.

Relays also play a key role in home appliances and smart metering. In smart metering and home automation, relays contribute to energy efficiency in several ways:

· Real-time power metering allows users to manage energy usage effectively.

· Relays enable precise control over electrical devices, optimizing energy consumption.

· Measurement-driven control helps turn off loads when power exceeds thresholds.

· Scheduling equipment based on usage patterns improves energy efficiency.

· Integration with HVAC and lighting systems supports energy optimization rules.

Choosing the Right Relay

Selecting the right relay depends on several criteria. For automotive applications, engineers consider:

· Electrical load requirements

· Relay types and terminal compatibility

· Environmental conditions

· Mounting needs

· Performance specifications

· Reliability and availability

NCR’s Magnetic Latching Relay stands out in industrial settings. This relay maintains its state without continuous power, which saves energy and ensures reliability during power outages. Its fast switching speed and reduced maintenance needs make it a preferred choice for critical applications.

Maintenance practices help extend relay life and prevent failures. The table below lists recommended precautions:

Precaution	Description
Do not touch terminals while powered	Electric shock may occur.
Do not exceed contact ratings	May lead to insulation failure and damage.
Avoid dropping or dismantling	Can reduce performance and cause damage.
Test under actual conditions	Confirm applicability before use.
Avoid overvoltage	Incorrect voltage can prevent proper function.
Avoid corrosive atmospheres	Can cause contact failure and corrosion.
Protect against vibration	Excessive vibration can lead to malfunction.
Avoid strong magnetic fields	Can cause malfunctioning and insulation failure.
Do not expose to water or chemicals	Can lead to rusting and burning.

Engineers often refer to a general purpose relay wiring diagram to ensure proper installation and operation. By following these guidelines and choosing reliable products like NCR’s Magnetic Latching Relay, users achieve efficient and dependable performance in modern electrical systems.

General purpose relays provide reliable switching for many electrical systems. Engineers select relays based on performance indicators such as speed, lifespan, and power consumption. The table below shows how relay types compare:

Type	Speed	Lifespan	Cost	Noise	Size	Power	Best Use
Electromechanical	Medium	High	Low	Medium	Medium	Medium	General control
Solid-State	Fast	Very High	High	Low	Small	Low	Automation

Industry experts predict strong growth in relay usage by 2030:

· Smart grid systems and electric vehicles drive demand.

· Solid-state relays improve energy efficiency.

· IoT integration enables remote monitoring.

· Mercury-free relays meet environmental standards.

Engineers should consider both traditional and innovative relay solutions for modern applications.

FAQ

What makes a relay "general purpose"?

A general purpose relay works in many applications. It handles different voltages and loads. Engineers use it for switching, control, and protection.

Tip: General purpose relays offer flexibility for home, industrial, and automotive systems.

How does a magnetic latching relay save energy?

A magnetic latching relay holds its position without continuous power. This feature reduces energy use.

Feature	Benefit
Latching action	Lower power draw
Fast switching	Efficient control

Where can NCR’s Magnetic Latching Relay be used?

NCR’s Magnetic Latching Relay fits smart meters, home automation, and automotive systems. It supports reliable switching and energy savings.

· Smart metering

· Home appliances

· Electric vehicles

How do engineers choose the right relay?

Engineers check load size, voltage, environment, and mounting style. They compare relay types for speed, lifespan, and reliability.

Note: NCR’s Magnetic Latching Relay offers high performance for demanding applications.
