Control panels commonly use DIN rail relay sockets, panel-mounted relay sockets, PCB relay sockets, plug-in relay sockets, and relay bases with different pin layouts such as 8-pin, 11-pin, and 14-pin designs. The right relay socket type depends on the relay model, mounting method, wiring style, rated current, panel space, and maintenance requirements.
In industrial automation and electrical control systems, a relay socket is not only a simple mounting accessory. It acts as the connection interface between the relay and the control circuit, helping technicians install, replace, test, and maintain relays more efficiently. For projects that require stable wiring and easy field maintenance, choosing the correct relay socket type can reduce downtime and improve the overall reliability of the control panel.

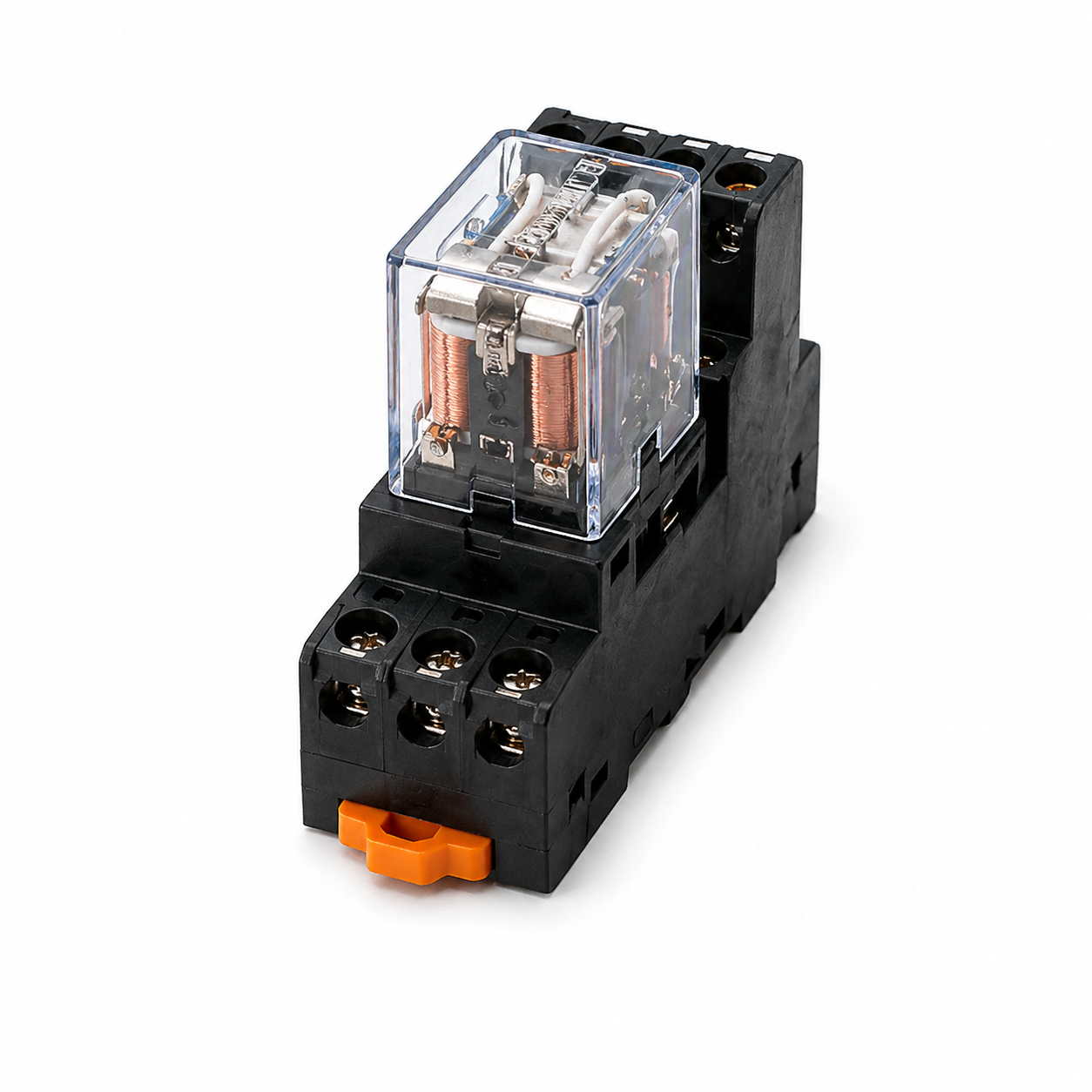

A relay socket is a base used to mount and connect a relay inside a control panel. Instead of wiring the relay directly into the circuit, the socket provides terminals for cable connection and a fixed position for the relay body. When the relay needs to be replaced, the technician can remove the relay from the socket without rewiring the entire circuit.
This is especially useful in automation cabinets, machine control systems, HVAC control panels, motor control panels, and distribution equipment. In these applications, relays may need to be inspected or replaced during routine maintenance. A suitable relay socket makes the process faster, cleaner, and safer.
For related products, you can view NCR relay socket solutions here: relay sockets for relays.
The type of relay socket affects installation method, wiring convenience, maintenance speed, and panel layout. A DIN rail socket may be ideal for a standard control cabinet, while a PCB relay socket may be more suitable for compact electronic equipment. A plug-in relay socket is often preferred when the relay must be replaced quickly, while a panel-mounted socket may be used when the relay needs stronger mechanical fixing.
If the socket type is not matched correctly with the relay and application, several problems may occur. The relay may not fit securely, the terminal connection may become loose, heat may build up around the contact area, or the wiring layout may become difficult to maintain. For B2B buyers and control panel builders, relay socket selection should therefore be treated as part of the whole electrical connection design.

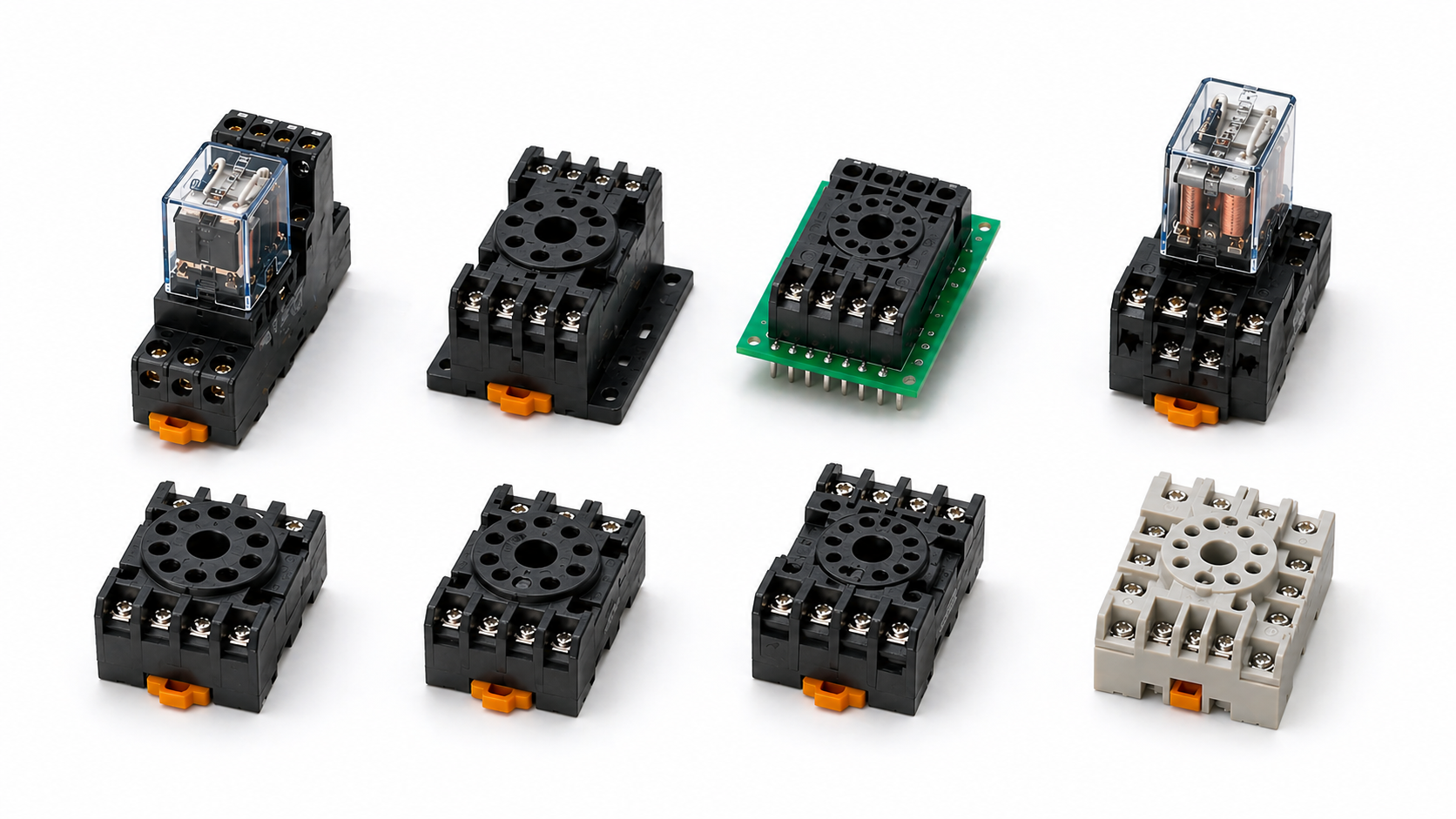

Relay sockets can be classified by installation method, wiring style, relay structure, and pin layout. In most control panel projects, the following types are commonly used.
Relay Socket Type | Typical Installation | Main Features | Best Used For |
|---|---|---|---|
DIN Rail Relay Socket | Mounted on standard DIN rail inside control cabinets | Easy installation, organized wiring, suitable for modular panel design | Industrial control panels, automation cabinets, PLC systems |
Panel-Mounted Relay Socket | Fixed directly to a panel or machine structure | Strong mechanical stability and flexible mounting position | Equipment control boxes, machines, custom electrical cabinets |
PCB Relay Socket | Installed on printed circuit boards | Compact structure and suitable for electronic control modules | Control boards, compact devices, electronic equipment |
Plug-In Relay Socket | Used with plug-in relays | Fast relay replacement without rewiring | Maintenance-friendly control systems and field service applications |
Interface Relay Socket | Used between PLC signals and field devices | Helps simplify signal connection and circuit isolation | PLC output control, automation signal interface, machine control |

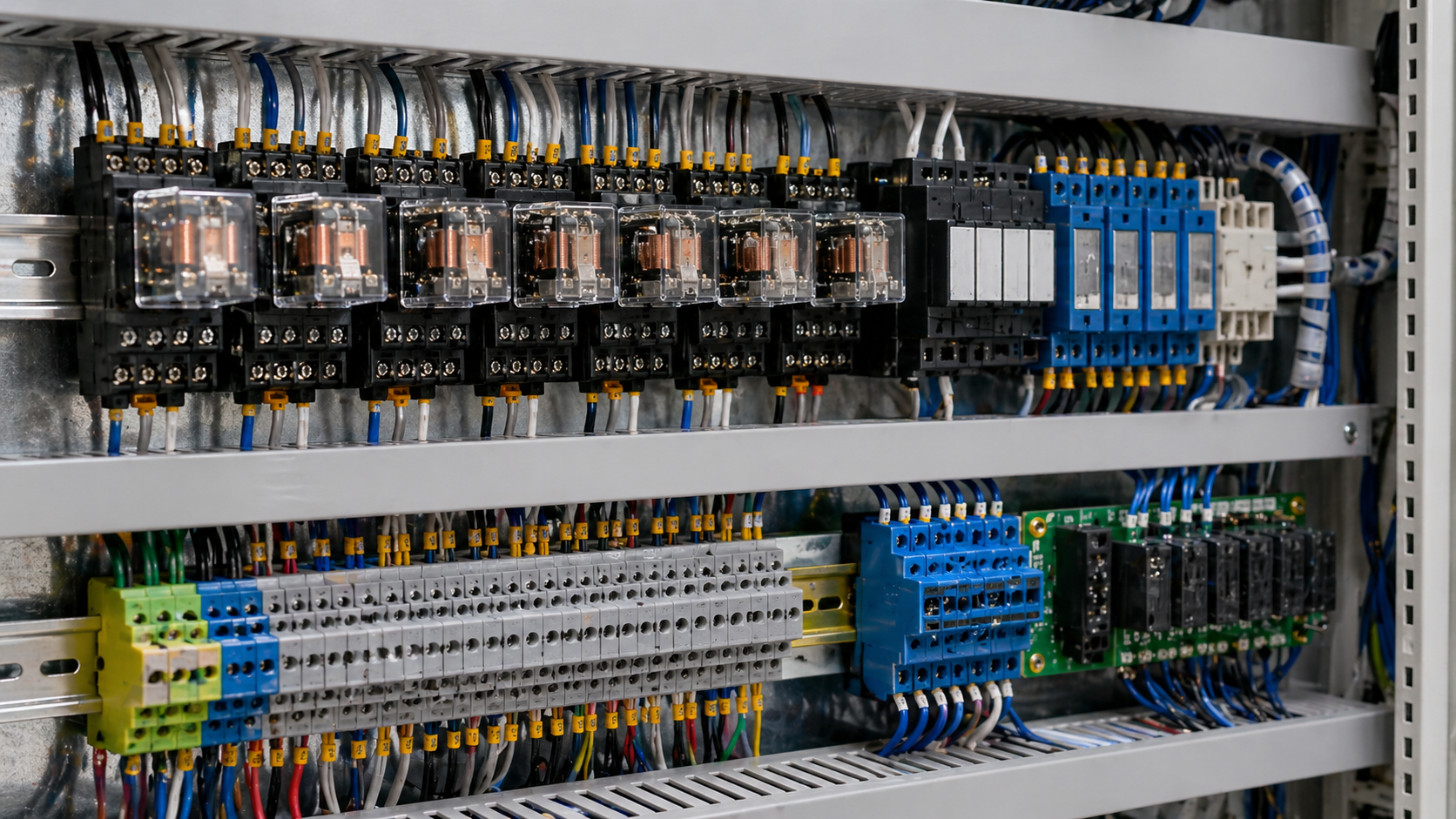

DIN rail relay sockets are widely used in industrial control panels because they match standard cabinet installation methods. They can be mounted neatly beside circuit breakers, terminal blocks, power supplies, and PLC modules. This makes wiring clearer and helps technicians identify each circuit during maintenance.
For projects with multiple relays in one panel, DIN rail sockets are often the most practical choice. They support organized installation and make it easier to expand or replace control circuits later.
Panel-mounted relay sockets are fixed directly to the control panel or equipment frame. They are useful when the relay needs a stable mounting position outside the standard DIN rail area. Some machines or custom electrical boxes may not have enough DIN rail space, so panel-mounted sockets provide more installation flexibility.
PCB relay sockets are used on printed circuit boards. They are common in electronic control modules, compact devices, and equipment where the relay must be integrated into a circuit board. Compared with DIN rail sockets, PCB relay sockets are smaller and more suitable for high-density designs.
Plug-in relay sockets are designed for relays that need quick replacement. The relay can be inserted into or removed from the socket without disconnecting every wire. In control panels where downtime must be reduced, this structure is very useful.
Need relay sockets for control panels, automation cabinets, or industrial relay systems? Contact Us
Relay sockets are also selected according to pin number and contact arrangement. The pin layout must match the relay structure, otherwise the relay cannot be installed or wired correctly.
8-pin relay sockets are commonly used for general-purpose relays and basic control circuits. They are suitable for simple switching applications where the number of contacts is limited and the wiring structure is not too complex.
11-pin relay sockets are often used with relays that require more contact combinations or additional control functions. They are common in industrial automation, timing circuits, and equipment control systems.
14-pin relay sockets are used when the relay has more poles or more complex contact arrangements. They are suitable for circuits that require multiple switching paths or more flexible control logic.
When choosing between 8-pin, 11-pin, and 14-pin relay sockets, buyers should not only check the pin count. They should also confirm the relay model, coil voltage, contact form, wiring diagram, and rated load.
The terminal type determines how wires are connected to the relay socket. In control panels, screw terminals are very common because they are easy to install and inspect. Spring terminals are useful for vibration environments and faster wiring. Solder terminals are more common in electronic or PCB applications, while quick-connect terminals are suitable for applications where fast assembly is required.
For complete control panel wiring, relay sockets are usually used together with terminal blocks, signal modules, and cables. You can also explore NCR electrical connection products under the main product category: NCR products.
The first factor is relay compatibility. The socket must match the relay type, pin number, contact arrangement, and rated electrical parameters. A relay may look similar from the outside, but its pin layout and wiring diagram may be different. Using the wrong socket can lead to incorrect wiring or unstable operation.
The second factor is rated voltage and current. The relay socket must be able to handle the working current of the circuit. If the current rating is too low, the socket terminals may overheat, especially in continuous operation or high-load switching conditions.
The third factor is mounting method. DIN rail sockets are usually preferred for standard control cabinets, while PCB sockets are better for circuit board applications. Panel-mounted sockets may be selected when the equipment structure requires direct mechanical fixing.
The fourth factor is wiring and maintenance. If the relay is likely to be replaced during service, a plug-in socket can reduce maintenance time. If the wiring environment has vibration, buyers should pay attention to terminal stability and contact reliability.
The fifth factor is panel space. In compact control cabinets, socket size and wiring direction can affect the entire layout. A good relay socket design should support clean wiring while leaving enough space for heat dissipation and maintenance access.
In a real control panel, the relay socket rarely works alone. It is usually part of a larger wiring and control system. The relay socket holds the relay and connects it to the control circuit. Terminal blocks manage the incoming and outgoing field wiring. PLC interface modules and cables help connect controller signals to the relay and field devices.
This is why control panel builders often evaluate the whole connection system instead of choosing the relay socket separately. A clean control panel design should make wiring clear, reduce troubleshooting time, and allow technicians to replace components without disturbing unrelated circuits.
For automation and control panel projects, NCR provides relay-related components and smart meter components for different industrial and electrical applications. You can browse the main relay category here: relay products.
Relay sockets are widely used in PLC control cabinets, motor control panels, HVAC systems, machine automation equipment, power distribution panels, and safety control circuits. In PLC cabinets, relay sockets help isolate and transfer control signals. In motor control systems, they support switching and auxiliary control. In HVAC equipment, they are often used for fan, pump, compressor, and protection circuits.
For machine builders, relay sockets also improve serviceability. When a relay reaches the end of its service life, the maintenance team can replace it quickly without rebuilding the wiring. This is valuable for factories where production downtime has a direct cost.
One common problem is loose wiring. If the terminal screw is not tightened properly or the wire size is not suitable, the connection may become unstable. This can cause intermittent faults that are difficult to diagnose.
Another common problem is overheating. Overheating may occur when the current exceeds the socket rating, the terminal contact is poor, or the relay operates in a high-temperature cabinet. To avoid this, buyers should check the rated current, wire size, ambient temperature, and installation spacing.
Pin mismatch is also a frequent issue. Relays with different pin layouts may not be interchangeable even if they look similar. Before replacement, the relay model and socket wiring diagram should always be confirmed.
Vibration can also affect socket reliability. In equipment that operates with motors, pumps, or moving machinery, the socket should provide secure relay fixing and stable terminal connection.
DIN rail relay sockets are among the most common types used in industrial control panels because they are easy to install, organize, and maintain inside standard electrical cabinets.
The choice depends on the relay model, contact arrangement, coil voltage, and wiring diagram. The socket pin number must match the relay structure exactly.
DIN rail sockets are better for standard cabinet layouts and modular wiring. Panel-mounted sockets are better when the relay needs to be fixed directly to a machine panel or custom structure.
Yes. Relay sockets are often used in PLC control systems to connect controller signals with field devices, loads, and auxiliary circuits.
Overheating is usually caused by excessive current, loose terminal connection, poor contact pressure, wrong wire size, or insufficient heat dissipation inside the control panel.
Relay sockets used in control panels include DIN rail sockets, panel-mounted sockets, PCB sockets, plug-in sockets, and different pin-layout bases such as 8-pin, 11-pin, and 14-pin types. The best choice depends on relay compatibility, mounting method, terminal style, current rating, wiring space, and maintenance needs.
For industrial buyers, relay socket selection should be connected with the whole control panel design. A suitable socket can make wiring cleaner, relay replacement easier, and system maintenance more efficient.
