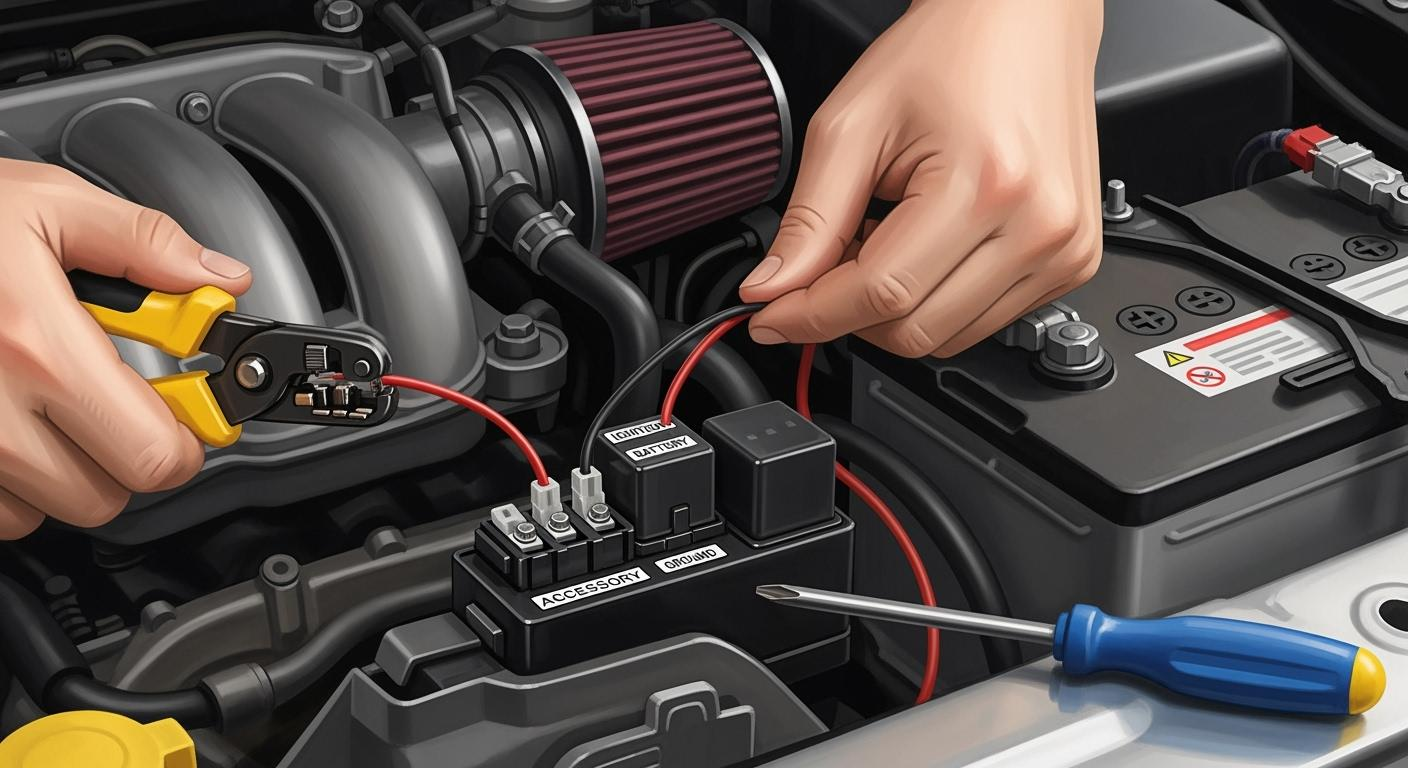

Step-by-Step Guide to Wiring a Relay Harness for Cars
Wiring a relay harness for a car starts with understanding how each wire connects to the relay and the vehicle’s components. Many people use a Relay Harness to keep wires organized, protect them from damage, and improve the car’s reliability. The table below shows key benefits:
Benefit | Description |
Organization | Keeps wires neat and reduces problems that can affect safety. |
Protection | Shields wires from heat, water, and vibrations, making the system more reliable. |
Longevity | Durable harnesses mean fewer repairs and a longer-lasting electrical system. |
NCR’s Magnetic Latching Relay sets a high standard for energy efficiency and control in automotive relay applications. Anyone can feel confident tackling this project with the right tools and some patience.
· Wiring a relay harness keeps wires organized, protects them from damage, and improves the car's reliability.
· Always gather the right tools and materials before starting. This preparation makes the wiring process smoother and safer.
· Follow safety precautions, such as disconnecting the battery and inspecting wires for damage, to avoid electrical hazards.
· Plan your wiring layout carefully to prevent issues. Keep wires away from heat sources and moving parts.
· Test the circuit after wiring to ensure everything works correctly. A visual inspection and using a multimeter can help catch problems early.
A relay works as an electronically operated switch in a car’s electrical system. It lets a low current circuit control a high current circuit, which helps manage electrical loads efficiently.
A relay is essentially a switch that is operated electrically rather than mechanically. They work by activating an electromagnet to pull a set of contacts to make or break a circuit.
People often use relays in cars for several reasons:
1. Control circuits using power from another source.
2. Automate power distribution.
3. Enable circuits to turn on and off at specific times.
4. Allow control of multiple circuits with different voltage types.
Relays use an electromagnet to move contacts and open or close a circuit. This design makes them reliable for handling different electrical tasks in vehicles.
Many types of relays appear in automotive and industrial settings. Each type has unique features and fits specific jobs. The table below highlights the most common types:
Type of Relay | Features | Common Applications |
Electromechanical Relays | Uses mechanical connections to open/close circuits; reliable and durable. | Cooling fans, lamps, starters. |
Time Delay Relays | Delays circuit operation in response to a control signal. | Headlight delay, interior illumination. |
Micro Relays | Compact design for space-saving; comparable performance to larger relays. | Power window controls, door locks. |
Power Relays | Designed for high current loads; robust structure for heavy electrical use. | Power steering, electric cooling fans. |
Each type serves a different purpose, so choosing the right relay helps ensure the car’s electrical system works smoothly.
Relay modules and harnesses make wiring easier and safer in modern vehicles.
· Relay boxes provide enhanced electrical system protection through fuses and circuit breakers.
· They optimize power distribution, minimizing voltage drops and ensuring consistent performance.
· Relay modules improve system efficiency by controlling the flow of power, conserving energy, and reducing unnecessary power consumption.
Wiring harnesses also help by organizing wires into secure bundles. This setup reduces the chance of short circuits and makes installation faster. Harnesses can even improve fuel usage by keeping electrical performance at its best.
Getting ready for relay wiring means gathering the right tools and materials. Most people find that having everything on hand makes the job smoother and safer. Here’s a handy checklist:
· Crimping tool for strong wire connections
· Heat gun to shrink tubing and protect wires
· Socket wrench set for mounting relay sockets
· Electrical tape to insulate connections
· Safety glasses and gloves for protection
· Solderless terminals for quick connections
· High-quality automotive wire for durability
· Switch panels to organize accessories
· Relays for managing high current loads
· Circuit breakers to prevent overloads
· Wiring and connector maintenance kit for repairs
· Wire stripper for easy wire preparation
Tip: Organizing your workspace before starting helps avoid mistakes and saves time.
Safety always comes first when working with car electrical systems. He should follow these steps to stay safe:
1. Learn about electrical hazards to avoid shocks or burns.
2. Keep water and metal objects away from the work area.
3. Disconnect the battery or power source before starting.
4. Know where the fire extinguisher is and keep flammable items away.
5. Inspect all cords and wires for damage before use.
Remember: Wearing safety gear and working in a dry area reduces risks.
Understanding relay specifications helps ensure compatibility with the car’s electrical system. The table below breaks down common specs:
Specification | Description |
Relay Type | Bosch-type ISO mini relay |
Terminal Configuration | 5 terminals, SPDT (Single-Pole Double-Throw) |
Amp Rating | 40 amps on switched output side |
Power Ratings | 30/20 and 40/30 amps available |
Grounding | Use same size ground cable as power side |
Wire gauge matters, too. For example, use 10 or 12 AWG from switch to relay, and 16 AWG or thinner for the coil. Checking these details helps prevent electrical problems and keeps the system running smoothly.
Before wiring a relay harness, everyone should know what each terminal does. Most automotive relays use standard terminal numbers. Here’s a quick reference:
Terminal or Contact | Identification |
85 | Relay coil - Negative |
86 | Relay coil - Positive |
87 | Common contact |
87a | Normally Closed (NC) contact |
87b | Normally Open (NO) contact |
30 | From battery Positive direct |
31 | Return to battery Negative or direct to ground |
A relay diagram helps users match these numbers to their wiring plan. Knowing the difference between a normally closed relay and a normally open relay makes setup easier.
Planning the wiring layout saves time and prevents problems. Drivers should:
· Keep wires away from heat sources and moving parts.
· Use heat insulation pads if wires must run near hot areas.
· Make sure the relay harness avoids water, dirt, and oil.
· Add enough fixing points to prevent sagging.
· Keep signal wires away from motors and speakers to avoid interference.
Tip: Maintain at least 25mm from moving parts and 125mm from exhaust pipes.
The coil side of a 12v dc relay controls when the relay switches. Connect terminal 86 to the positive wire, usually from the switch or controlled accessories. Attach terminal 85 to a solid ground on the chassis. This setup lets the relay respond to the control signal.
Now, connect the load side. Terminal 30 goes to the battery’s positive post. Terminal 87 connects to the device, like a light or fan. Always match the polarity and make sure the input terminals are correct. This step ensures the relay harness delivers power safely.
A relay harness keeps wires organized and protected. It groups all the connections for the relay in one place. This makes wiring a relay much easier and helps prevent shorts or loose wires. Many harnesses come with labeled wires, so users can follow the instructions without confusion.
After wiring, testing is key. Start with a visual inspection for damage or corrosion. Use a multimeter to check for continuity and coil resistance. Apply power and listen for a click. If needed, use a relay tester to confirm everything works. This step ensures the relay harness and all connections work as planned.
Wiring a relay harness in a car takes more than just connecting wires. People who want a reliable system should follow proven methods used by professionals. These best practices help keep the electrical system safe, efficient, and long-lasting.
Industry standards matter. Automotive experts recommend following guidelines that set the bar for quality and safety. The table below shows some important standards:
Standard | Scope | Importance |
IATF 16949 | Quality Management | Industry-wide automotive quality benchmark |
ISO 6722 | Insulation specifications | Ensures thermal and mechanical performance |
SAE J1128 | Low-voltage wiring | Common in body control and lighting circuits |
Choosing the right wire and cable for the relay harness is crucial. He should select wires that match the load and can handle tough conditions. Insulation and fire resistance keep the system safe, even when exposed to heat or vibration. Making solid electrical connections reduces resistance and voltage drop, which helps the relay work smoothly.
Tip: Always check the wire gauge and insulation rating before starting any wiring job.
Corrosion can ruin a good connection. People often use dielectric grease to protect connectors from moisture and air. Sealed or weatherproof connectors block water, dust, and chemicals, making the system last longer. Safe cleaning products remove dirt without harming the connectors. Regular system checks by a professional catch problems early and keep everything running well.
· Use dielectric grease for protection.
· Choose sealed or weatherproof connectors.
· Clean connectors with safe products.
· Schedule regular inspections.
A neat wiring layout also helps. He should bundle wires together and secure them away from moving parts and heat sources. Labeling wires makes future repairs easier. Following these best practices gives the relay harness a better chance to perform reliably for years.
Wiring a relay harness seems simple, but car owners often run into trouble by making small mistakes. These errors can lead to electrical problems, unreliable performance, or even safety risks. Let’s look at the most common mistakes and how to avoid them.
1. Improper Grounding
Many people forget to create a solid ground connection. He should always clean the grounding surface by removing paint or rust. A weak ground can cause the relay to malfunction or not work at all.
2. Using the Wrong Wire Size
Some owners use wires that are too thin for the current. Thin wires can overheat and may even melt. Always check the wire gauge and match it to the load. This step keeps the system safe and reliable.
3. Failing to Secure Connections Properly
Loose connections can cause intermittent failures. He should double-check every crimp and terminal. Secure connections help prevent shorts and keep the relay harness working for years.
Tip: Test the harness before installing it. A quick check can catch mistakes early.
· Mistakes Made When Building the Harness
He should use the correct wire size and color. Testing the harness before installation saves time and trouble.
· Improper Wire Routing
Routing wires near hot engine parts can damage insulation. He should keep wires away from high-temperature areas.
· Lack of Strain Relief
Wires need support at connection points. Without strain relief, wires can wear out or break.
· Using Inadequate Components
High-quality parts matter. Cheap connectors or wires can fail quickly and create safety hazards.
Note: Spending a little more on good components pays off in reliability and safety.
Avoiding these mistakes helps car owners build a relay harness that lasts. Careful planning and attention to detail make the difference between a smooth installation and a frustrating repair job.
Car enthusiasts who want to take their wiring projects to the next level can use a few advanced strategies. These techniques help boost performance, improve reliability, and make future maintenance easier.
1. Optimize Relay Placement
Placing the relay close to the device it controls, like headlights or fans, helps reduce power loss. Shorter wires mean less resistance and better performance. Drivers should also choose a mounting location that protects the relay from water, dirt, and heat.
2. Use Quality Components
High-quality clamps and connectors prevent corrosion and keep connections strong. Investing in good parts pays off with fewer repairs and a safer system.
3. Secure Mounting and Wire Routing
Mount the relay box securely to avoid vibration damage. When routing wires, follow the manufacturer’s guidelines. Keep wires away from sharp edges and moving parts. This step keeps the harness safe and organized.
4. Match the Relay to the Application
Always select a relay that matches the current needs of the device. Using the right rating prevents overheating and ensures smooth operation.
5. Regular Maintenance
Regular checks keep the system running well. Inspect wires and connectors for wear or damage. Clean off any dirt or debris that could cause problems. A little maintenance goes a long way.
Here’s a quick table to sum up these techniques:
Technique | Description |
Mounting Location | Choose a spot that’s easy to reach and shields from the elements. |
Secure Mounting | Fasten the relay box tightly to prevent vibration issues. |
Wire Routing | Follow specs for safe, neat wiring. |
Quality Components | Use top-grade clamps and connectors to avoid corrosion. |
Regular Maintenance | Check and clean parts often for best performance. |
Troubleshooting | Use diagnostic tools to find and fix problems quickly. |
Tip: Adding relays for high-power accessories, like upgraded headlights, can protect switches and improve safety.
These advanced tips help anyone build a wiring system that stands up to daily use and tough conditions.
Car owners sometimes face problems with relay wiring. These issues can stop accessories from working or cause strange behavior in the electrical system. Spotting the signs early helps prevent bigger headaches down the road.
Common symptoms of relay wiring trouble include:
· Electrical parts, like lights or fans, refuse to turn on. This often means the relay is stuck open.
· The relay box makes a clicking sound, but the connected device does nothing.
· The relay feels hot to the touch, which can point to internal damage.
· Fuses keep blowing, hinting at power surges or wiring faults.
· Accessories work off and on, showing inconsistent relay operation.
When a relay circuit fails, drivers can follow these steps to find the problem:
1. Connect the battery’s positive terminal to relay terminal 86 and the negative terminal to 85.
2. Listen for a click. That sound means the relay coil is working.
3. Use a test light between terminals 30 and 87. If the light turns on when the relay activates, the contacts are good.
4. If there’s no click or light, the relay probably needs replacing.
Tip: Always disconnect the battery before testing or replacing a relay. This keeps everyone safe from accidental shocks.
Many relay problems come from how the system is set up or used. The table below shows frequent causes:
Cause | Description |
Temperature Effects | High or low temperatures affect relay function. |
Continuous Load Current | Heavy current draws create heat and stress. |
Switching Current | Sudden current changes can damage contacts. |
Load Voltage | Wrong voltage can stop the relay from working. |
Control Parameters | Weak control signals lead to poor performance. |
Load Type | Different loads need different relay designs. |
Cycle Rate | Fast switching wears out contacts quickly. |
Connection Method | Bad connections add resistance and cause faults. |
Drivers who check these areas often solve relay wiring problems quickly. A careful approach saves time and keeps the car’s electrical system running smoothly. If problems continue, replacing the relay with a high-quality model, like NCR’s Magnetic Latching Relay, can improve reliability and efficiency.
Wiring a relay harness helps car owners boost safety and reliability. They should remember these steps:
1. Disconnect the battery.
2. Study the wiring diagram.
3. Plan the harness route.
4. Secure fuses and grounds.
5. Connect power wires.
6. Bundle and secure the harness.
7. Test everything.
NCR’s Magnetic Latching Relay stands out for its energy efficiency, reliability, and fast switching.
Benefit | Description |
Energy Efficiency | Reduces power use and extends relay life. |
Reliability | Keeps state without power, adds a fail-safe feature. |
Fast Switching | Responds quickly for safety-critical systems. |
Long Service Life | Fewer moving parts mean less maintenance. |
They should always double-check connections. Regular checks catch loose wires and keep systems safe. Have a story or question? Share it below!
A relay harness keeps wires organized and protected. It reduces the risk of shorts and overheating. Drivers get better reliability and fewer electrical problems.
Yes! Most people can install a relay harness with basic tools. Clear instructions and labeled wires make the process easier. Safety gear helps prevent accidents.
NCR’s Magnetic Latching Relay uses a magnetic field to hold its state. It only uses power during switching. This design saves energy and boosts system efficiency.
A relay may click but fail if the contacts are dirty or damaged. Weak connections or wrong wiring can also cause problems. Checking each terminal helps find the issue.
