Availability: | |
---|---|

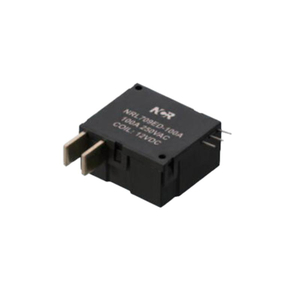

Characteristic
> Small size, 16A/20A switching capability.
> Low coil consumption, ultra-low temperature rise.
> Low contact resistance.
> Strong anti-shock and anti-vibration capability.
> Outline size: 29×12.7×15.7mm.
> UL Approved
Ordering Information
① Latching Relay | |
② Part Number | |
③ Pins Pitch WX1=3.5mm; WX2=5.0mm | |
④Coil Voltage | |
⑤D= Double Coil; S= Single Coil |
Characteristics
Insulation resistance | 1000MΩ (500VDC) | |
DielectricStrength | BetweenCoil&Contacts | 4000VAC 1min |
Between Open Contacts | 1000VAC 1min | |
Operate Time | 10msec. Max. | |
Release Time | 10msec. Max. | |
Shockresistance | Functional | 98m/S2 |
Destructive | 980m/S2 | |
Vibration resistance | 10~55Hz 1.5mm | |
Humidity | 5-85%RH | |
Ambient temperature | -40~+85℃ | |
Temination | PCB | |
Unit weight | 11g | |
Constrution | Sealed |
Contact Data
Contact form | 1A/1B |
Contact material | AgSnO2 |
Contact resistance(1A 6VDC) | Max: 20mΩ |
Contact Rating | 16A 250VAC、20A 250VAC |
Max. Switching Current | 20A |
Max. Switching Voltage | 250VAC |
Max. Switching Power | 5000VA |
Mechanical life | 1×106 |
Electrical life (Resistive/1s on、9s off) | 16A 1×105 20A 2×104 |
Coil
Coil power | Single coil: 0.5W Double coil: 1.0W |
Coil Data
(VDC) Rated Voltage | (VDC) Pick-up voltage | (ms) Pulse Duration | Coil Resistance |
Single coil | |||
5 | ≤ 3.75 | ≥ 50 | 50±10% |
9 | ≤ 6.75 | ≥ 50 | 162±10% |
12 | ≤ 9 | ≥ 50 | 288±10% |
24 | ≤ 18 | ≥ 50 | 1152±10% |
Double coil | |||
5 | ≤ 3.75 | ≥ 50 | 2×25±10% |
9 | ≤ 6.75 | ≥ 50 | 2×81±10% |
12 | ≤ 9 | ≥ 50 | 2×144±10% |
24 | ≤ 18 | ≥ 50 | 2×576±10% |
Note: Special ordering for other coil voltage.
Typical Application
Prepayment Energy Meter; AMR System;
Compound Switch; Automatic Control System
Circuit Diagram
