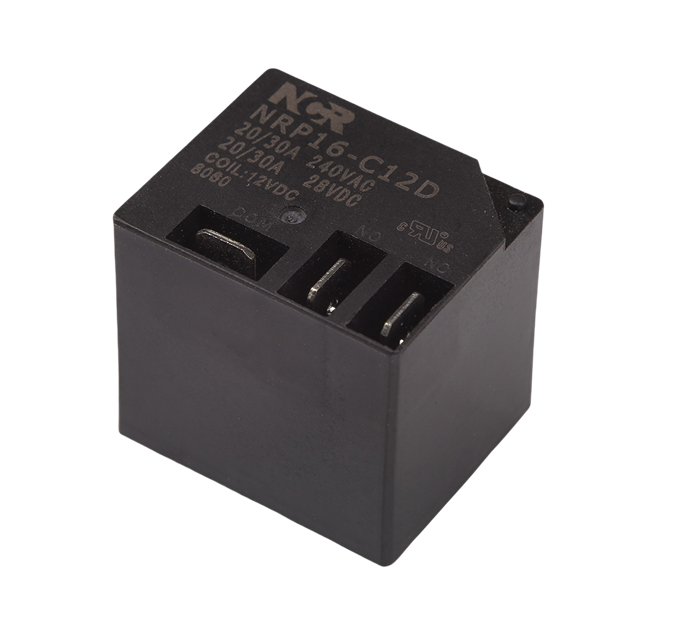

● High switching capacity - 30A for 1 Form A
● Fasten connection pins
● Sealed type available
● UL/C-UL recognized

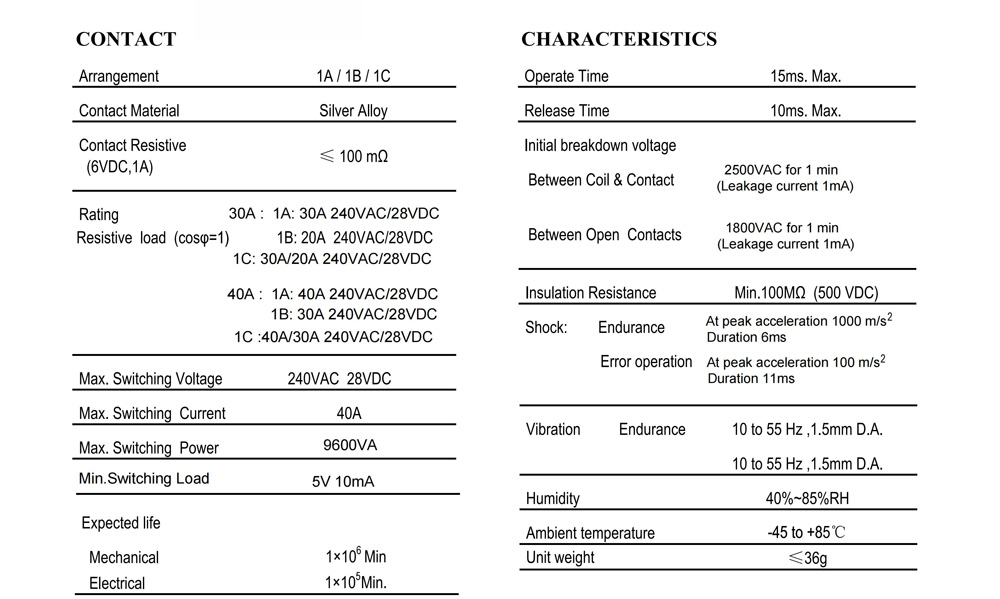

CONTACT | CHARACTERISTICS |
Arrangement 1A / 1B / 1C | Operate Time 15 ms. Max. |
Contact Material Silver Alloy | Release Time 10 ms. Max. |
Contact Resistive ≤ 100 mΩ | Initial breakdown voltageBetween Coil & Contact 2200VAC (50/60Hz)for 1 min.Between Open Contacts 1500VAC (50/60Hz)for 1 min. |
Rating 1A: 30A 240VAC/28VDCResistive load (cosφ=1) 1B: 20A 240VAC/28VDC1C: 20A 240VAC/28VDC | |
Insulation Resistance Min.100MΩ (500 VDC) | |
Max. Switching Voltage 250VAC 30VDC | Shock: Endurance 10GDamage 100G |
Max. Switching Current 30 A | |
Max. Switching Power 6000VA / 560W | Vibration Endurance 10 to 55 Hz ,1.5mm D.A.Damage 10 to 55 Hz ,1.5mm D.A. |
Expected lifeMechanical 1×10 6 MinElectrical 1×10 5 Min. | Humidity 40%~85%RH |
Ambient temperature -40 to +70℃ | |
Unit weight ≤36g |
ORDERING INFORMATION
| ① Series:Miniature p.c.b Relay |
② Part No. | |
③ Contact Form:C=1C/O; A = N/O; B= N/C | |
④ Coil Voltage: 12D= 12Vdc 24D= 24Vdc |
● High switching capacity - 30A for 1 Form A
● Fasten connection pins
● Sealed type available
● UL/C-UL recognized

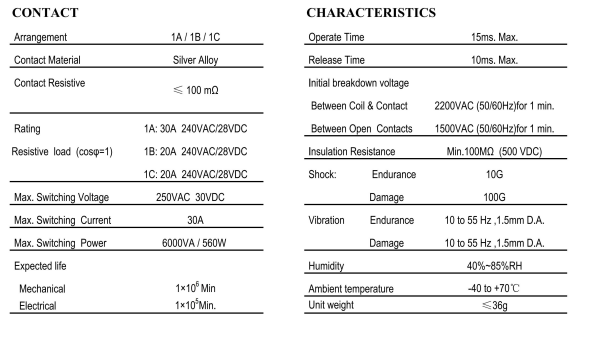

CONTACT | CHARACTERISTICS |
Arrangement 1A / 1B / 1C | Operate Time 15 ms. Max. |
Contact Material Silver Alloy | Release Time 10 ms. Max. |
Contact Resistive ≤ 100 mΩ | Initial breakdown voltageBetween Coil & Contact 2200VAC (50/60Hz)for 1 min.Between Open Contacts 1500VAC (50/60Hz)for 1 min. |
Rating 1A: 30A 240VAC/28VDCResistive load (cosφ=1) 1B: 20A 240VAC/28VDC1C: 20A 240VAC/28VDC | |
Insulation Resistance Min.100MΩ (500 VDC) | |
Max. Switching Voltage 250VAC 30VDC | Shock: Endurance 10GDamage 100G |
Max. Switching Current 30 A | |
Max. Switching Power 6000VA / 560W | Vibration Endurance 10 to 55 Hz ,1.5mm D.A.Damage 10 to 55 Hz ,1.5mm D.A. |
Expected lifeMechanical 1×10 6 MinElectrical 1×10 5 Min. | Humidity 40%~85%RH |
Ambient temperature -40 to +70℃ | |
Unit weight ≤36g |
ORDERING INFORMATION
| ① Series:Miniature p.c.b Relay |
② Part No. | |
③ Contact Form:C=1C/O; A = N/O; B= N/C | |
④ Coil Voltage: 12D= 12Vdc 24D= 24Vdc |
